Test E, Inspection Of Door Open Detection Switch Circuit
Test E, Inspection Of Door Open Detection Switch Circuit

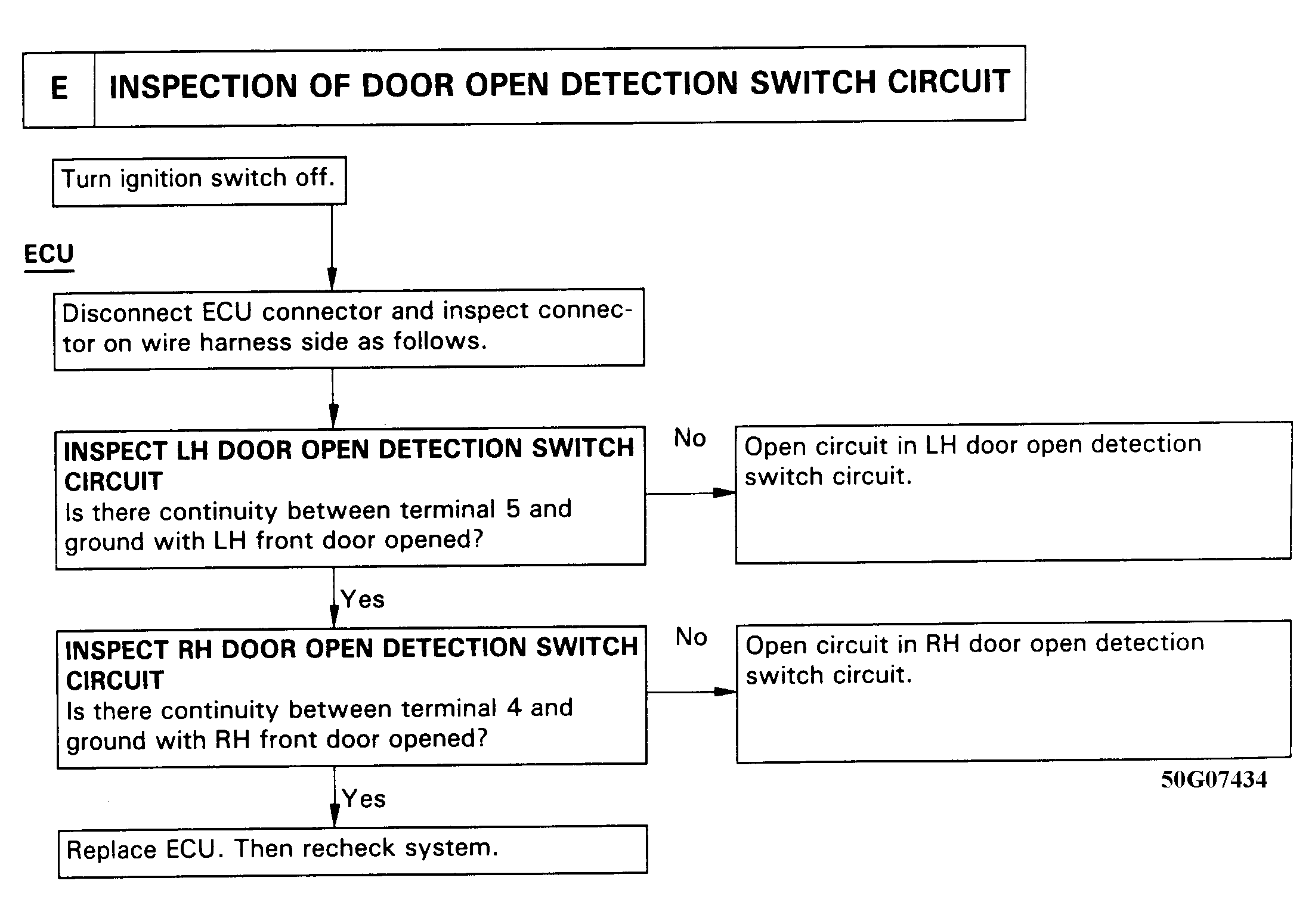

Fig 1: Test E, Inspection of Door Open Detection Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
