Computer Circuit

Disconnect the connector from the computer. Inspect the circuits on the wire harness side of the connector. See Fig 1and Figure .

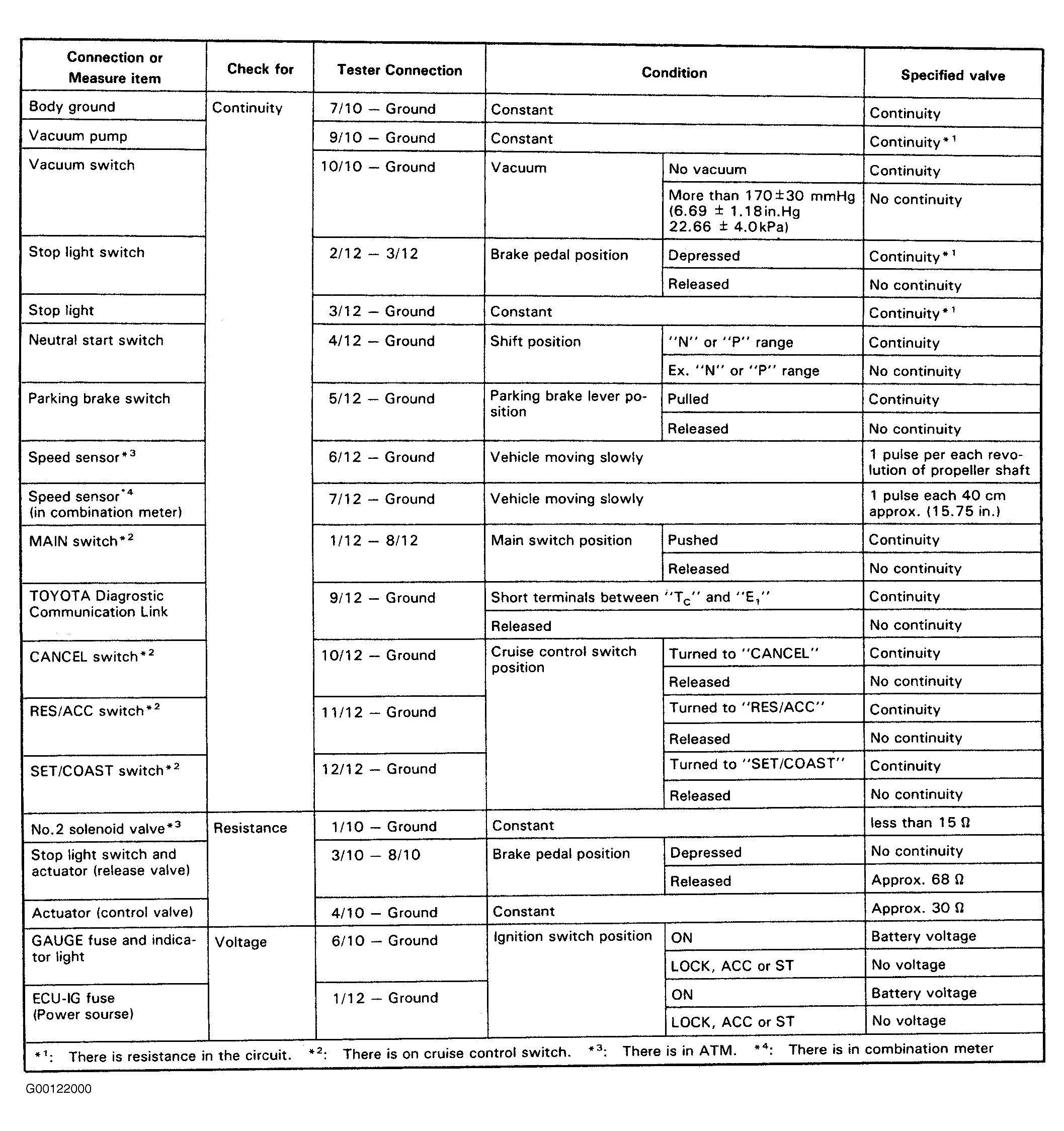

Fig 1: Testing Computer Circuit Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
