Component Testing: Switches: Notes

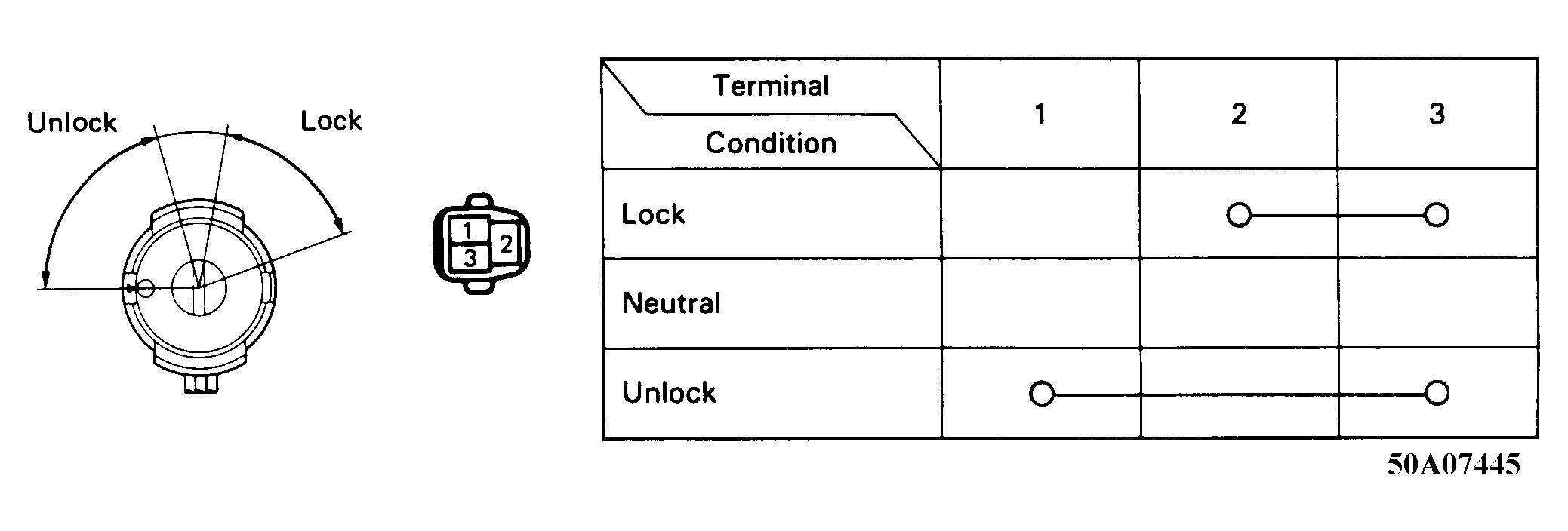

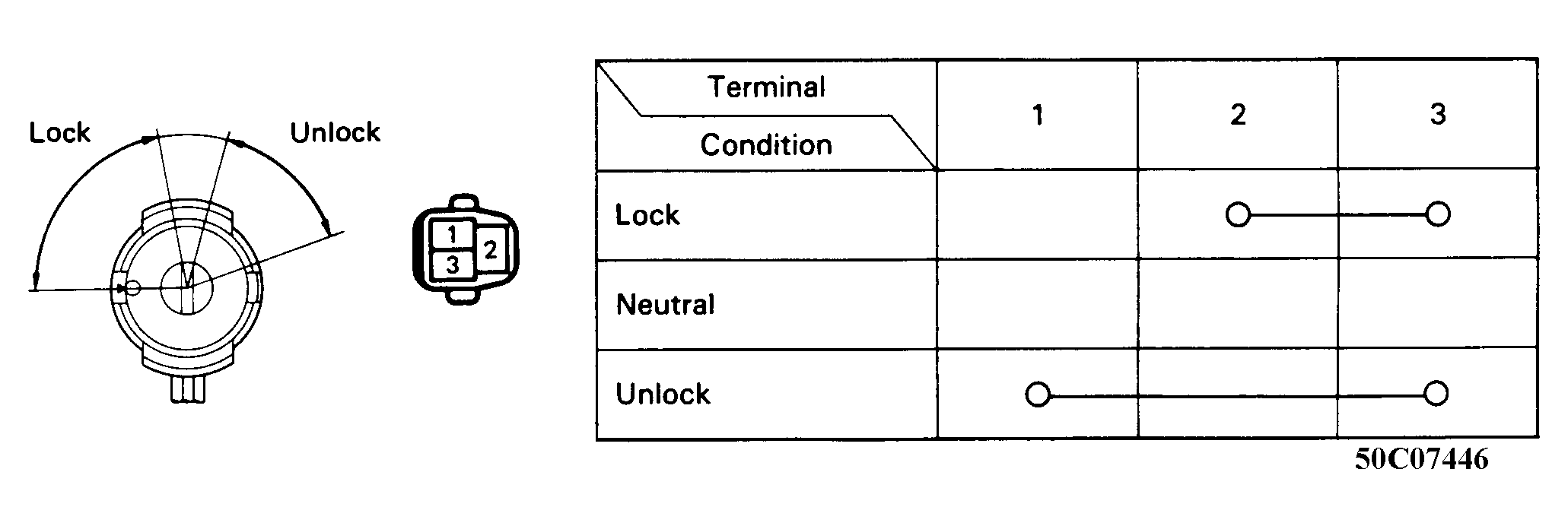

Fig 1: Front Door LH Key Lock & Unlock Switch/Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Front Door RH Key Lock & Unlock Switch/Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

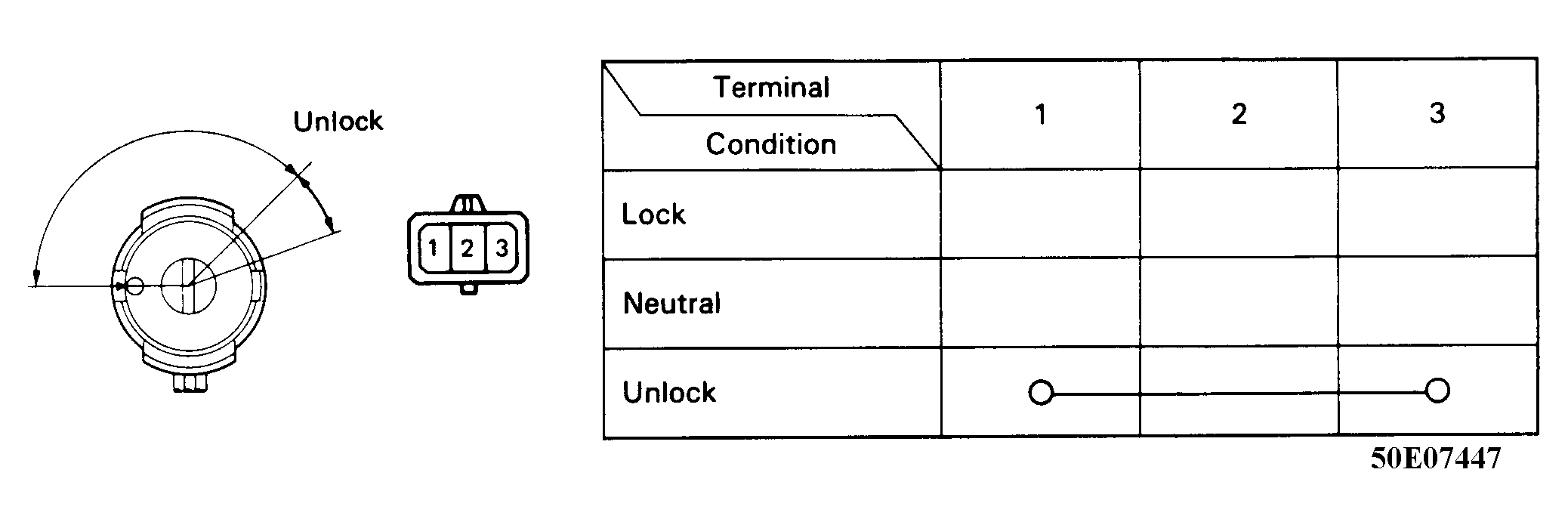

Fig 3: Luggage Door Key Unlock Switch/Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

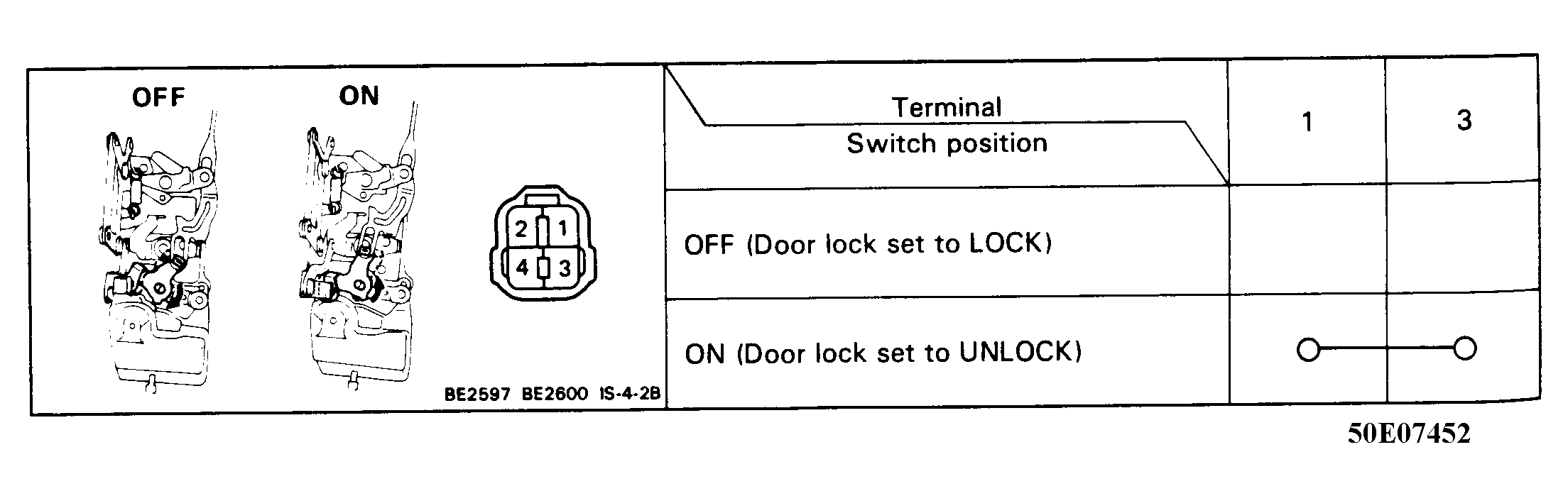

Fig 4: Door Unlock Detection Switch/Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

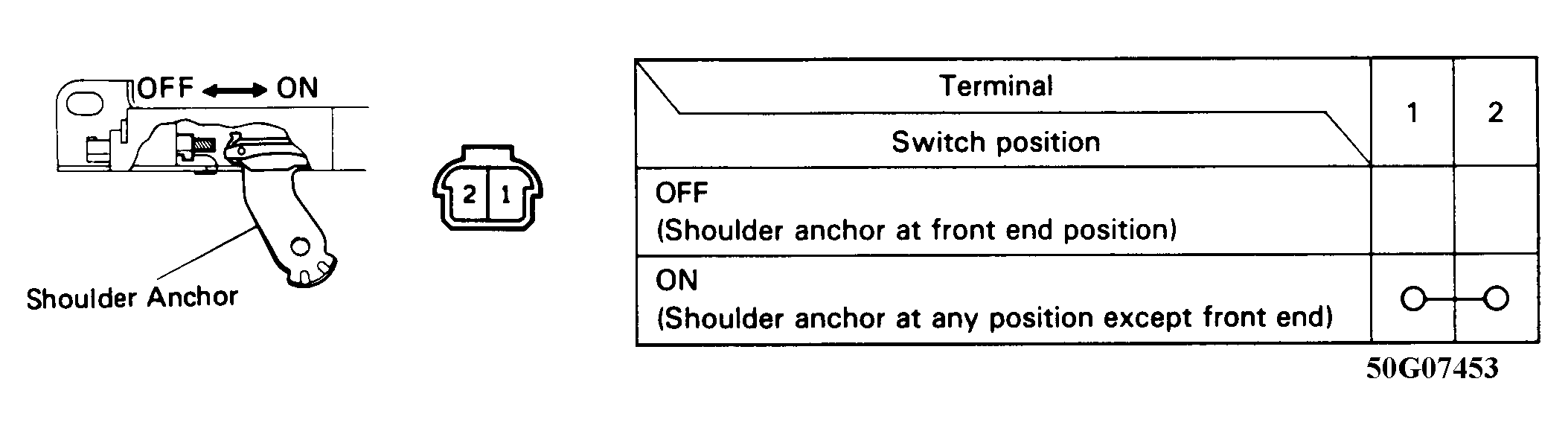

Fig 5: Door Open Detection Switch/Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

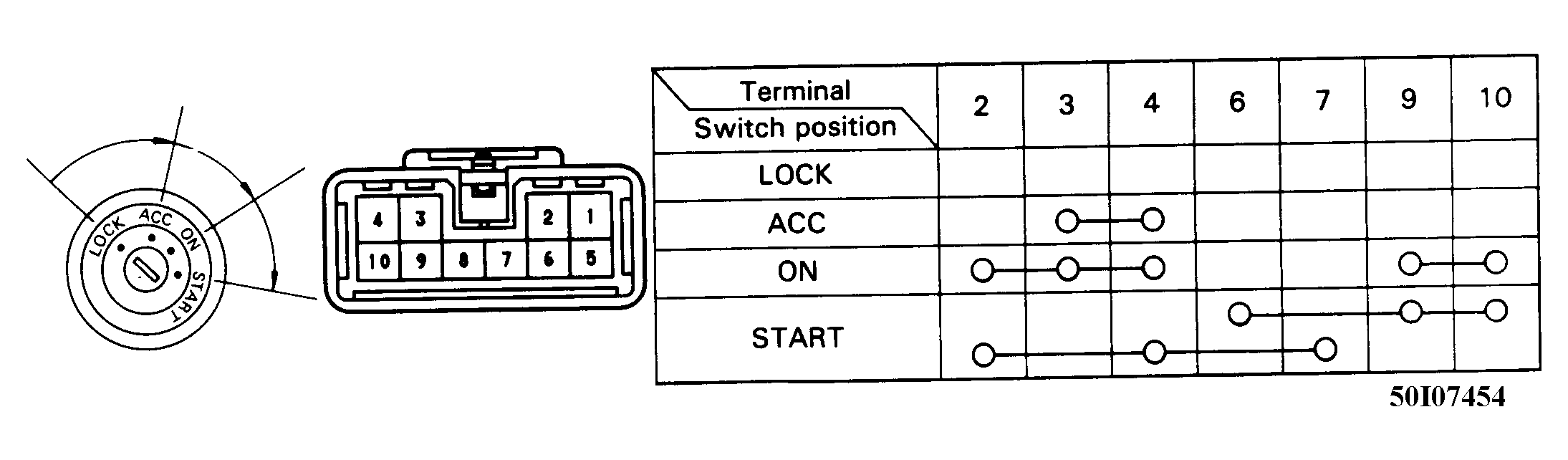

Fig 6: Ignition System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

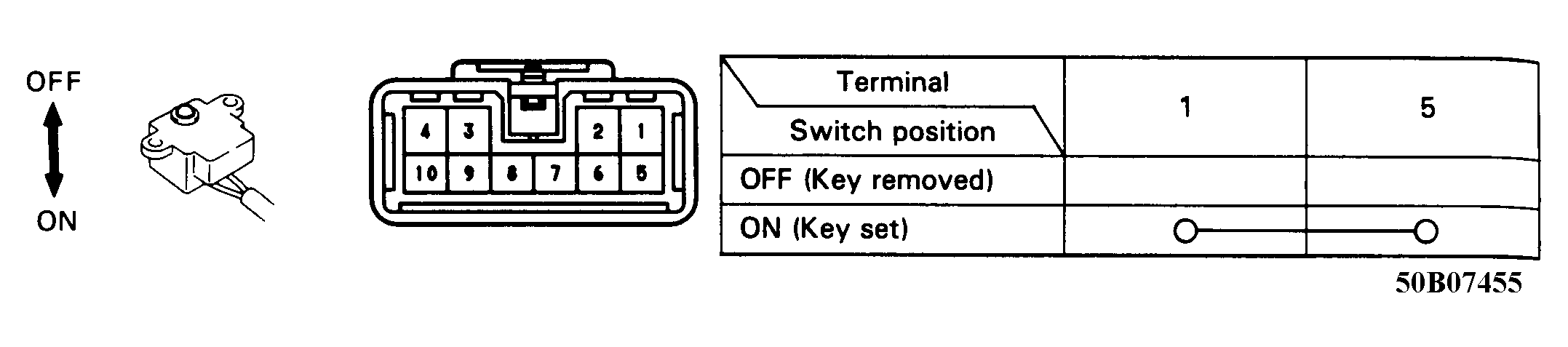

Fig 7: Key Unlock Warning Switch

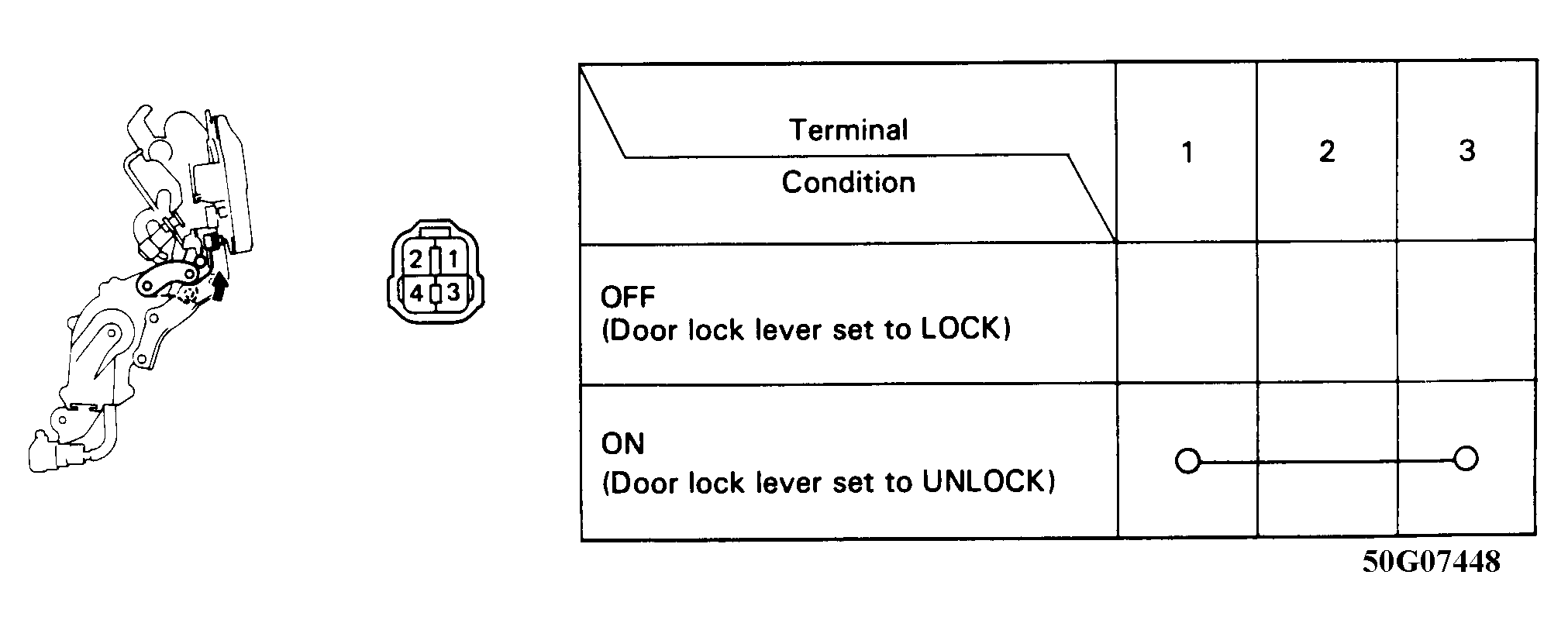

Fig 8: Rear Door Unlock Detection Switch/Continuity

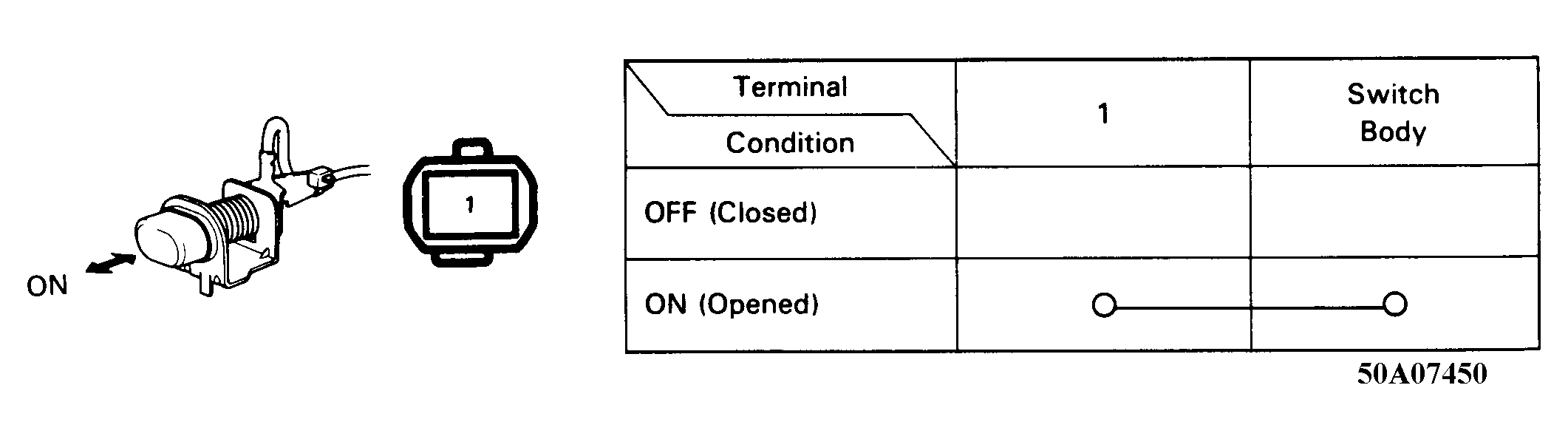

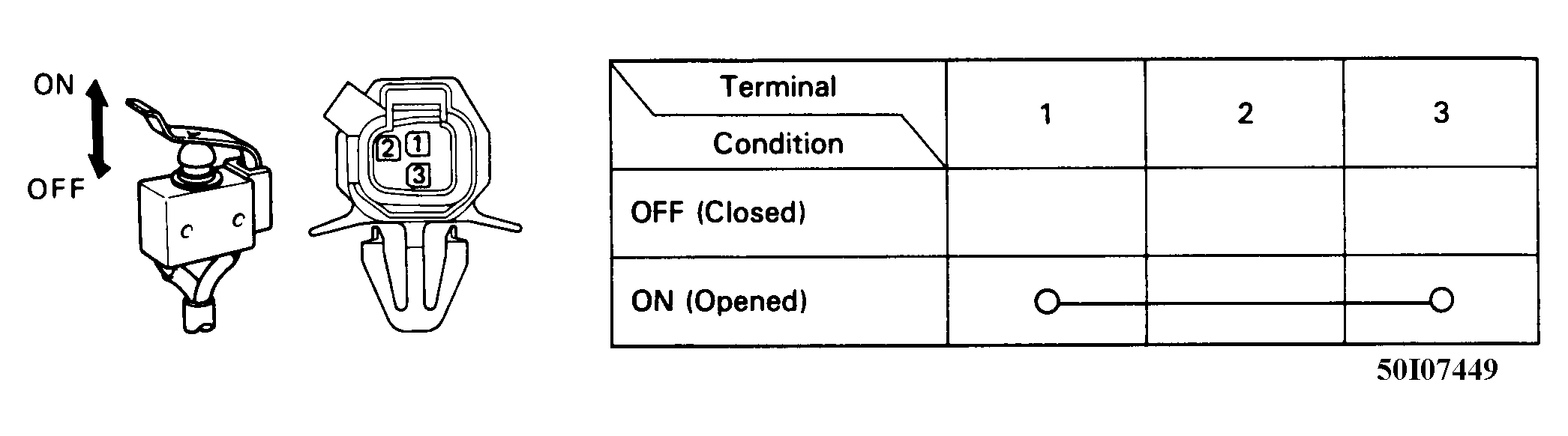

Fig 9: Engine Hood Courtesy Switch

Fig 10: Luggage Door Courtesy Switch
