Test 5 Or Code 22 - Coolant Temp Sensor Signal (4A-FE & GE)

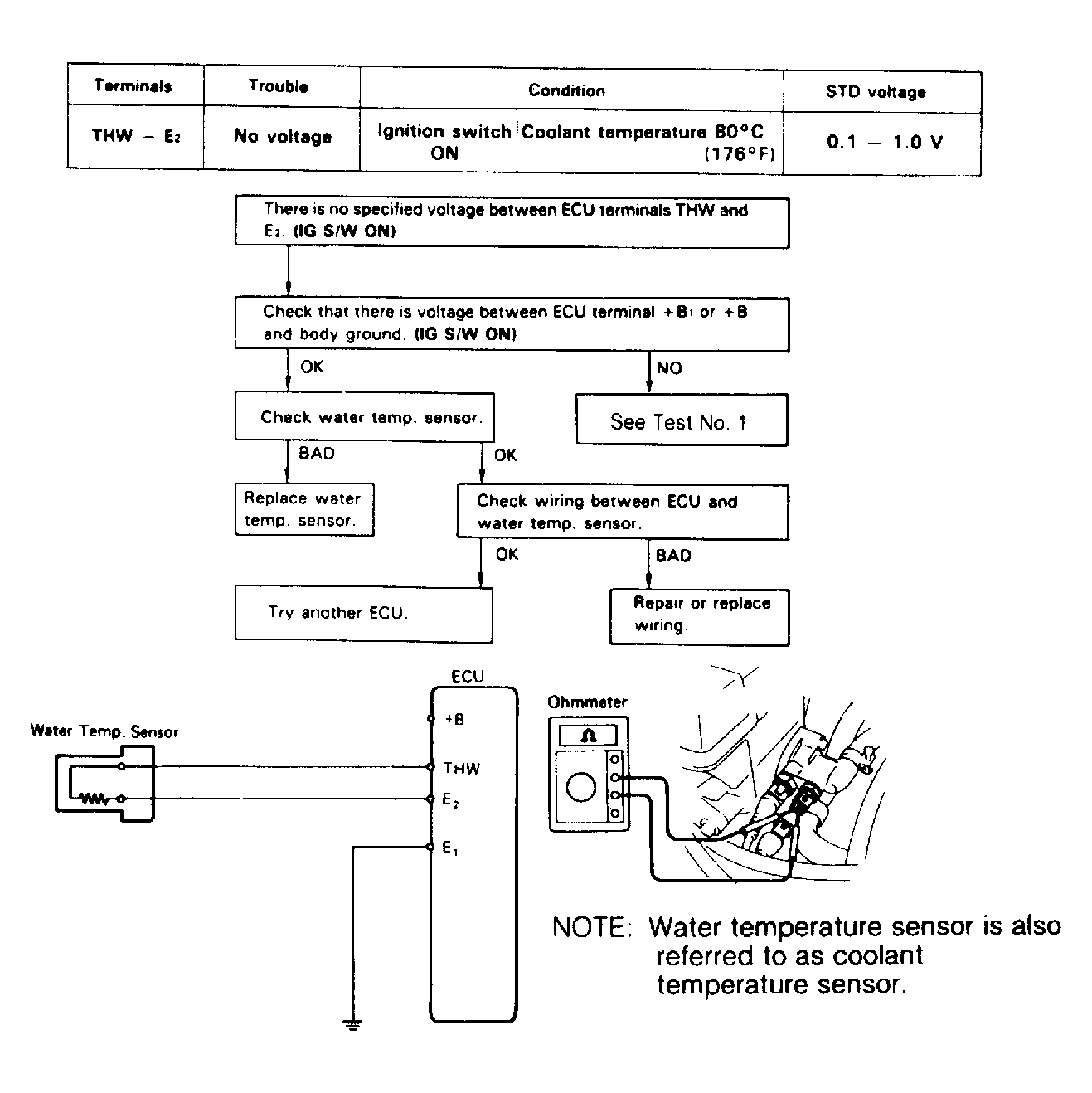

Fig 1: 4A-FE Test No.5 or Code 22 Diagram & Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

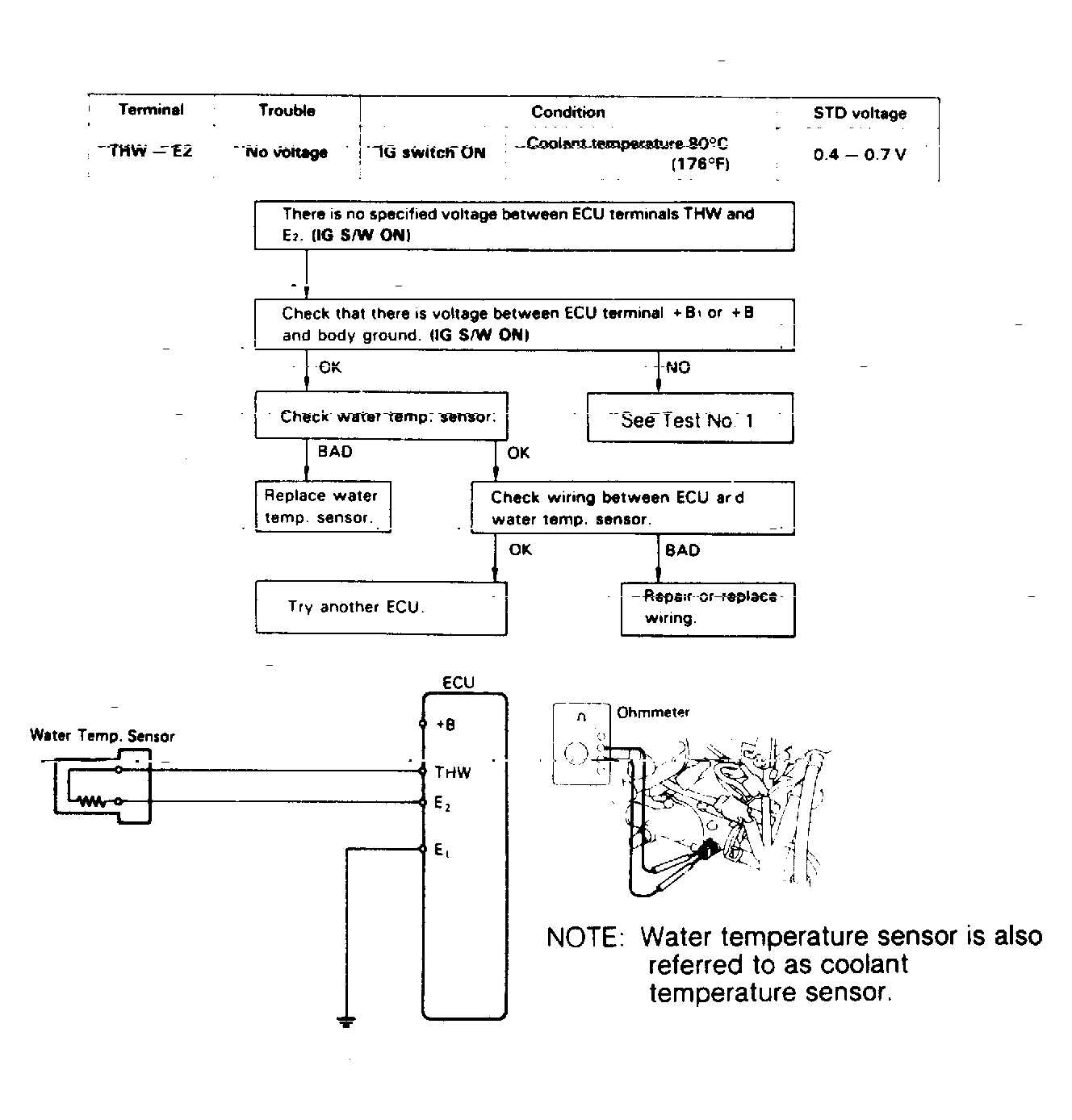

Fig 2: 4A-GE Test No.5 or Code 22 Diagram & Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
