Corolla Base, Standard, C52
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Test 2 - Ecu Power Source (4A-FE & 4A-GE)
Test 2 - Ecu Power Source (4A-FE & 4A-GE)

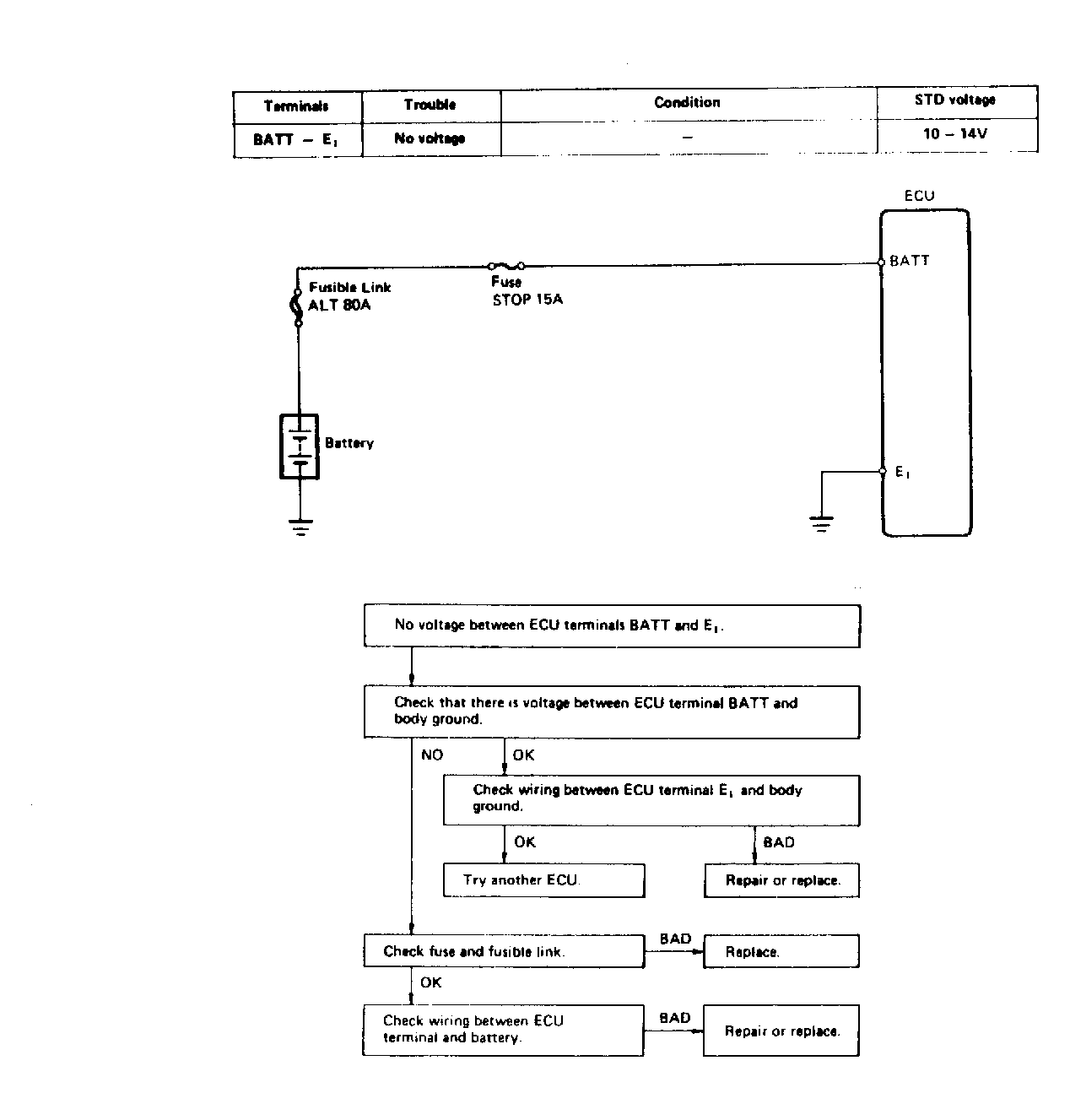

Fig 1: 4A-FE & 4A-GE Test No. 2 Diagram & Flow Chart
