Test I: Inspection Of Neutral Start Switch Circuit

For test procedure, refer to illustration. See Fig 1. For connector terminal identification, see Figure.

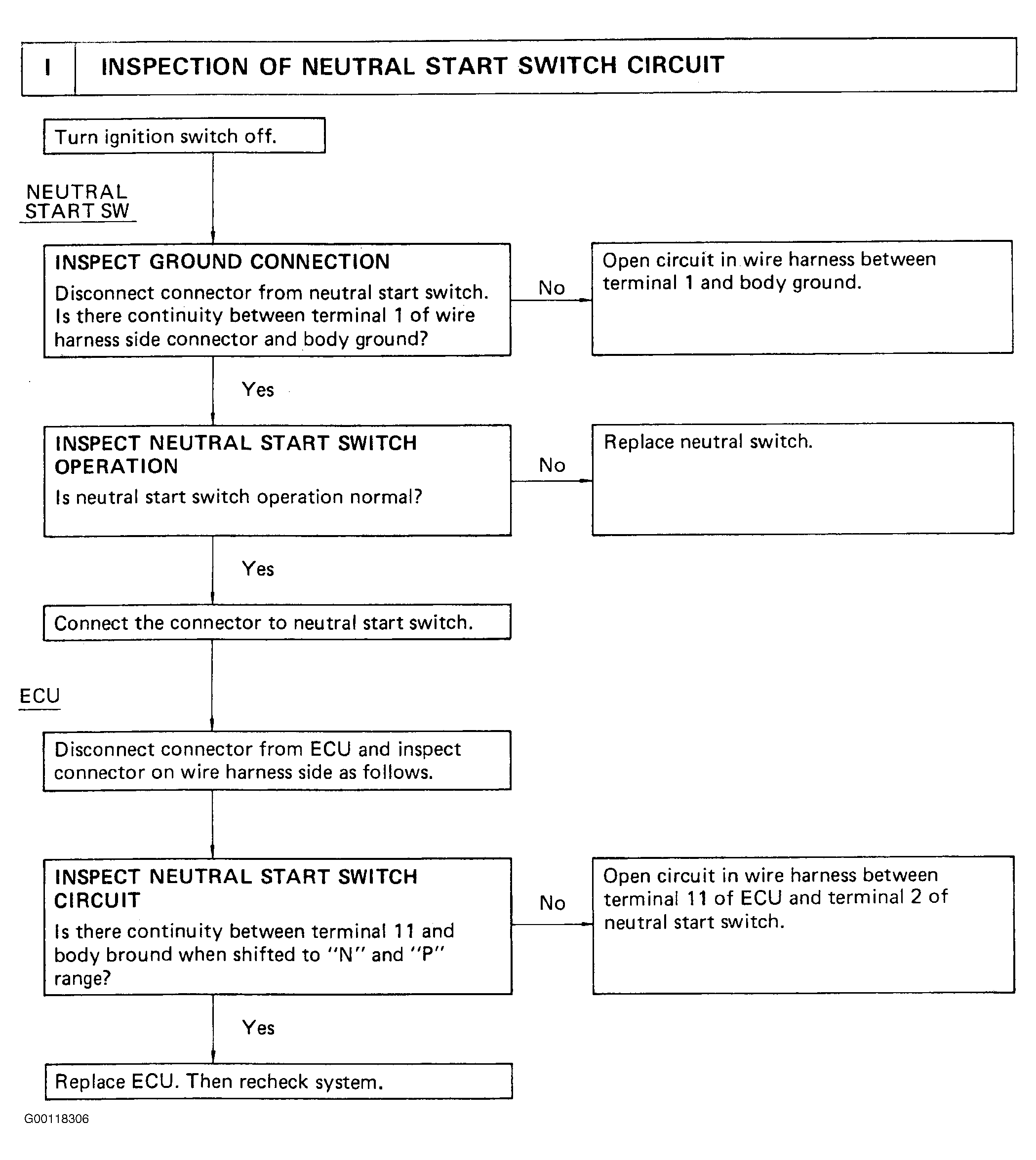

Fig 1: Test I: Inspection Of Neutral Start Switch Circuit (Auto. Trans.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
