Test E: Inspection Of Speed Sensor Circuit
NOTE:
For information on removing instrument cluster, see INSTRUMENT CLUSTER (CELICA & SUPRA)
under REMOVAL & INSTALLATION in 1990 TOYOTA - INSTRUMENT PANEL article.

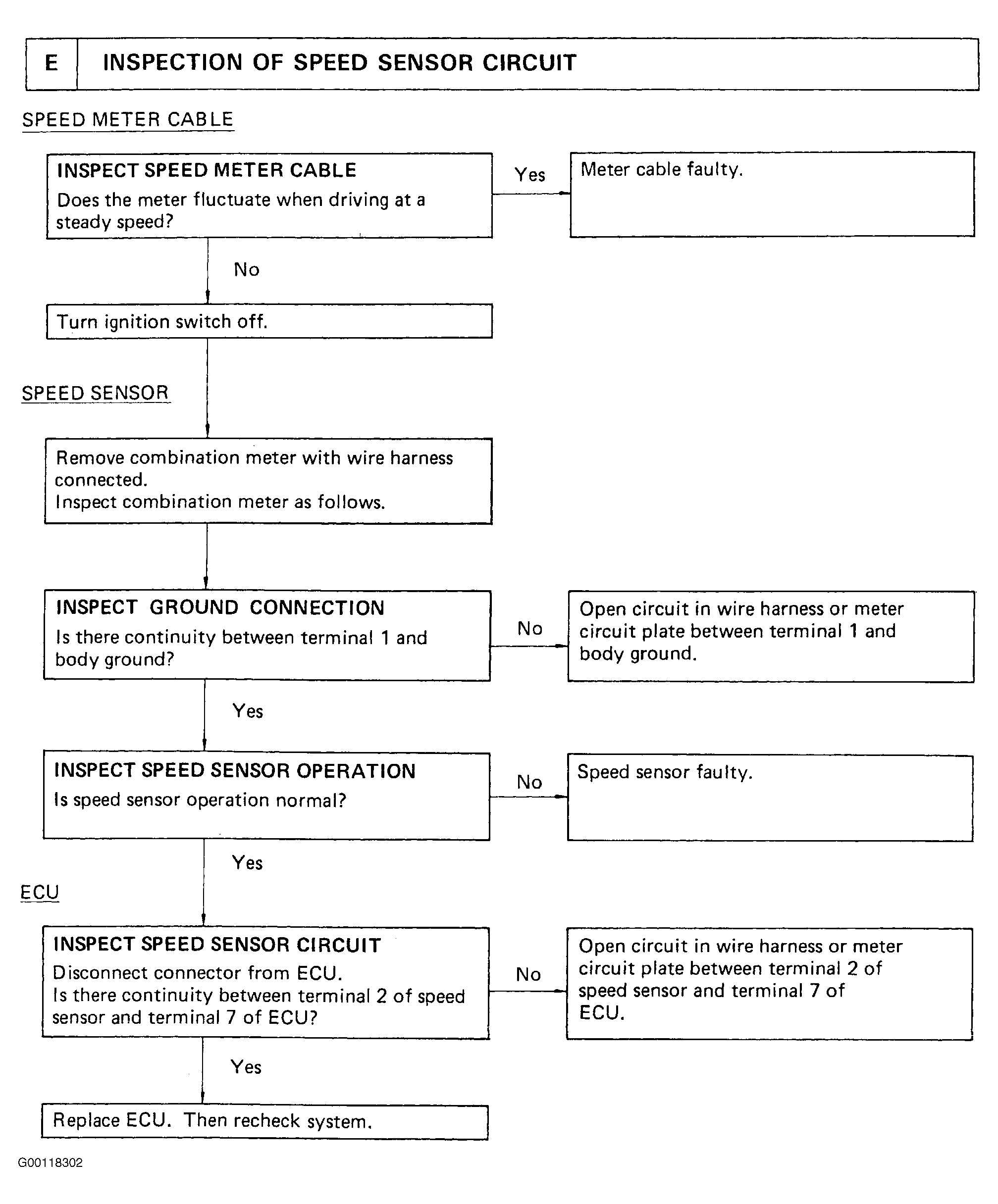

For test procedure, refer to illustration. See Fig 1. For connector terminal identification, see Figure.
