Test B: Inspection Of Set/Coast Switch Circuit

For test procedure, refer to illustration. See Fig 1. For connector terminal identification, see Figure.

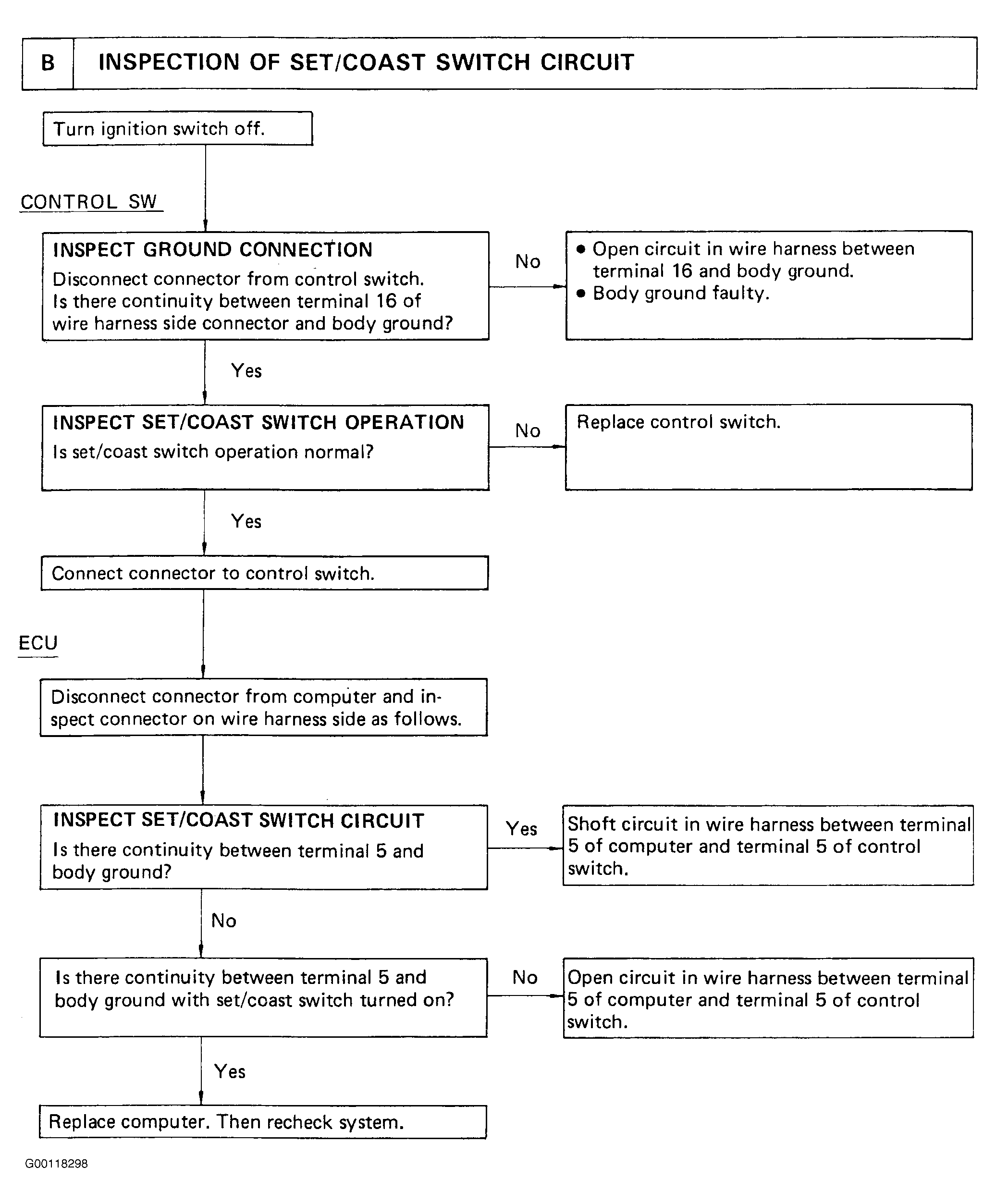

Fig 1: Test B: Inspection Of SET/COAST Switch Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
