Main Switch: Coupe

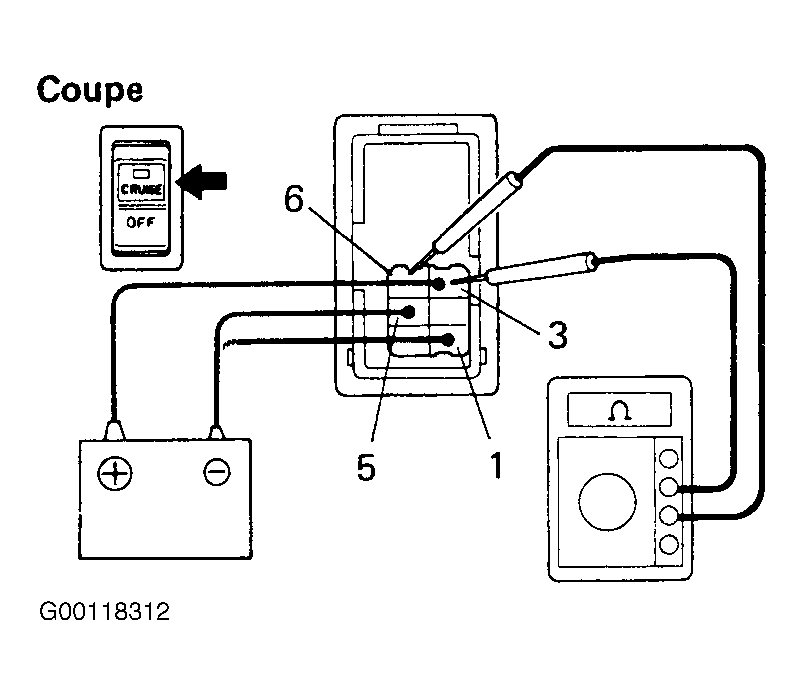

- Connect the positive (+) lead from the battery terminal 3 and the negative (-) lead to terminal 1 and 5. See Fig 1.
- Check that there is continuity between terminals 3 and 6 with the main switch pushed on. Check that the indicator light lights up. See Fig 1.
- Check that there is no continuity between terminals 3 and 6 with the main switch pushed off. See Fig 1.
- If continuity is not as specified, replace the switch.
