Cruise Control Ecu

Disconnect the ECU. Inspect the connector on wire harness side. Test cruise control ECU circuits under conditions listed. See Fig 1 and Fig 2 .

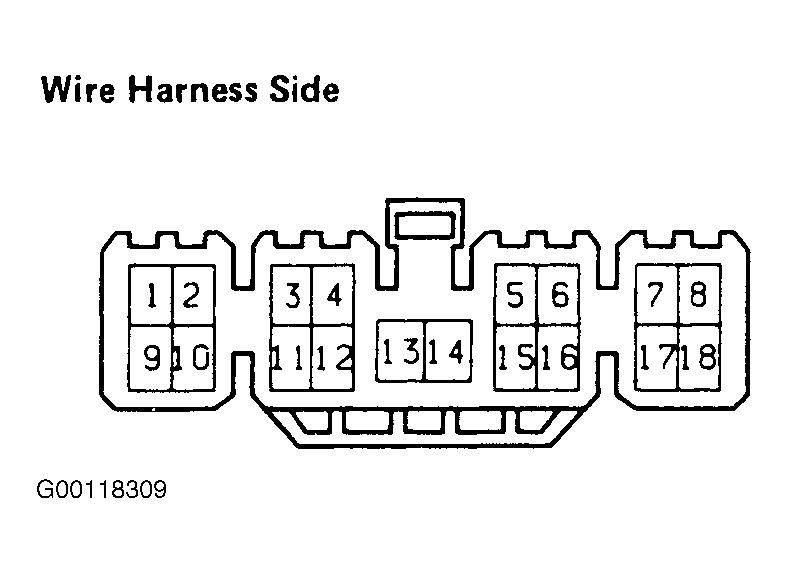

Fig 1: Identifying Cruise Control ECU Wire Harness Side Terminals
G00118309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

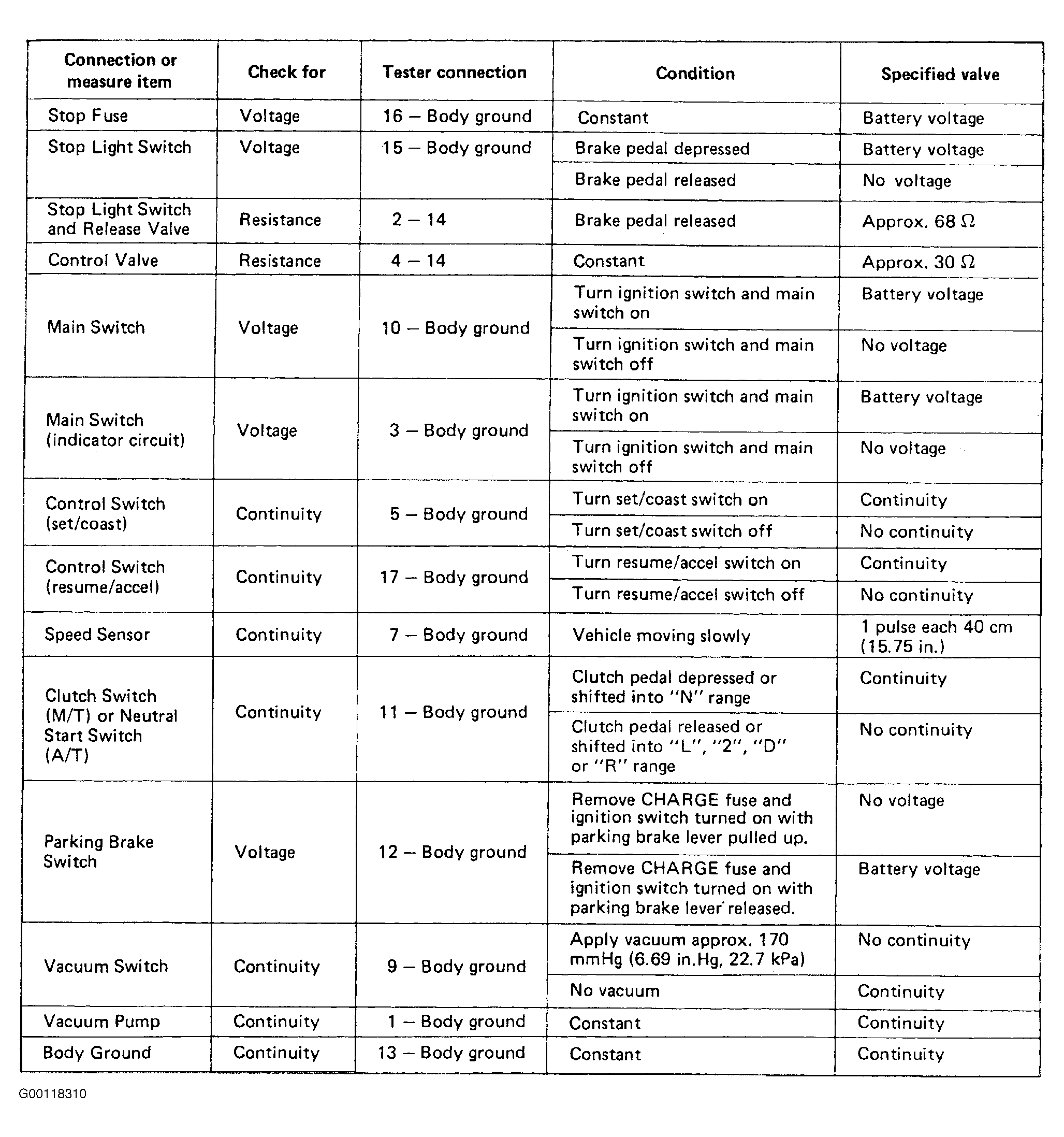

Fig 2: Testing Cruise Control ECU
G00118310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
