Test 5 Or Code 24 - Intake Air Temperature Sensor Signal
WARNING: This page is about a different car, the 1990 Toyota Supra and 1989 Toyota Supra. However, it is still accessible from the selected car via links, so may be relevant.

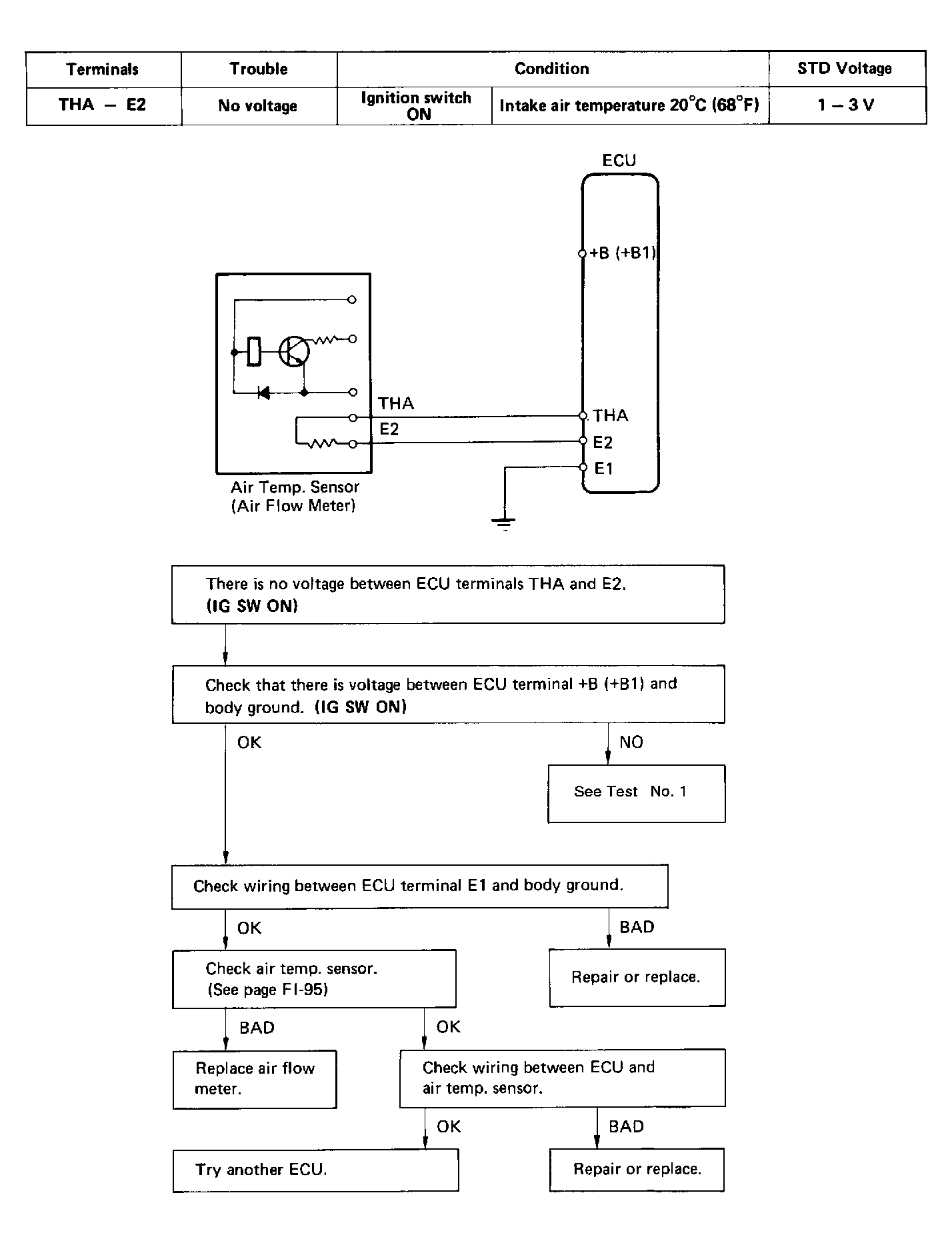

Fig 1: Test 5 or Code 24 Diagram & Flow Chart (Non-Turbo)
