Charge Light Relay Test (Land Cruiser)

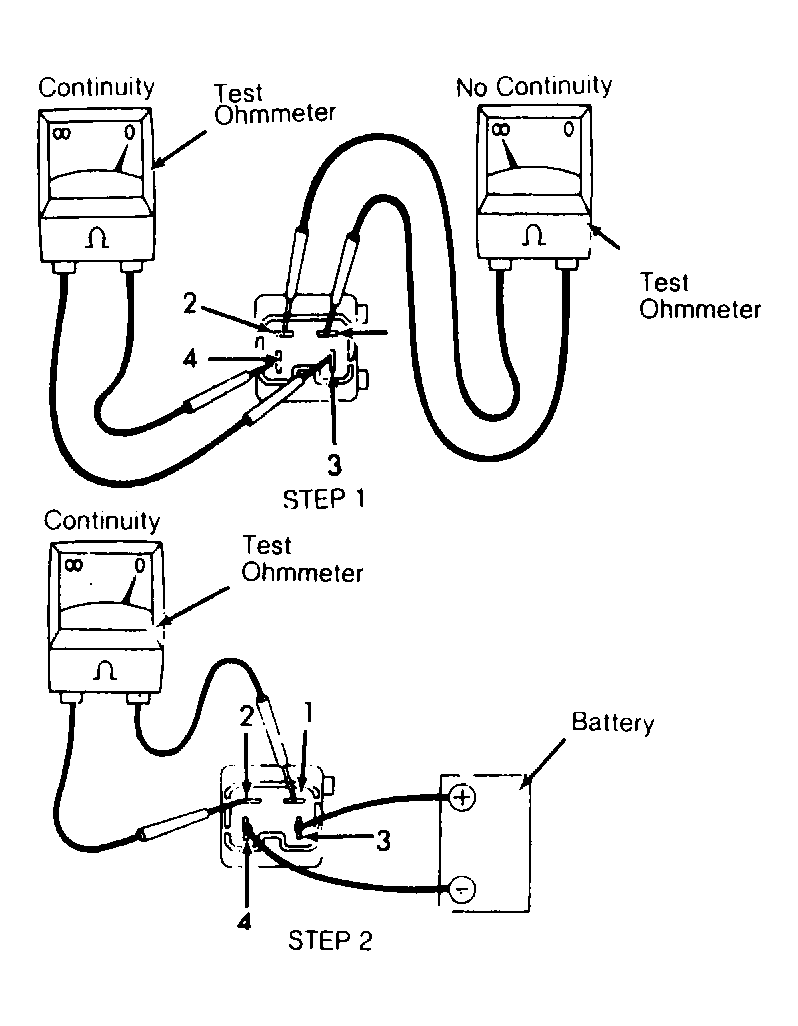

- Charge light relay is located above right kick panel. Using an ohmmeter, connect ohmmeter positive lead to charge light relay terminal No. 4 and negative lead to terminal No. 3. See STEP 1 in Fig 1.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Ohmmeter should indicate continuity. Reverse ohmmeter leads. Ohmmeter should now indicate no continuity.
- Connect ohmmeter between terminals No. 1 and 2. Ohmmeter should indicate no continuity. If charge light relay does not test as indicated, replace relay.
- Check charge light relay operation. Connect positive side of battery to terminal No. 3. Connect negative side of battery to terminal No. 4. See STEP 2 in Fig 1. Check for continuity between charge light relay terminals No. 1 and 2. If relay does not test as indicated, replace relay.
