System Tests: Notes

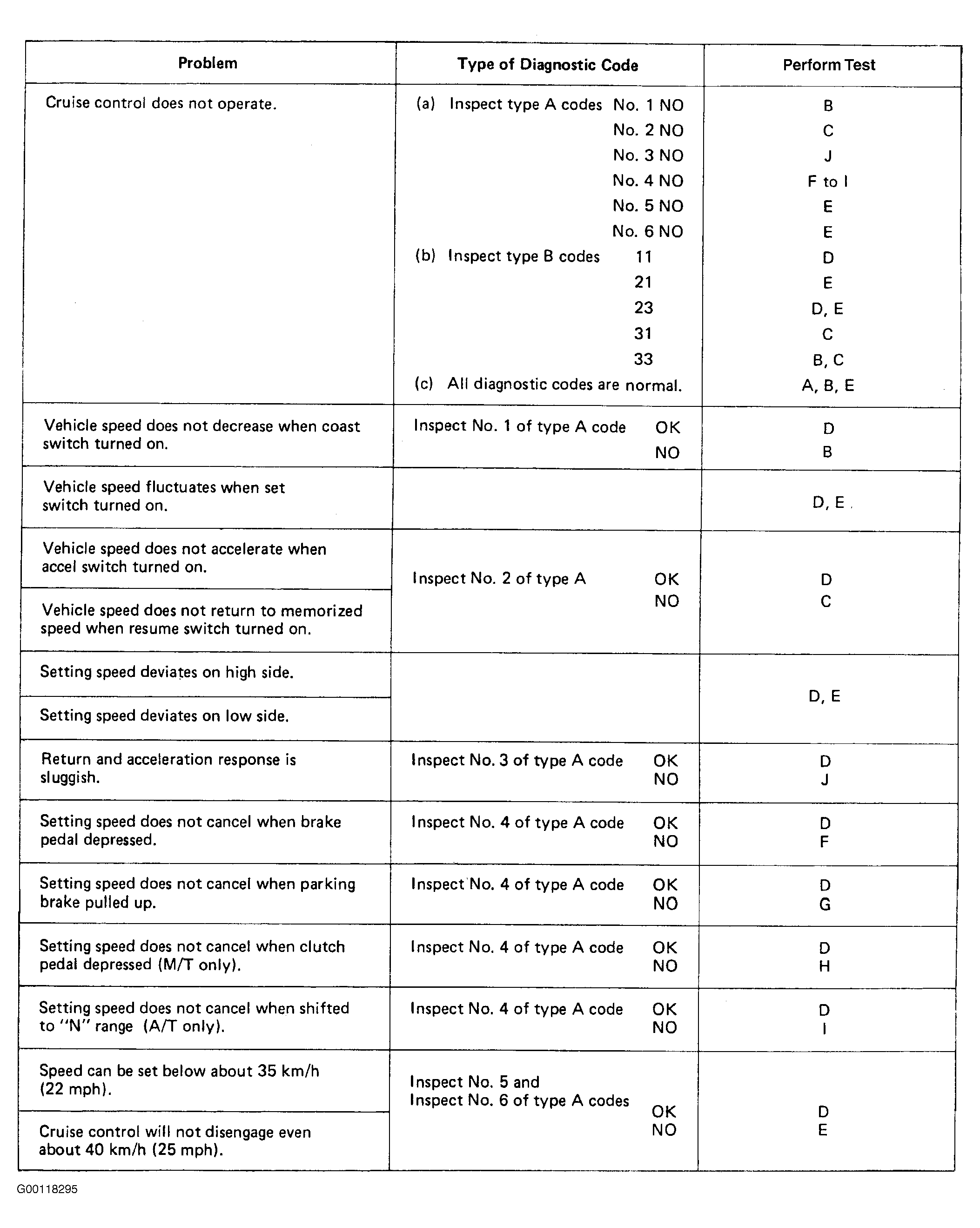

For a complete list of symptoms, see Fig 1.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 SYSTEM TEST INDEX
| Circuit |
Perform Test |
| Power Source |
A |
| SET/COAST Switch |
B |
| RESUME/ACCEL Switch |
C |
| Actuator |
D |
| Speed Sensor |
E |
| Stop Light |
F |
| Parking Brake Switch |
G |
| Clutch Switch |
H |
| Neutral Start Switch (Auto. Trans.) |
I |
| Vacuum |
J |
