Test 2 Or Code 11 - Ecu (B+) Circuit

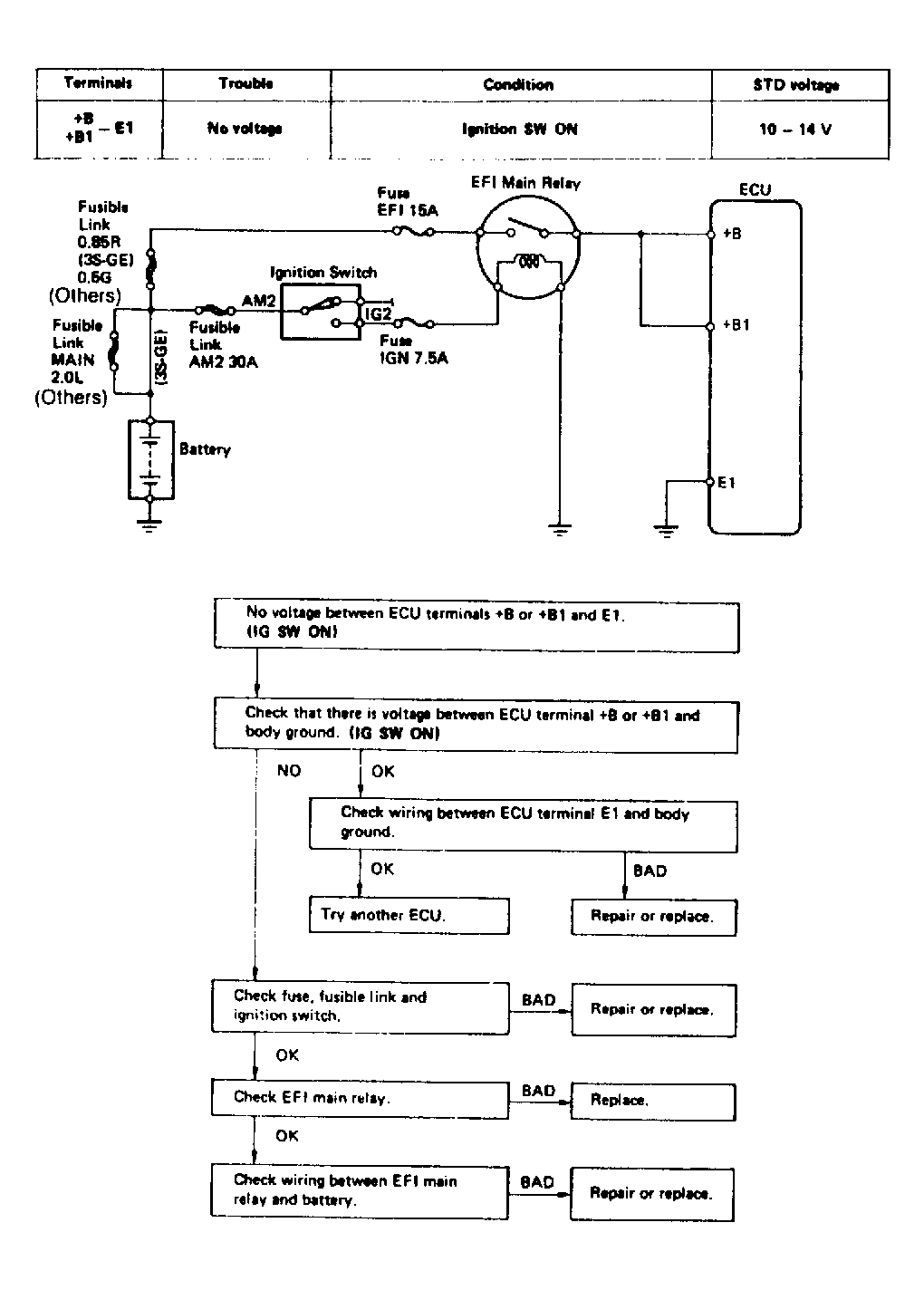

Fig 1: Test No.2 or Code 11 Diagram & Flow Chart
G118641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
