Test 13 - Idle Speed Control Circuit

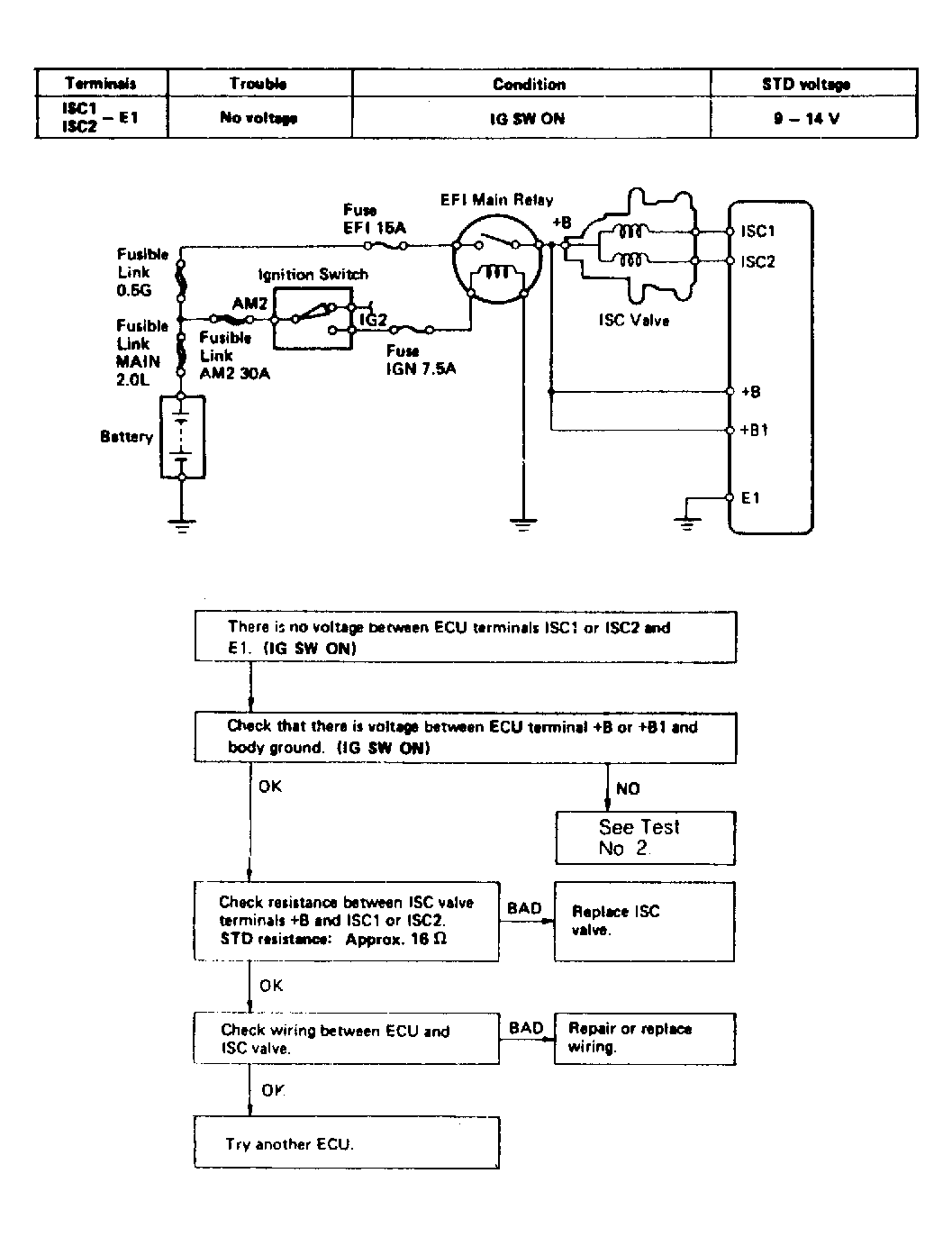

Fig 1: Test No. 13 Diagram & Flow Chart

G118660

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
