Component Locations

For component locations, see Fig 1- Fig 3 .

COMPONENT LOCATIONS

Component	Location
Body Ground EB	Left Front Corner Of Engine Compartment, On Inner Fender
Body Ground ID	Left Kick Panel, To Left Of Junction Block No. 1

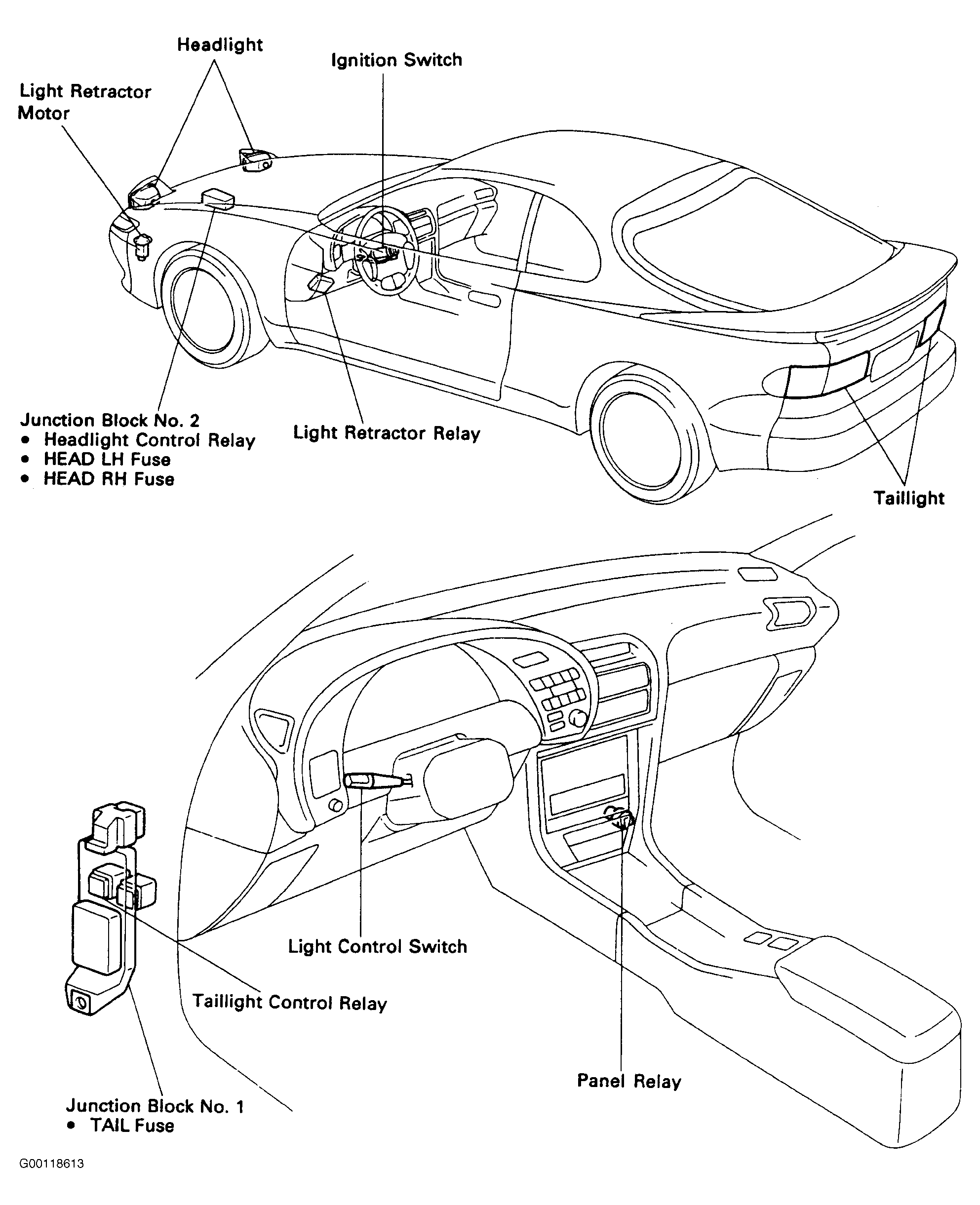

Fig 1: Locating Headlight Door Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

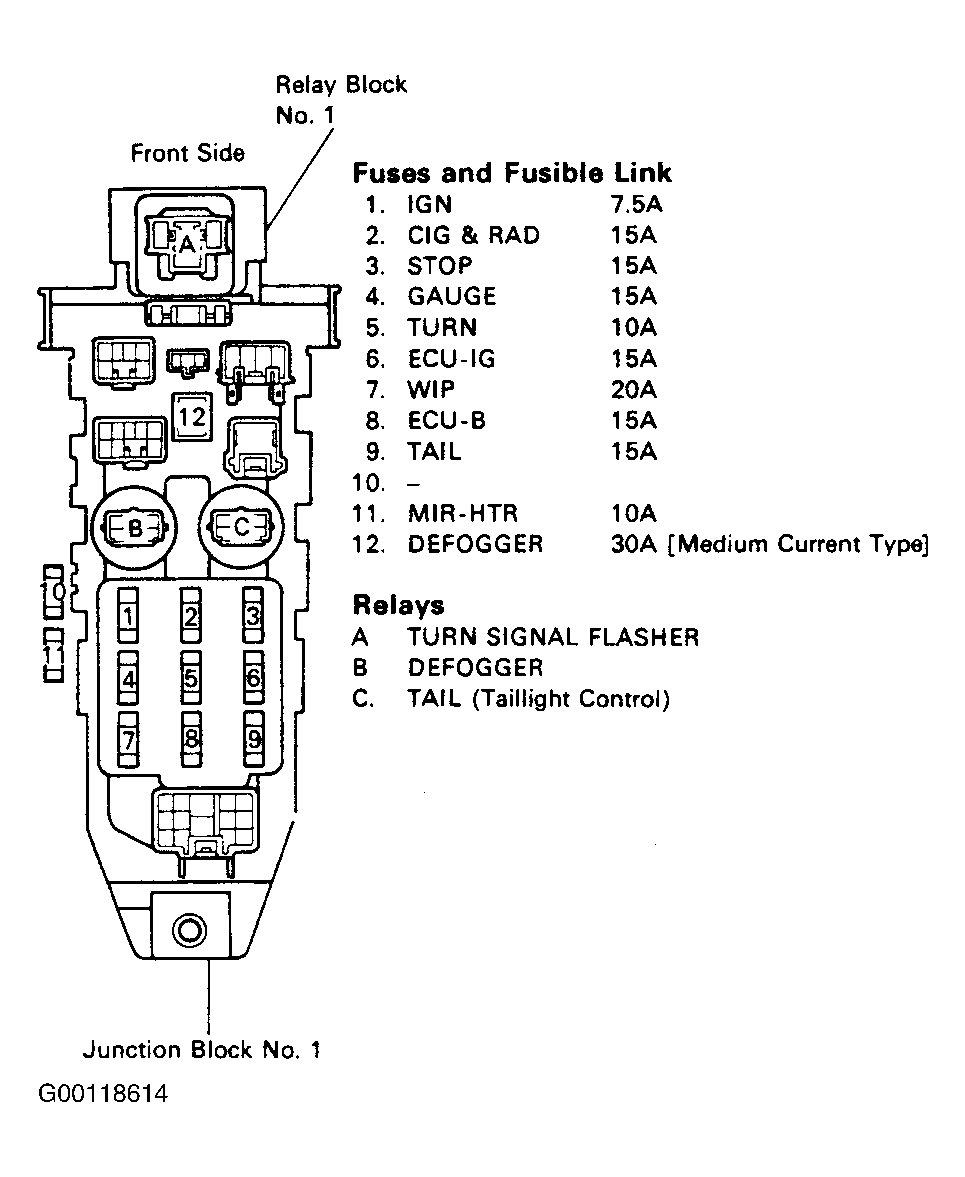

Fig 2: Identifying Junction/Relay Block No. 1 Fuses & Relays

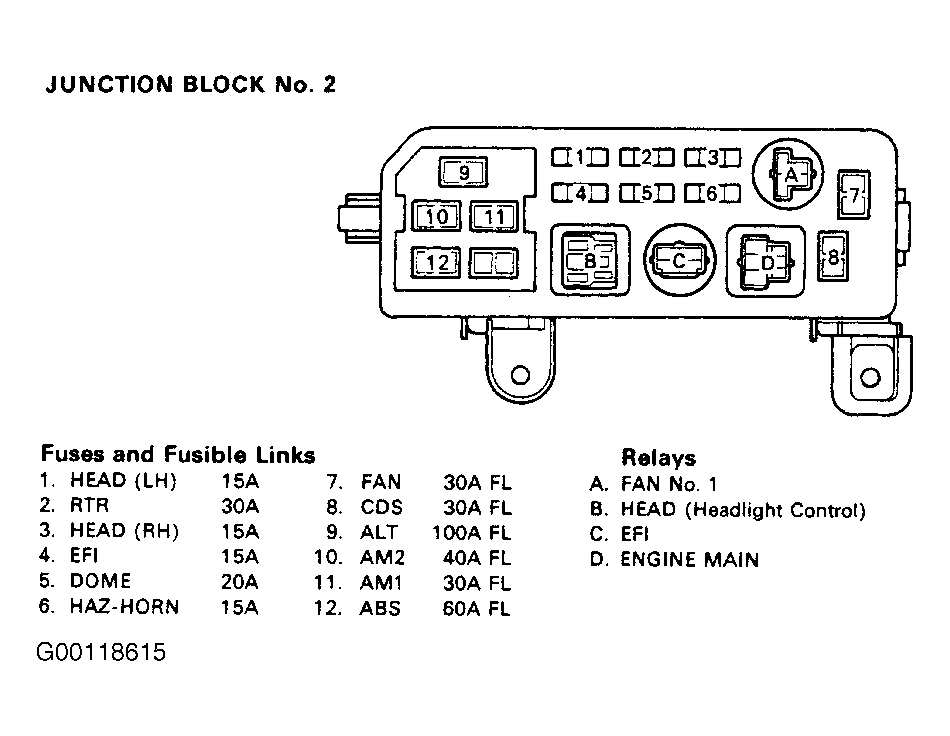

Fig 3: Identifying Junction/Relay Block No. 2 Fuses & Relays
