Without ECT

Using an ohmmeter, check the continuity of the terminals for each switch position. See Fig 1 and Fig 2 . If continuity is not as specified, replace switch.

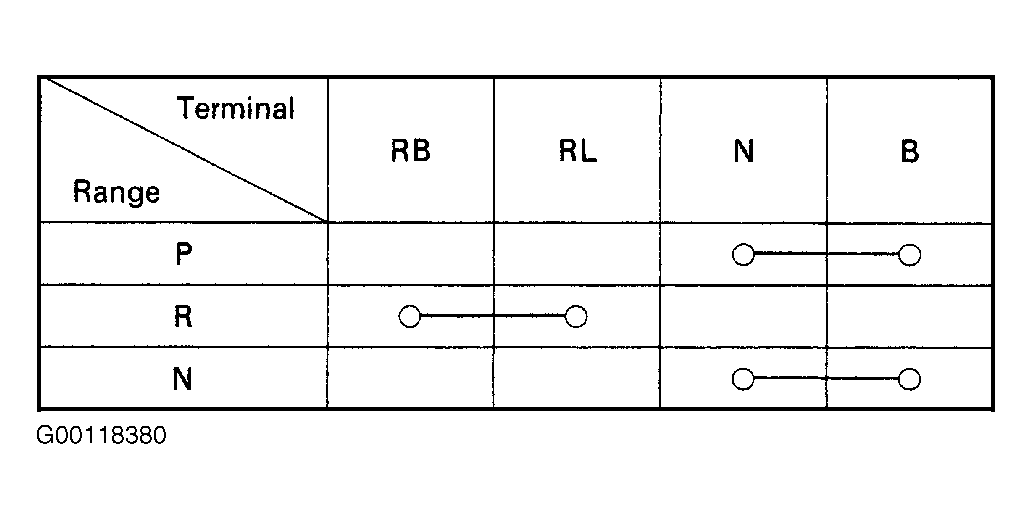

Fig 1: Testing Neutral Start Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

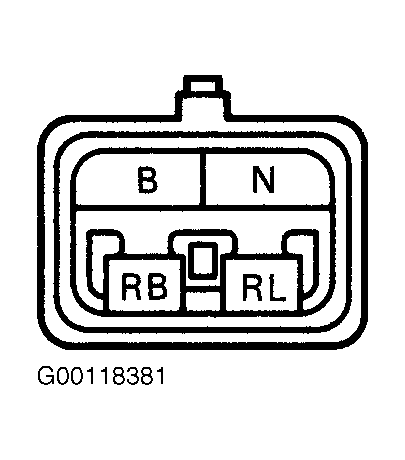

Fig 2: Identifying Neutral Start Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
