Component Locations

For component locations, refer to illustration. See Fig 1. For more information on fuse identification, see FUSES & CIRCUIT BREAKERS article in ELECTRICAL.

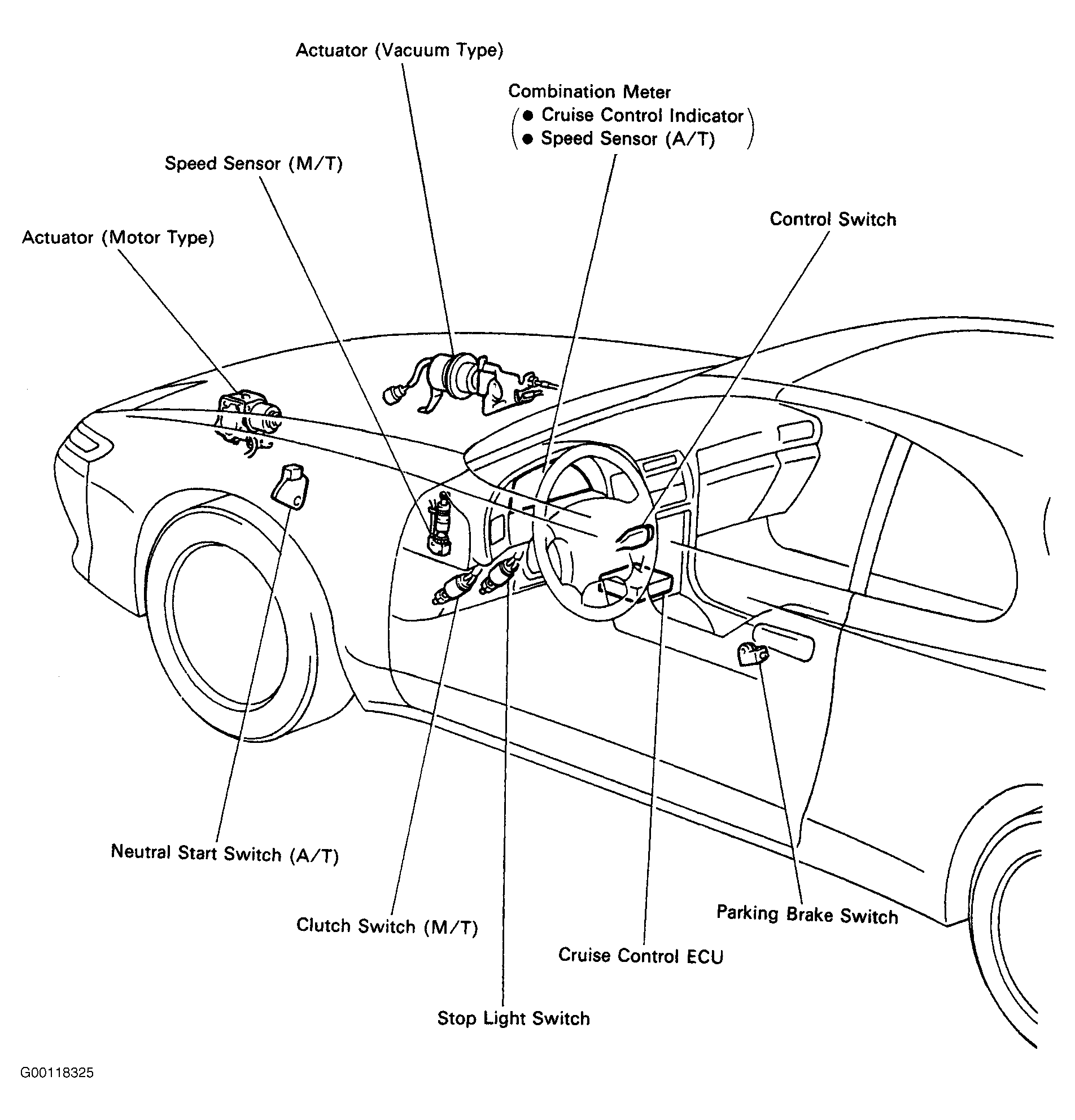

Fig 1: Locating Cruise Control Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

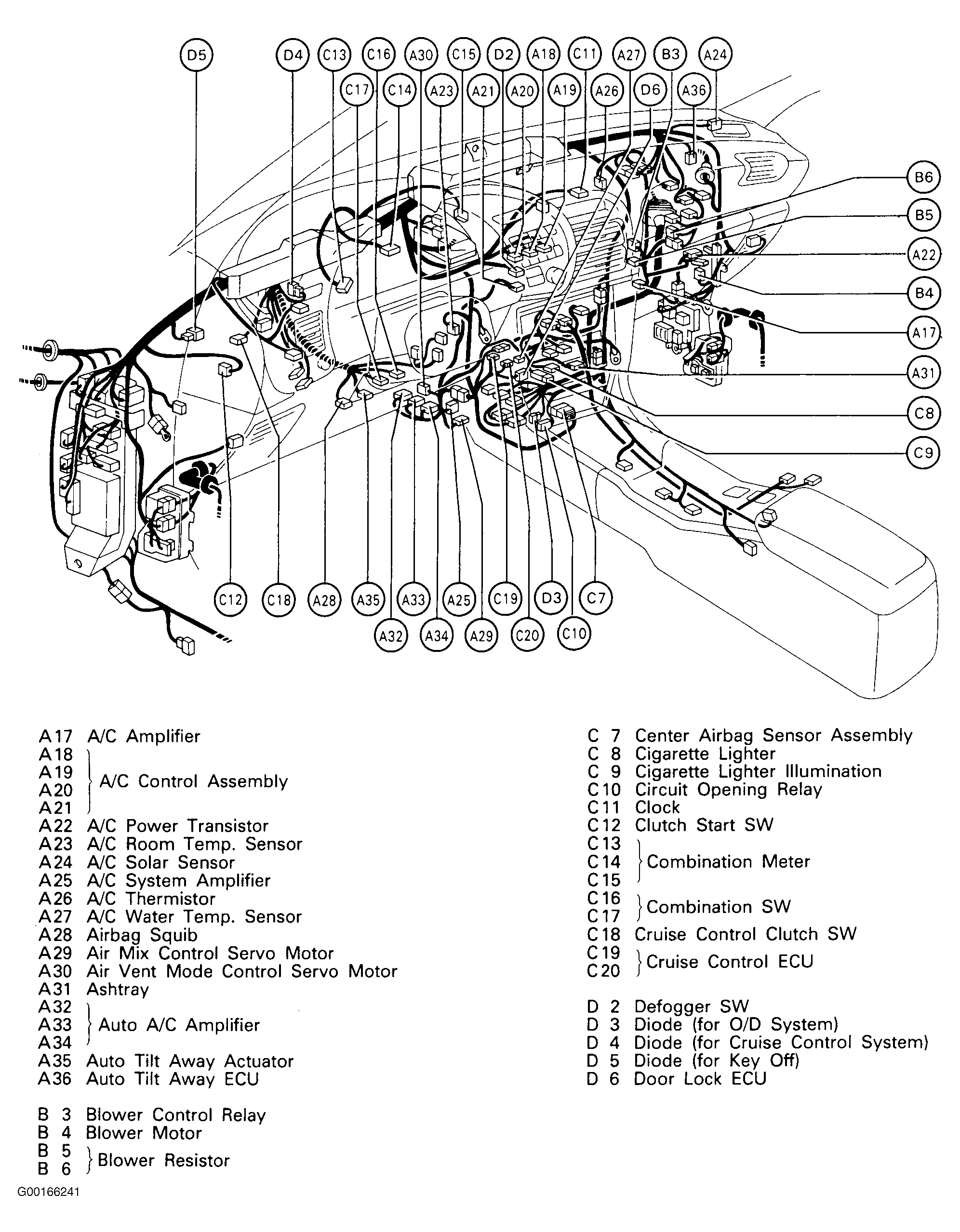

Fig 2: Locating Cruise Control Diode D4(Upper Left Side Of Instrument Panel)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Locating Diagnostic Check Connector (C 1 Check Connector)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Locating EFI (Engine Control) ECU & Interior Fuse/Relay Blocks

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Junction/Relay Block No. 1 Fuses & Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Junction/Relay Block No. 2 Fuses & Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
