Pattern Select Switch
CAUTION:
Ensure proper terminals of pattern elect switch are checked. Switch contains diodes and damage will occur if wrong terminals are checked.

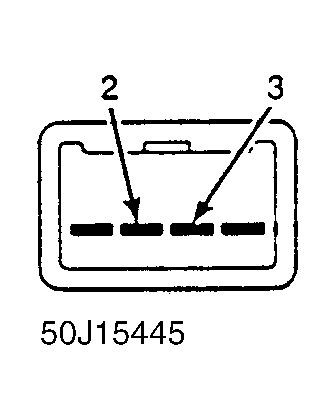

Disconnect pattern select switch on center console. Note terminal identification. See Fig 1. Using an ohmmeter check continuity between proper terminals in specified switch position.
