Removal & Installation: Tercel: Installation

  1. Apply multipurpose grease to center hub of torque converter. Install one guide pin in threaded mounting pad of torque converter to aid in aligning torque converter.

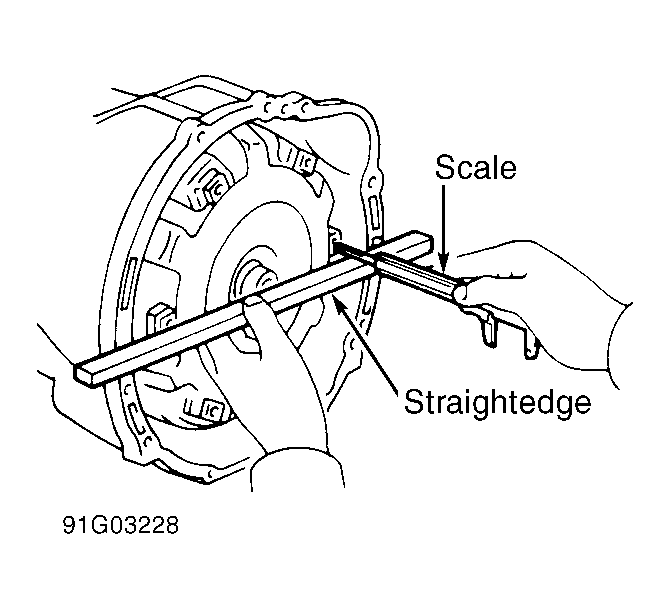

  2. Torque converter is correctly installed if torque converter drive lugs are at least .53" (13.4 mm) below engine mating surface. See Figure. Reverse removal procedure to complete installation of transaxle.
  3. Tighten torque converter bolts to 13 ft. lbs. (18 N.m). Tighten transaxle-to-engine bolts to 47 ft. lbs. (64 N.m). Fill transaxle to proper capacity. Check and adjust throttle valve cable.
