Power Remote Control Mirror

NOTE: If ice should jam the mirror, do not operate the control or scrape the mirror face. Use a spray de-icer to free the mirror.

To adjust the power remote control mirror, first place the master switch at "R" (right) or "L" (left) depending on which mirror needs adjusting, then push the control switch in the desired direction. See Fig 1.

If the engine is not running, the key must be in the "ACC" position.

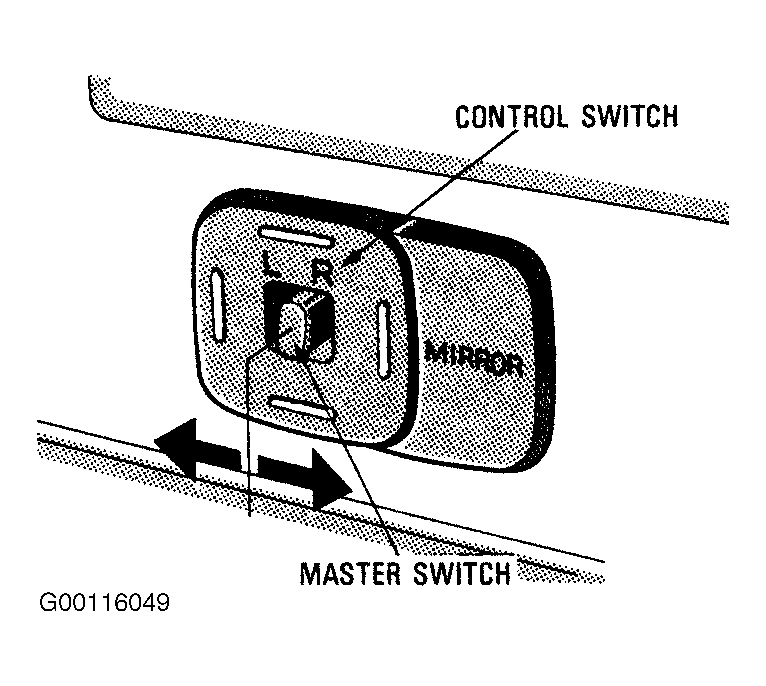

Fig 1: Identifying Power Remote Control Mirror Control
G00116049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
