Relay Circuit

  1. Disconnect the connector from the relay and inspect the connector on the wire harness side. See Fig 1 and Fig 2 .
  2. If circuit is as specified, inspect the door lock signal.

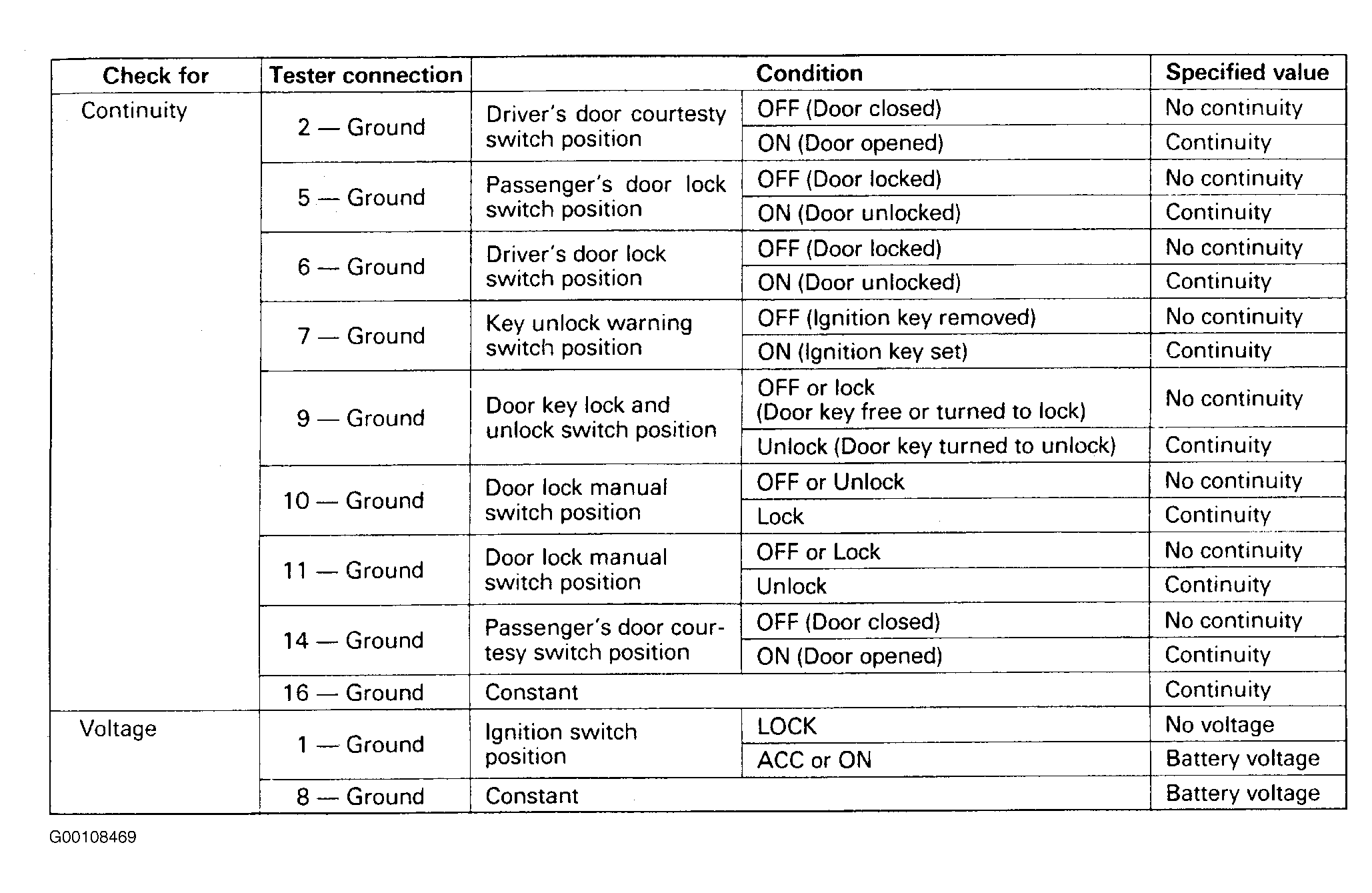

Fig 1: Testing Door Lock Control Relay
G00108469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Door Lock Control Relay Connector Terminals
G00108468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
