Key-Off Power Window Signal
NOTE:
When the relay circuit is as specified, inspect the Key-Off Power Window Signal

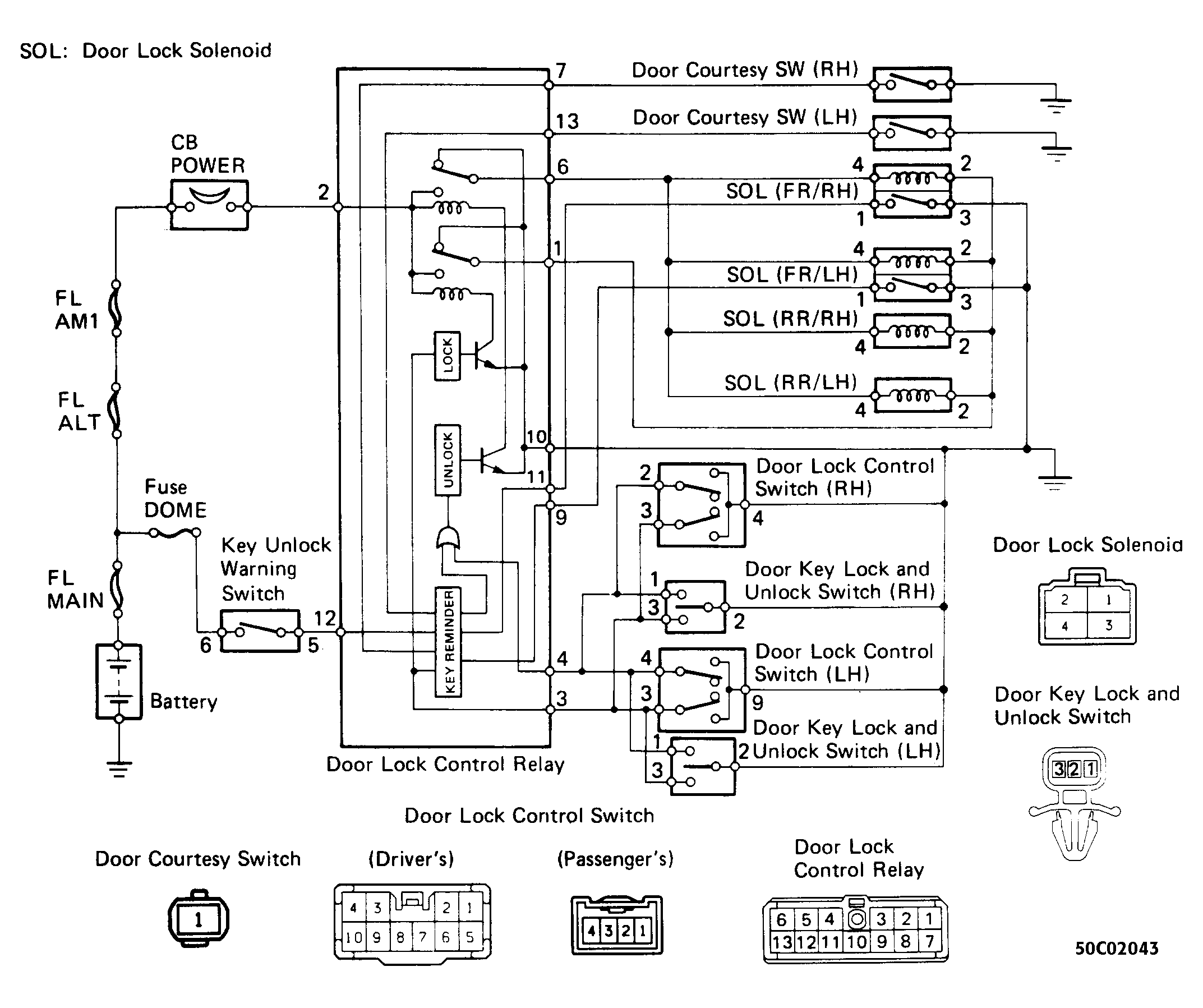

Connect the connector to the relay. Connect the positive (+) lead from the voltmeter to terminal No. 5 and the negative (-) lead to terminal No. 10. Close the door with ignition switch turned to Lock or ACC, check that the meter needle indicates battery voltage. Open the door, check that the meter needle indicates zero volts. Turn the ignition switch On, check that the meter needle indicates battery voltage again. If operation is not as specified, replace the relay.
