Pick-Up Coil Resistance Test

Measure resistance of pick-up coil between terminals "A" and "B". See Fig 1. If resistance is not within specification, replace distributor. See PICK-UP COIL RESISTANCE table. If resistance is within specification, proceed to PICK-UP COIL AIR GAP CHECK.

PICK-UP COIL RESISTANCE

Application

Ohms

Van ⁽¹⁾

140-180

⁽¹⁾	Check at room temperature.

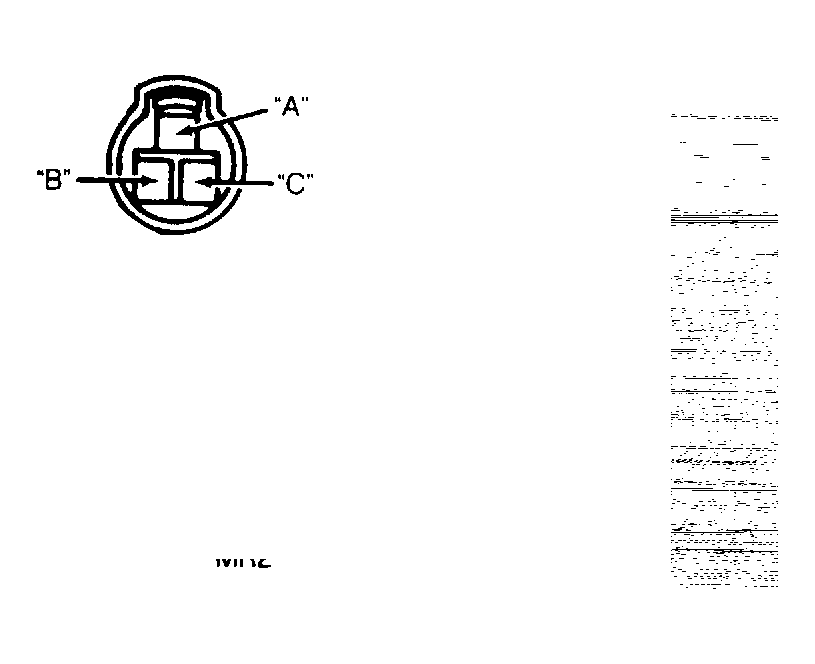

Fig 1: Pick-Up Coil Distributor Connector Terminal Identification
