Component Locations

For component locations, See Fig 1, Fig 2 or Fig 3 .

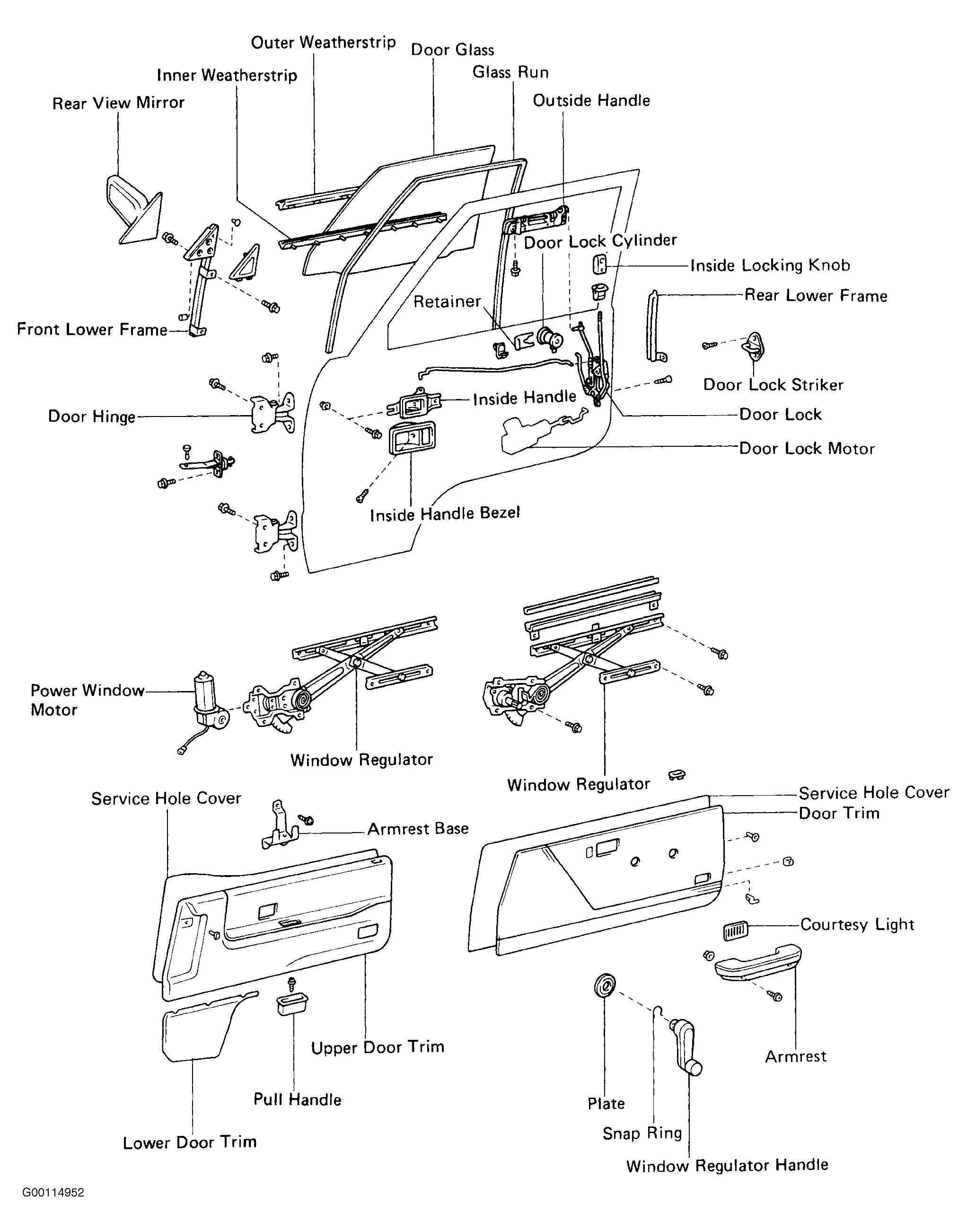

Fig 1: Exploded View Of Front Door Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

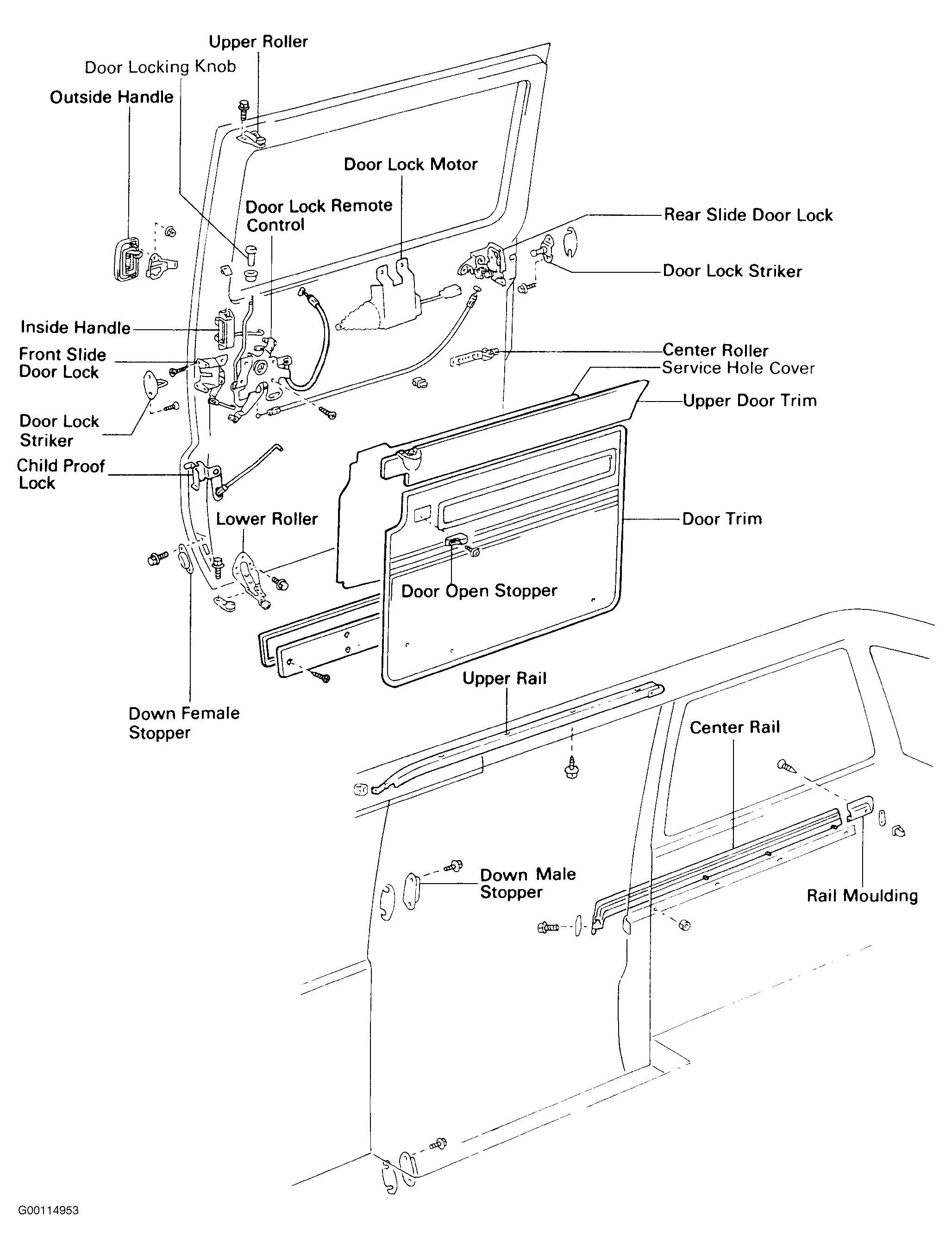

Fig 2: Exploded View Of Slide Door Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

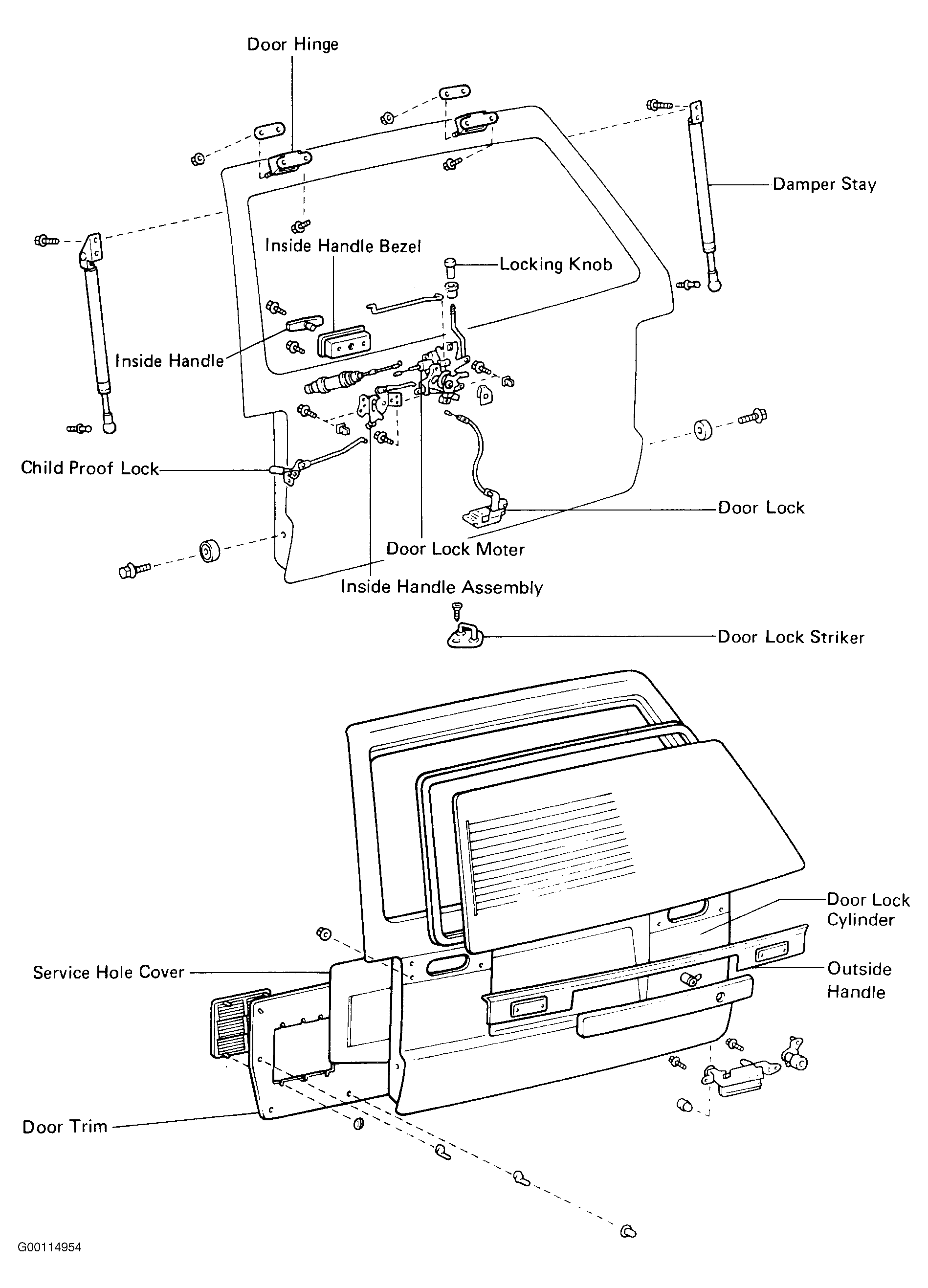

Fig 3: Exploded View Of Back Door Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
