Van Base, Van Window, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

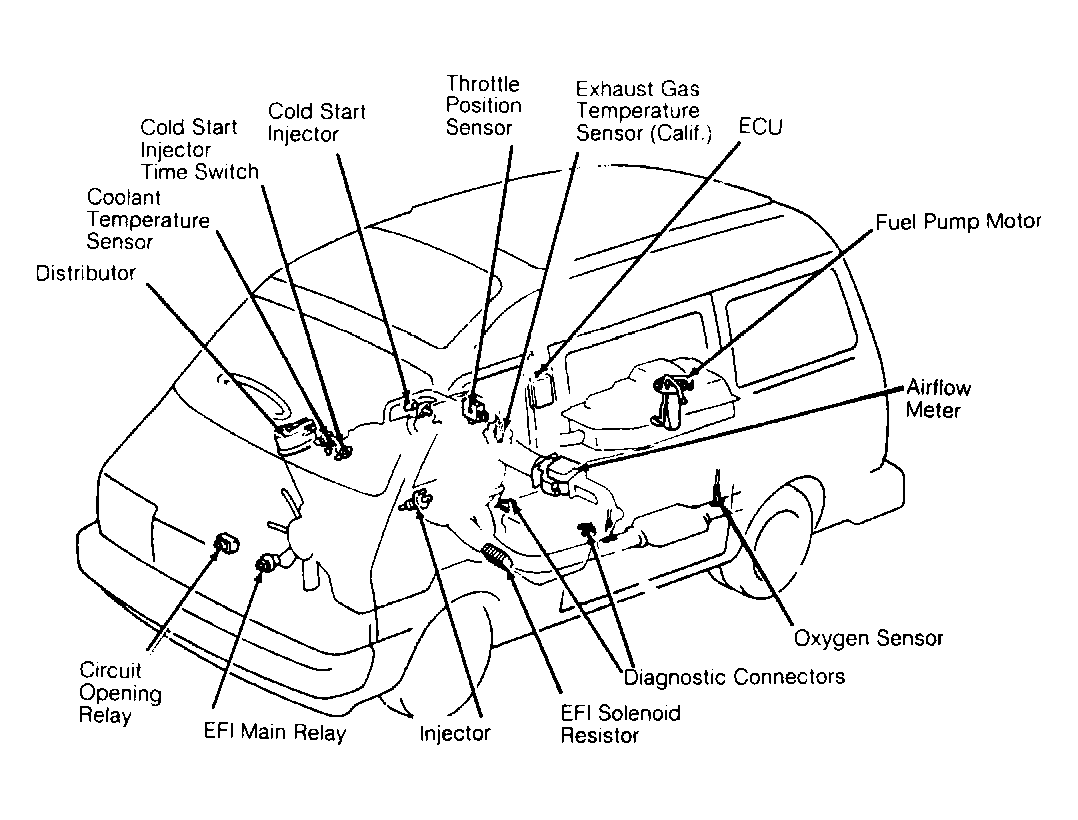

Fig 1: Component Locations (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

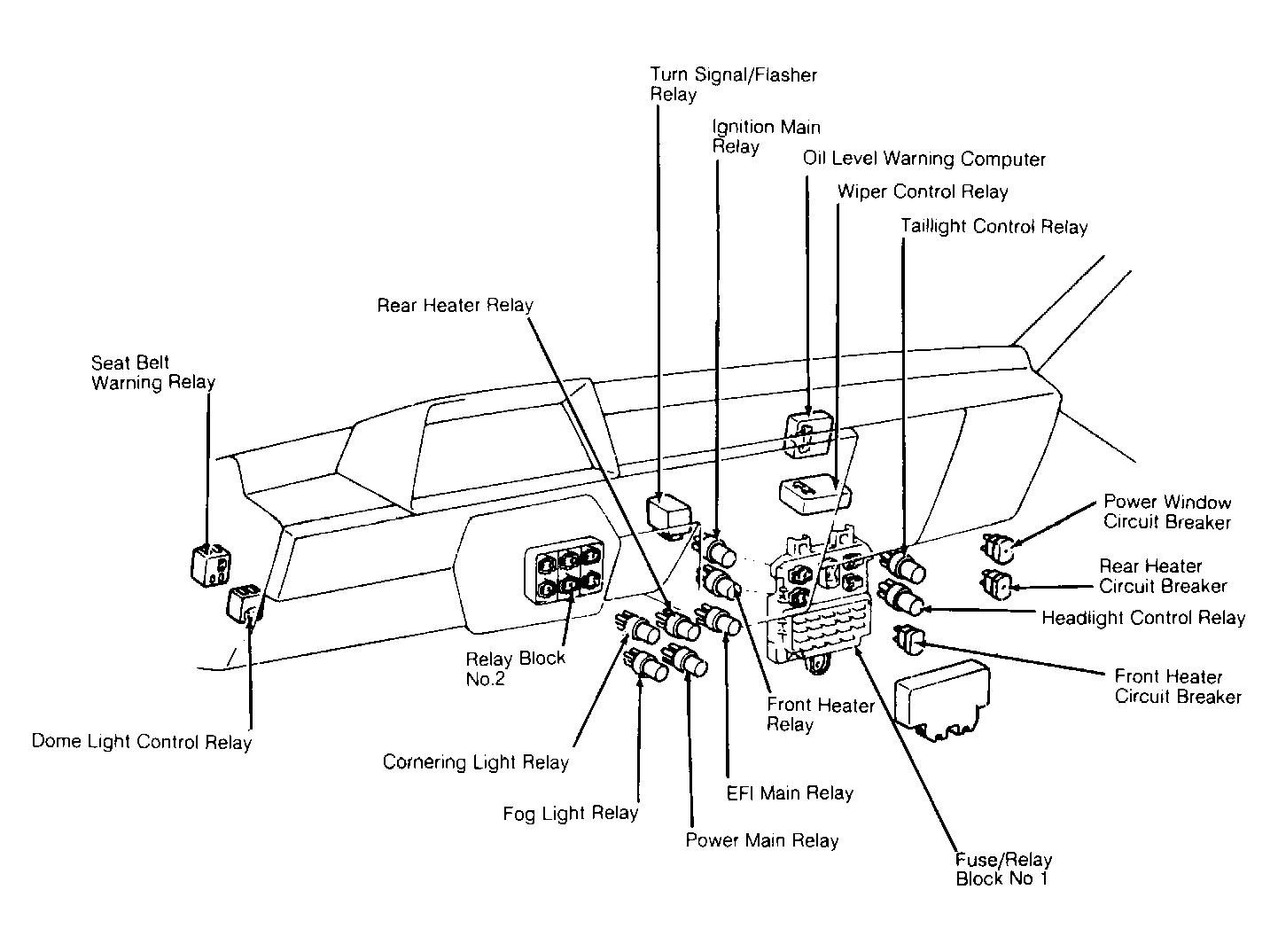

Fig 2: Component Locations (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Component Locations (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
