Cooling Fan Relay

Cooling fan relays are located in engine compartment relay and fuse box. On all models except Camry V6, use Fig 1 as guide to test relay. On Camry V6, use Fig 2 to check "A/C FAN NO. 2" and "A/C FAN NO. 3".

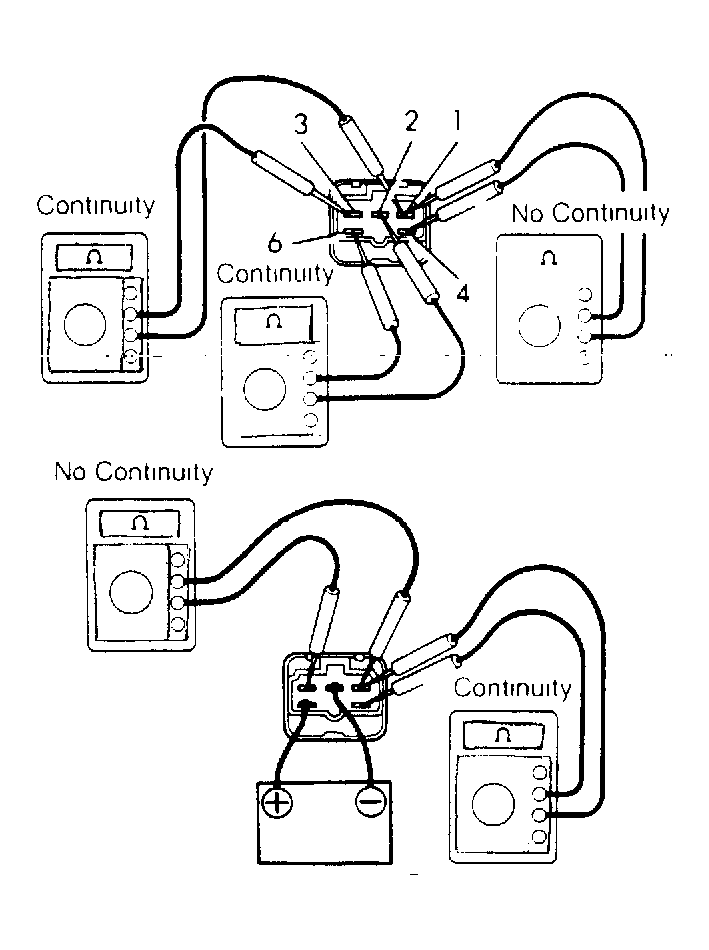

Fig 1: Testing Cooling Fan Relay (Incl. Camry V6 "FAN RELAY NO. 1")

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

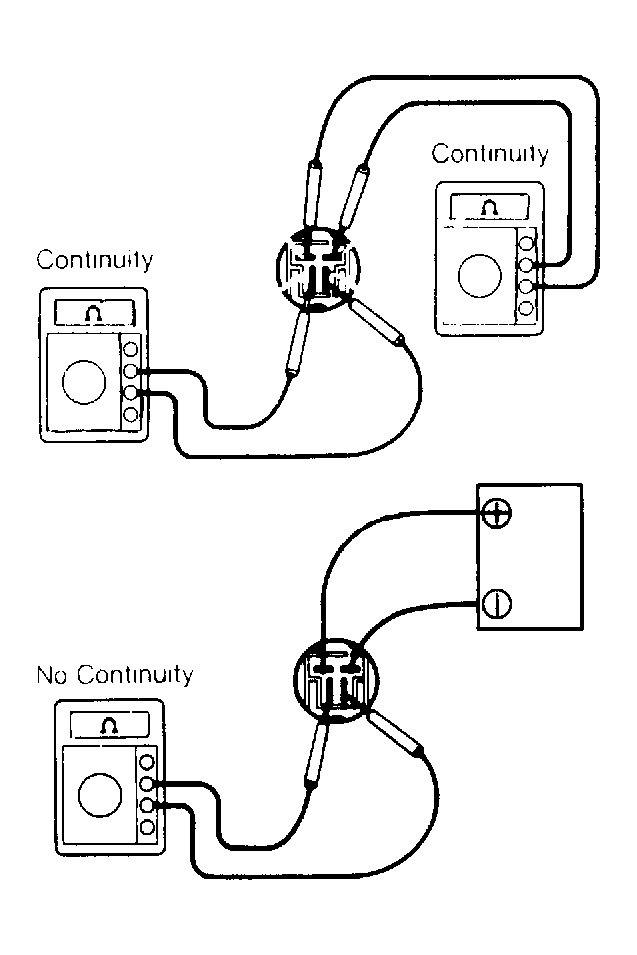

Fig 2: Testing Camry V6 "A/C FAN NO. 1"

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
