Back Door Courtesy Switch

  1. Check that there is continuity between terminal No. 1 and ground when the switch pin is free. See Fig 1.
  2. Check that there is no continuity between terminal No. 1 and ground when the switch pin is pushed.
  3. If continuity is not as specified, replace the switch.

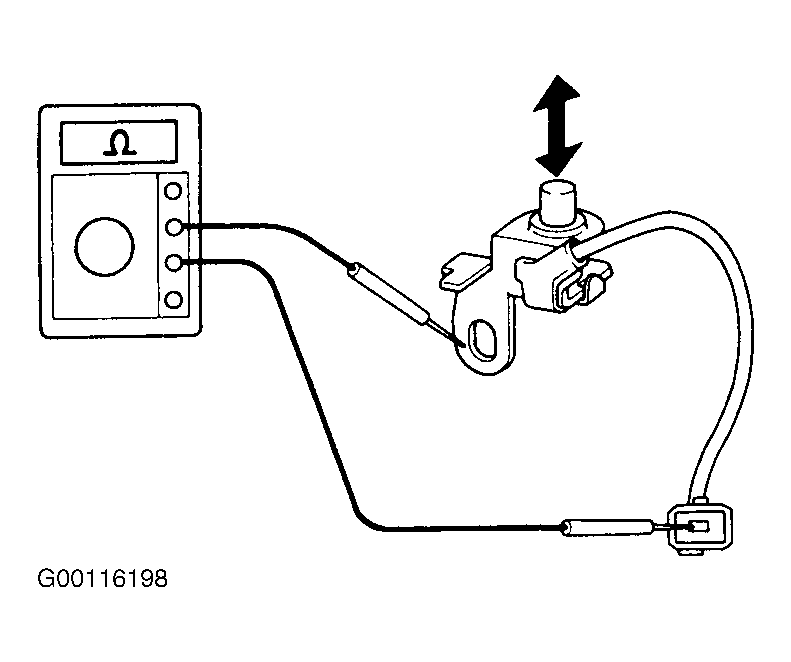

Fig 1: Testing Back Door Courtesy Switch Operation
G00116198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
