Test 12 - "Check Engine" Light Circuit

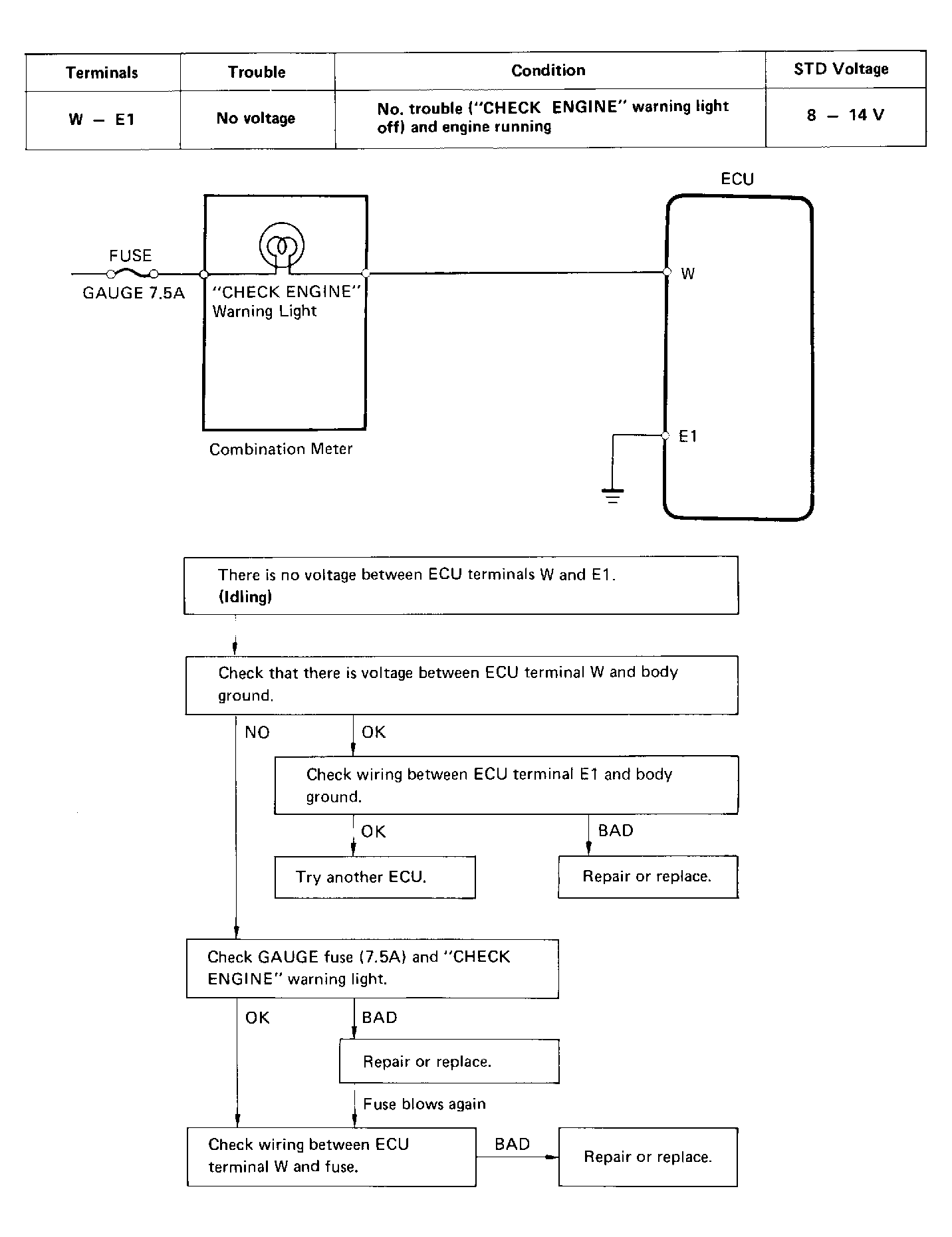

Fig 1: Test 12 Diagram & Flow Chart

G118838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
