Test 10 - Injector Circuit

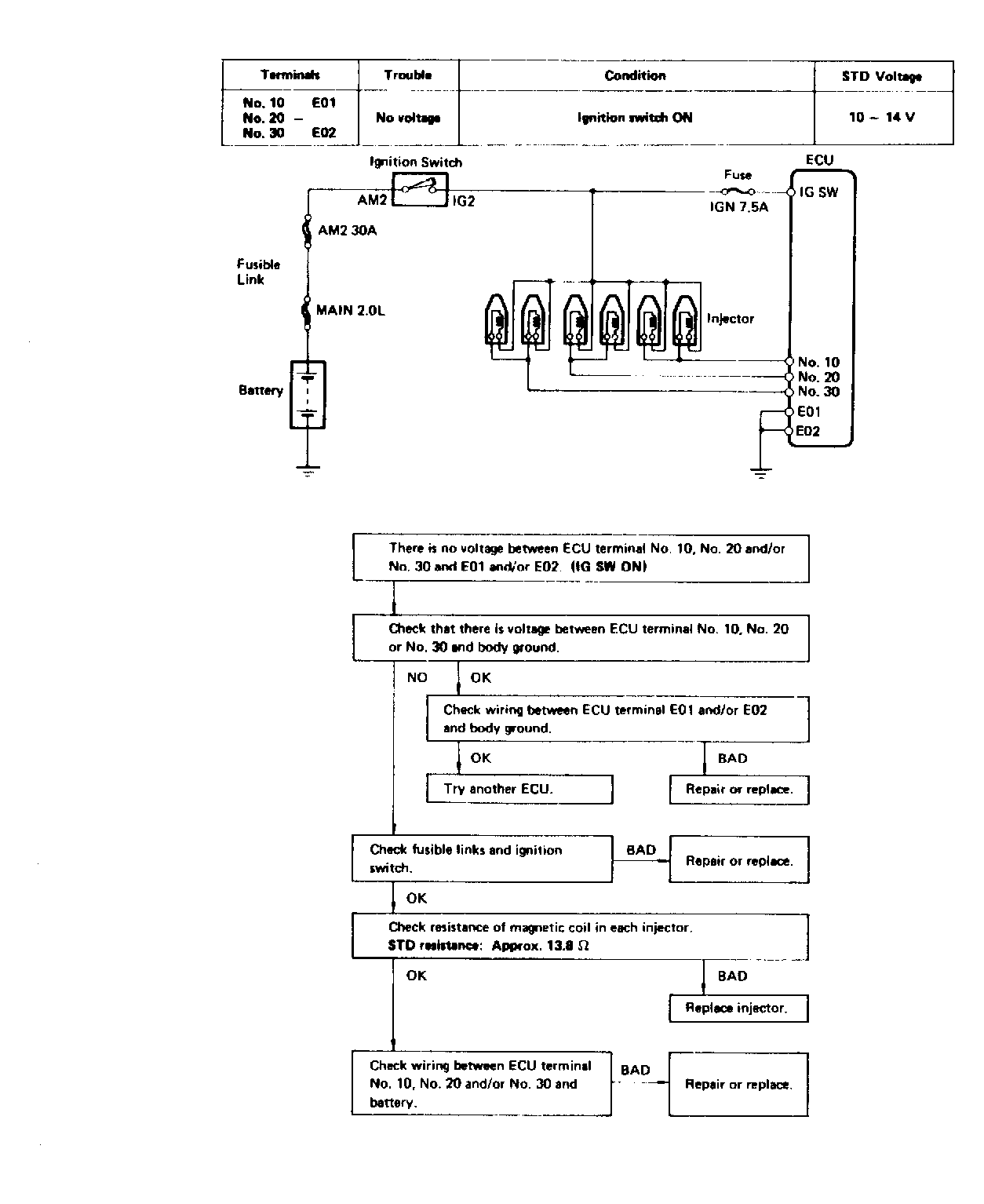

Fig 1: Test 10 Diagram & Flow Chart (Non-Turbo)
G118835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

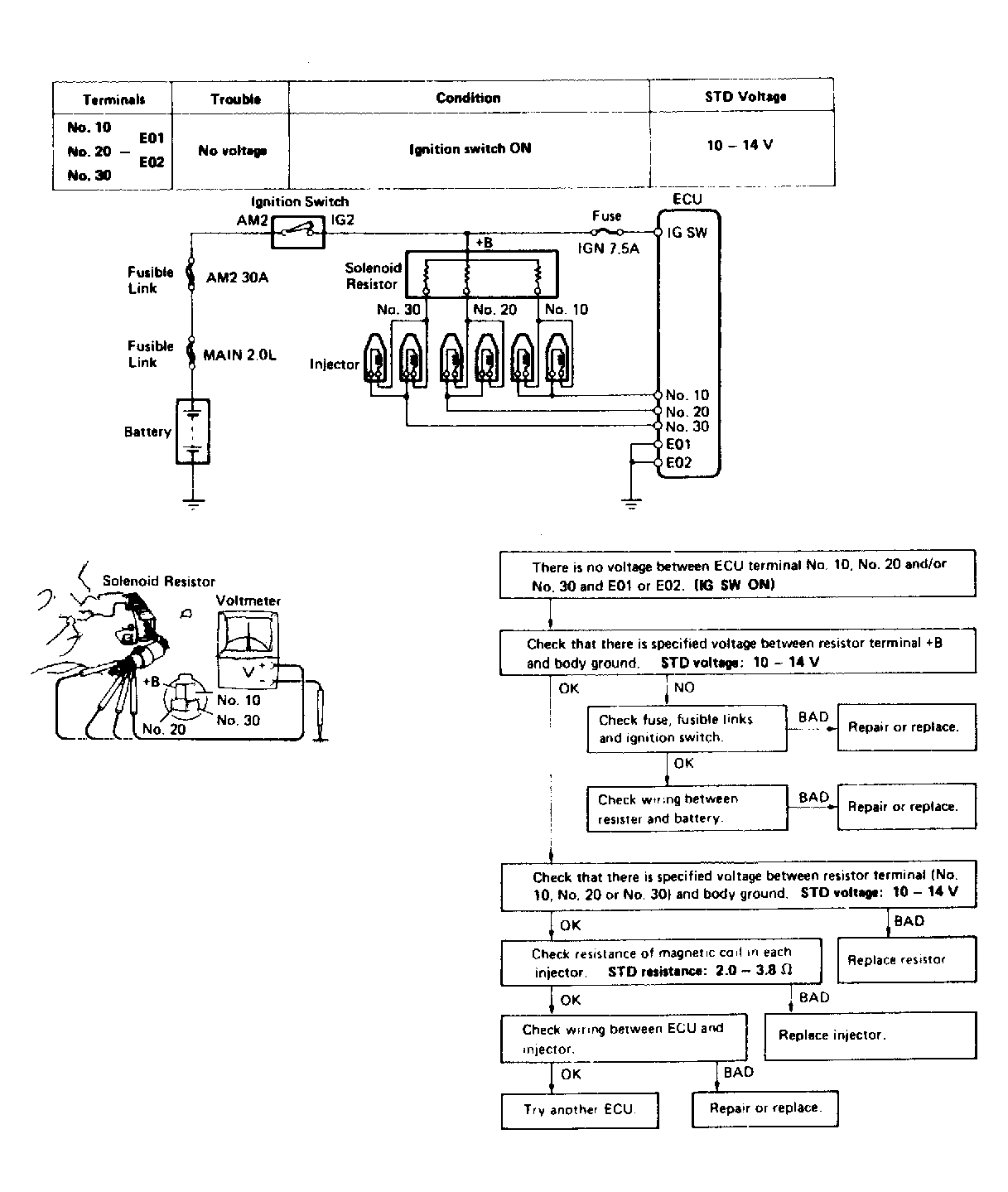

Fig 2: Test 10 Diagram & Flow Chart (Turbo)
G118836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
