Ecu Terminal Identification: Turbo

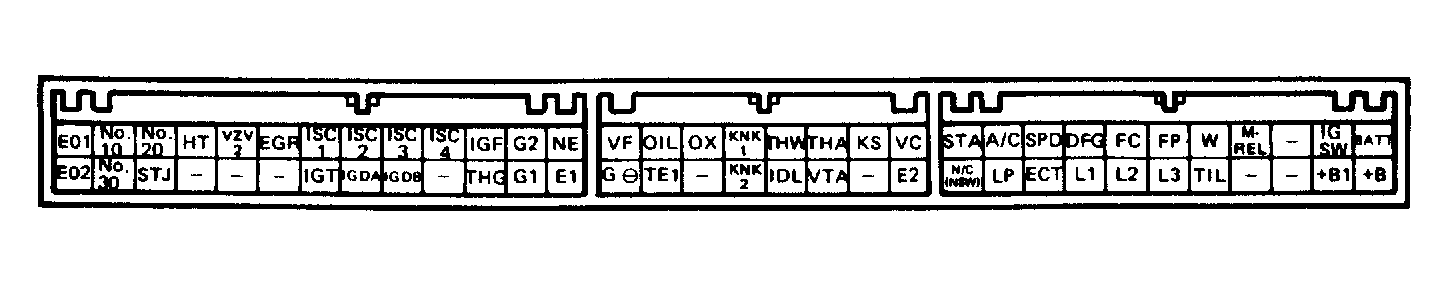

Fig 1: ECU Terminal Identification (Turbo)

G118812

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
