Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Anti-Lock Brake Sys. (ABS) Computer | Under right side of dash. |
| Cruise Control Computer | Under left side of dash. See Figure. |

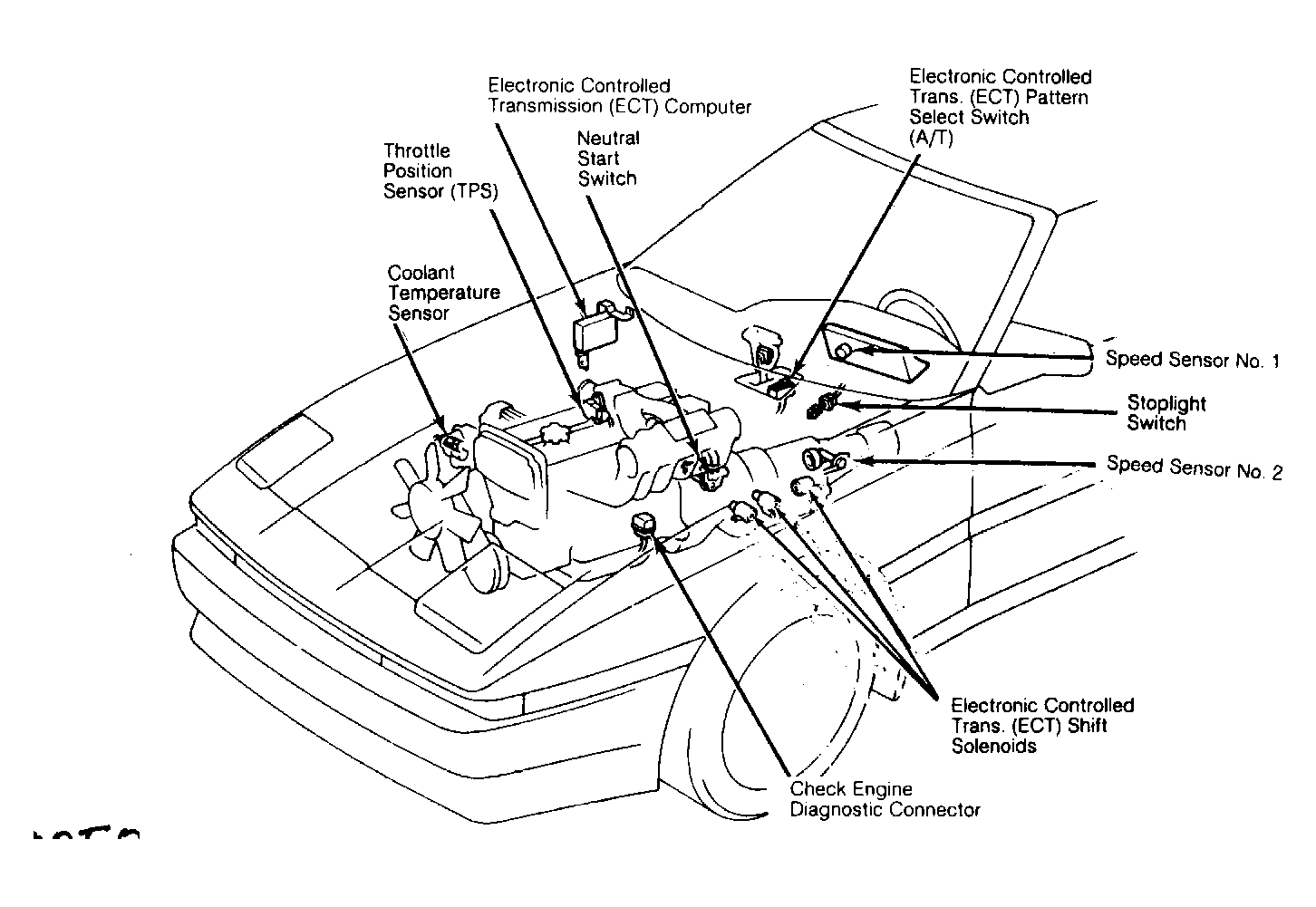

| Electronic Controlled Transmission (ECT) Computer | Behind right kick panel, near fuse/relay block No. 4. See Figure. |
| Electronic Control Unit (ECU) | Under right side of dash, behind glove box. |
| Progressive Power Steering (PPS) Computer | Under right side of dash. |
| Theft Deterrent Computer | Under left side of dash, to the right of steering column. See Figure. |

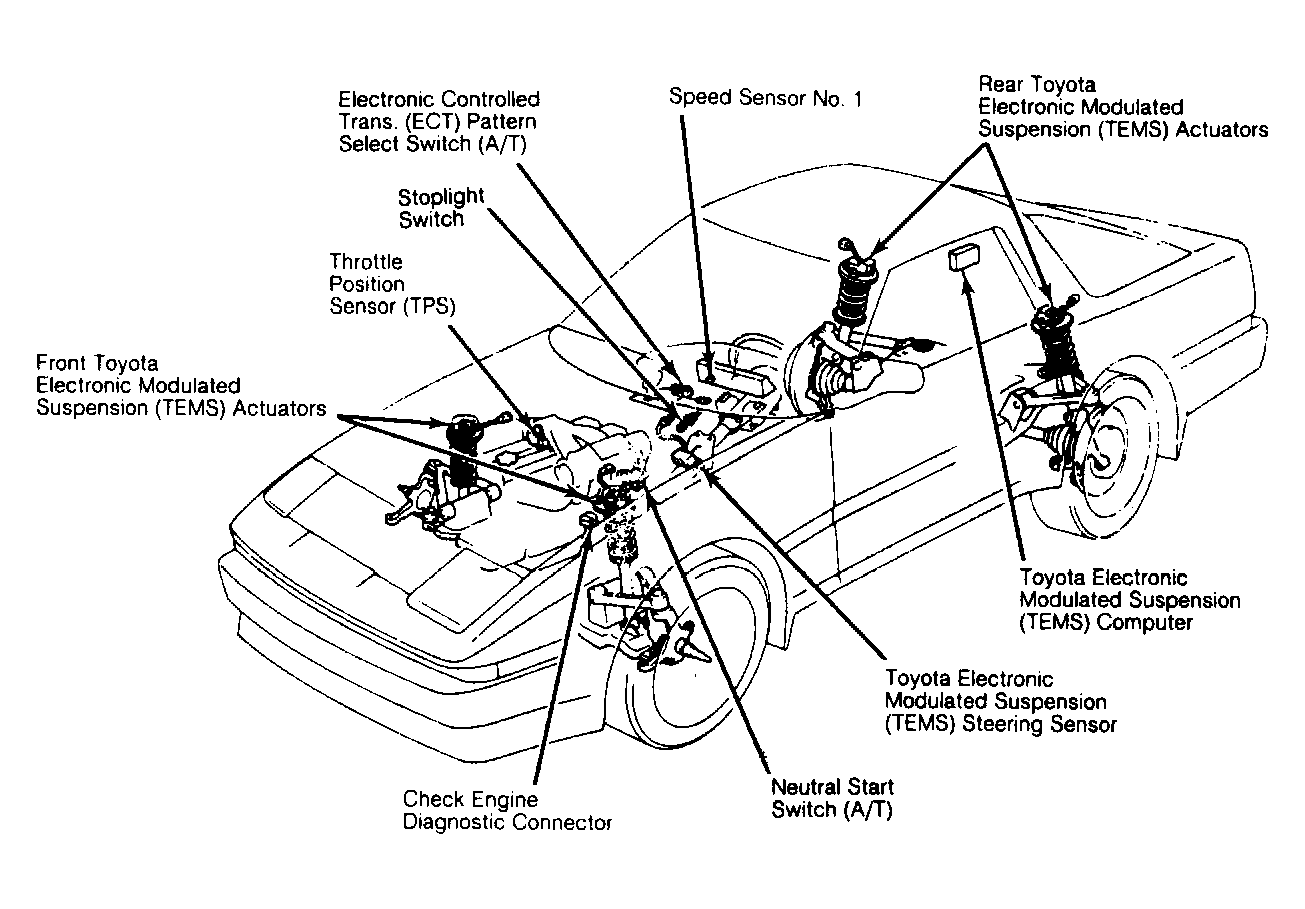

| Toyota Electronic Modulated Suspension (TEMS) Computer | On right side of luggage compartment. See Figure. |
