Test 1 Or Code 11 - Ecu (B+) Circuit

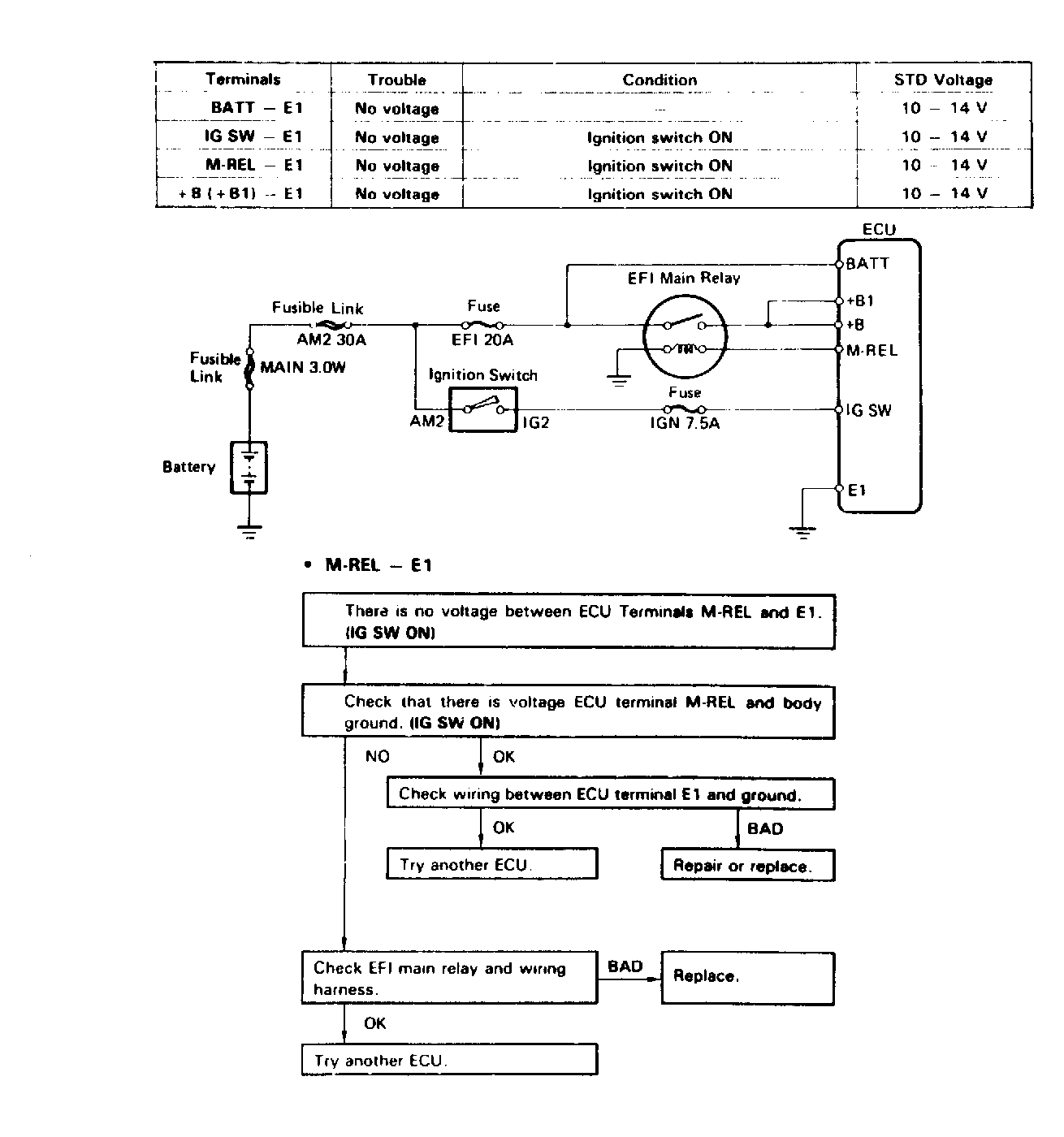

Fig 1: Test No. 1 or Code 11 Diagram & Flow Chart (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

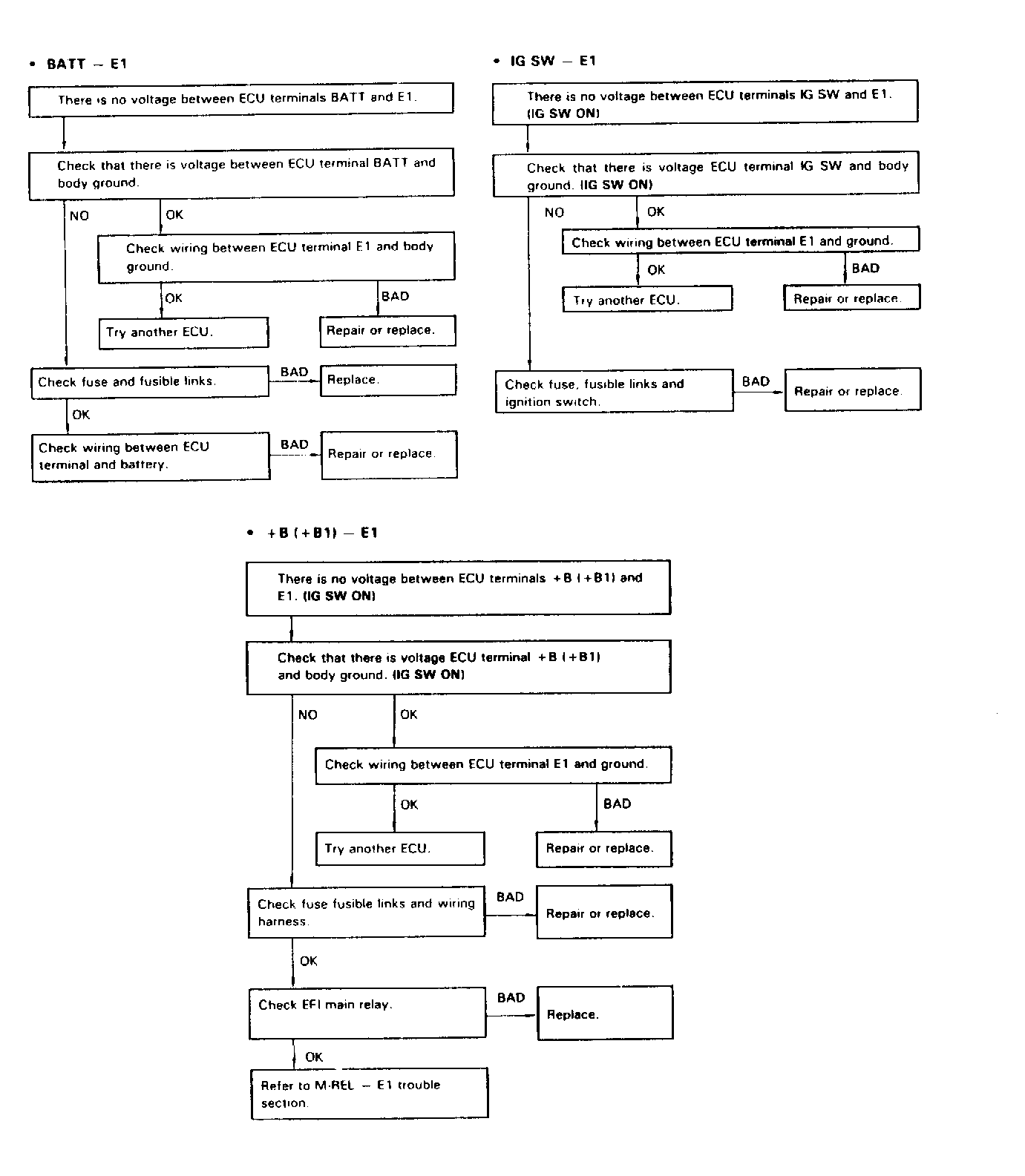

Fig 2: Test No. 1 or Code 11 Flow Chart (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
