Test I, Inspection Of Ignition Switch Circuit

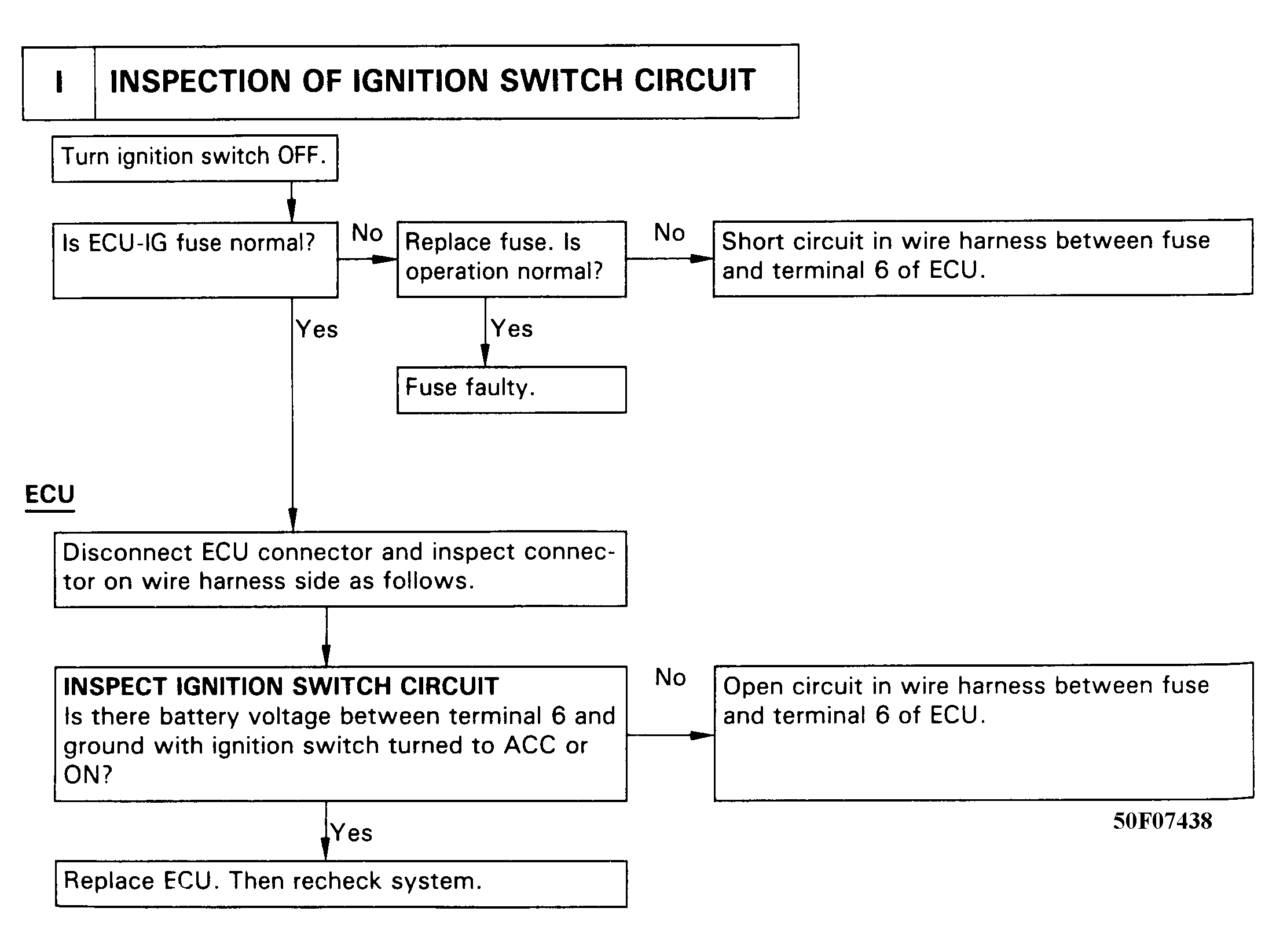

Fig 1: Test I, Inspection of Ignition Switch Circuit

G50F07438

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
