Test C, Inspection Of Front Door Unlock Detection Switch Circuit

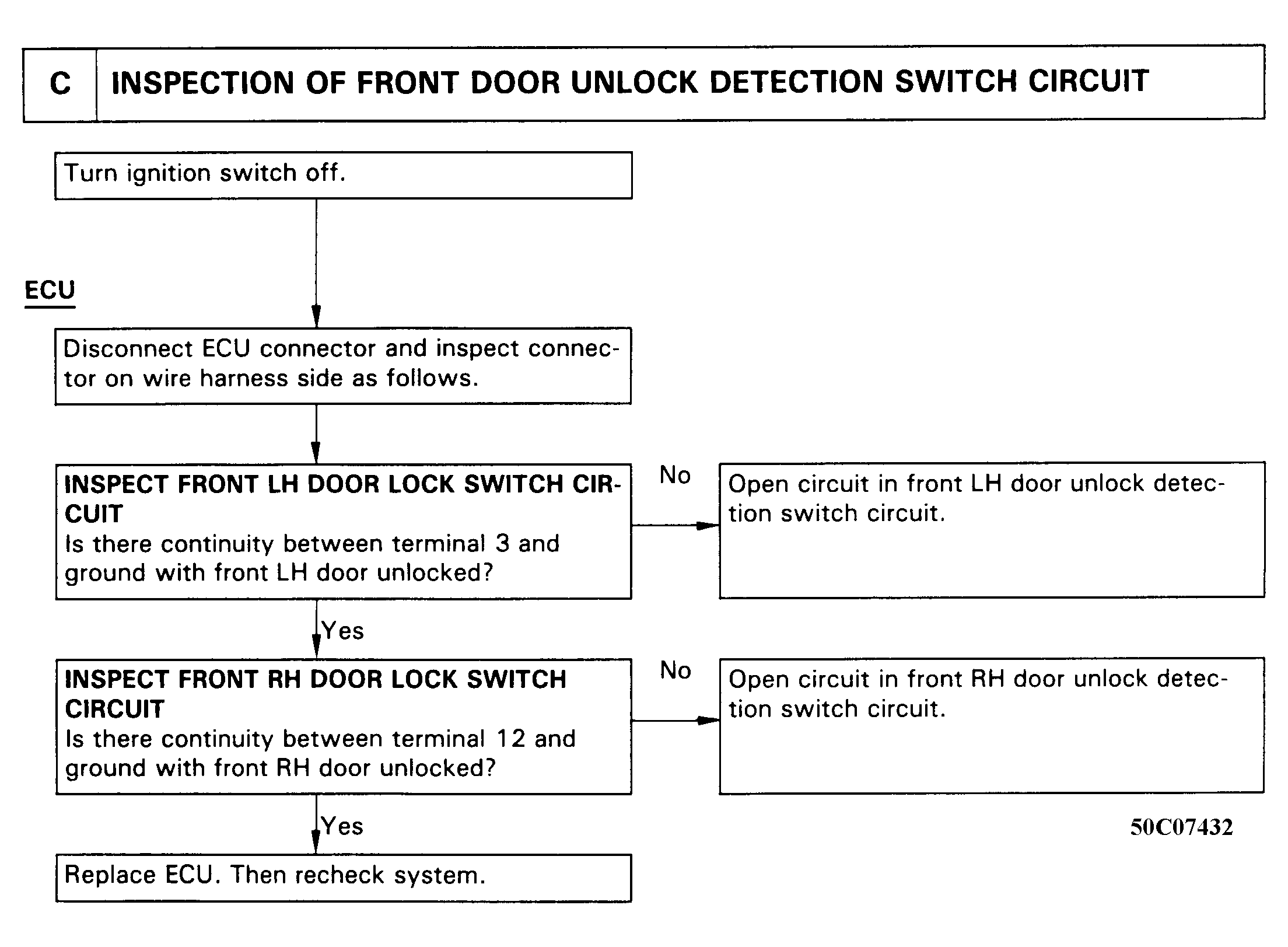

Fig 1: Test C, Inspection of Front Door Unlock Detection Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
