Test B, Inspection Of Indicator Light Circuit
Test B, Inspection Of Indicator Light Circuit

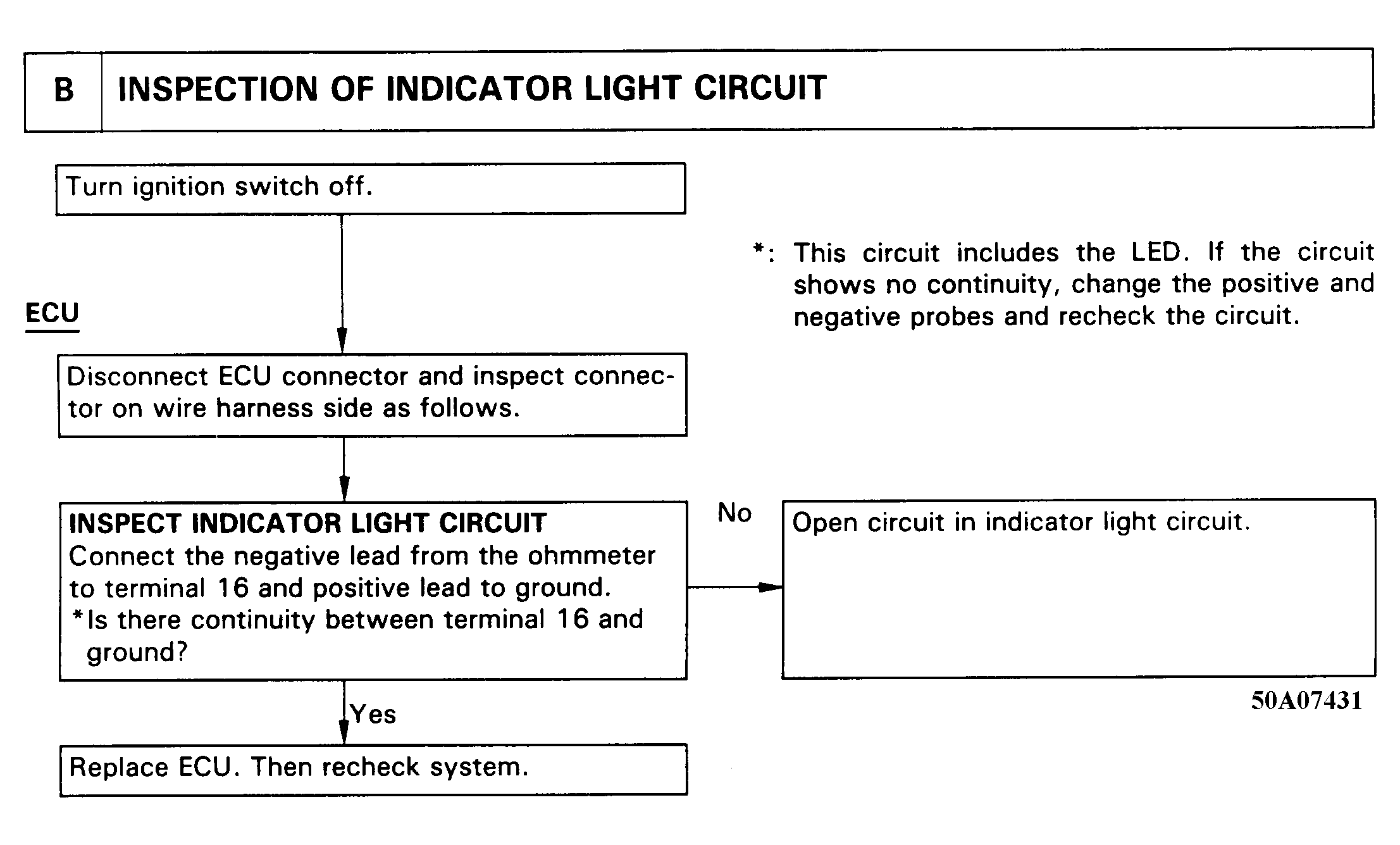

Fig 1: Test B, Inspection of Indicator Light Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
