Test 2 - Ecu Power Source (4A-F)
Test 2 - Ecu Power Source (4A-F)

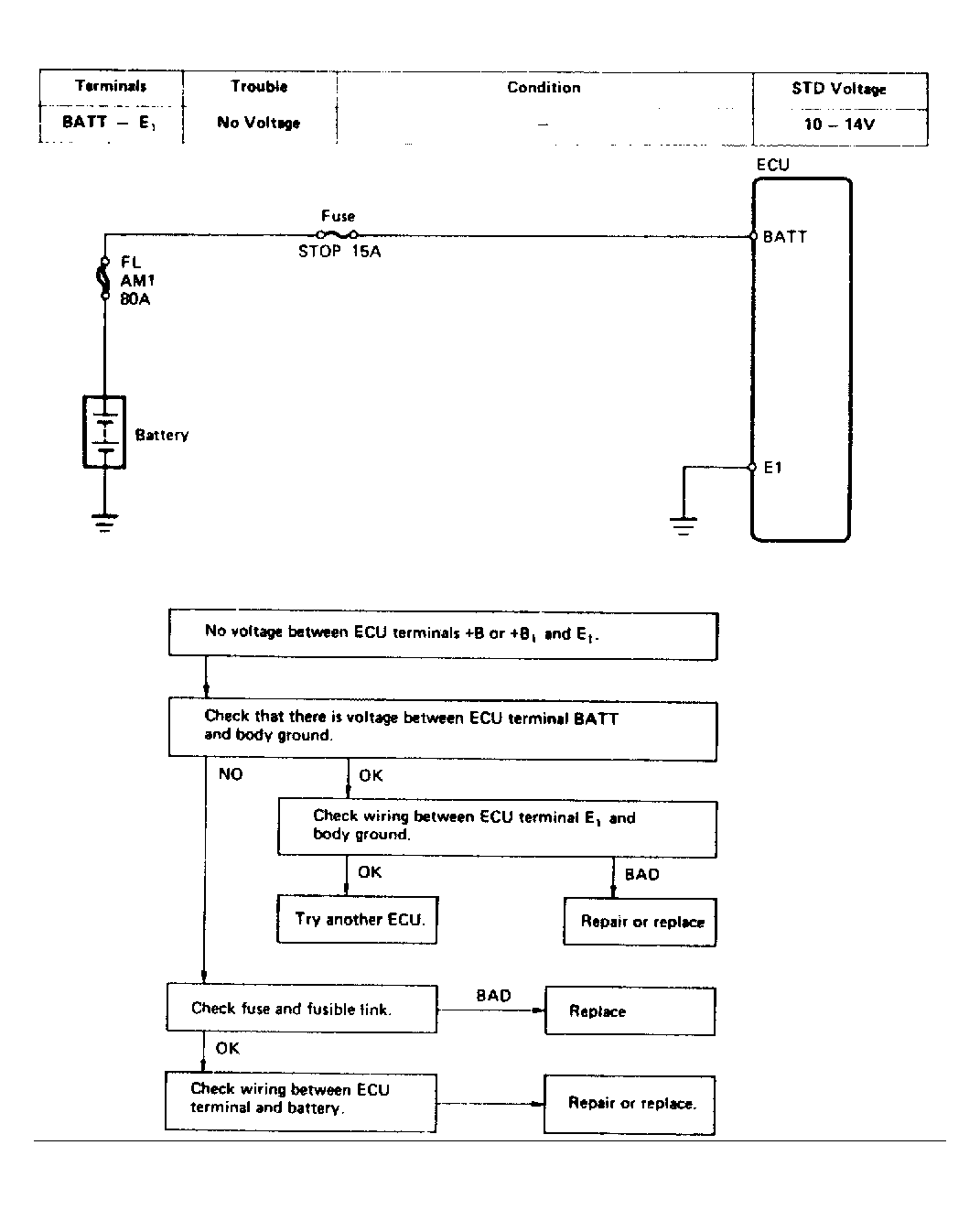

Fig 1: 4A-F Test No. 2 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
