Power Source Test
- Unplug high-tension wires from ignition coils. Unplug ignition coil connectors. Turn ignition on.

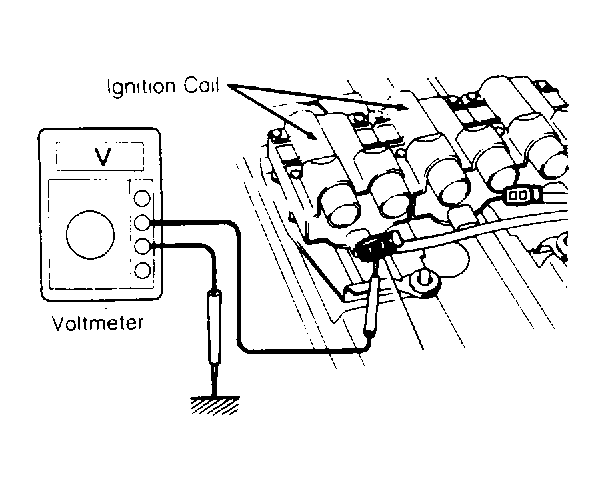

- Measure voltage between terminal No. 1 and ground. See Fig 1. There should be 12 volts present with ignition on. If not, check wiring.
