No. 17 Test A/C System Circuit Test

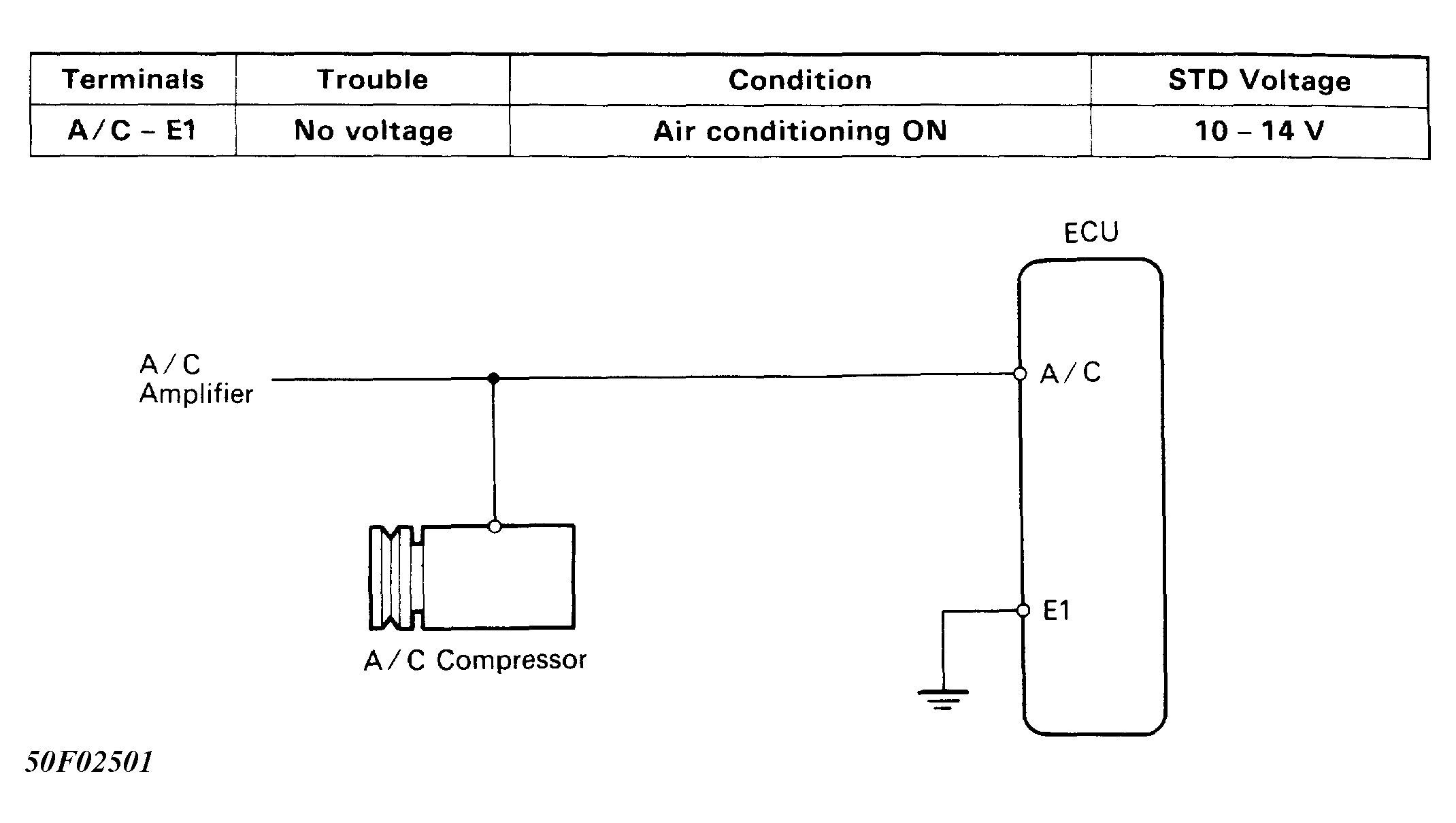

Fig 1: No. 17 Test A/C System Circuit Test, Schematic
G50F02501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

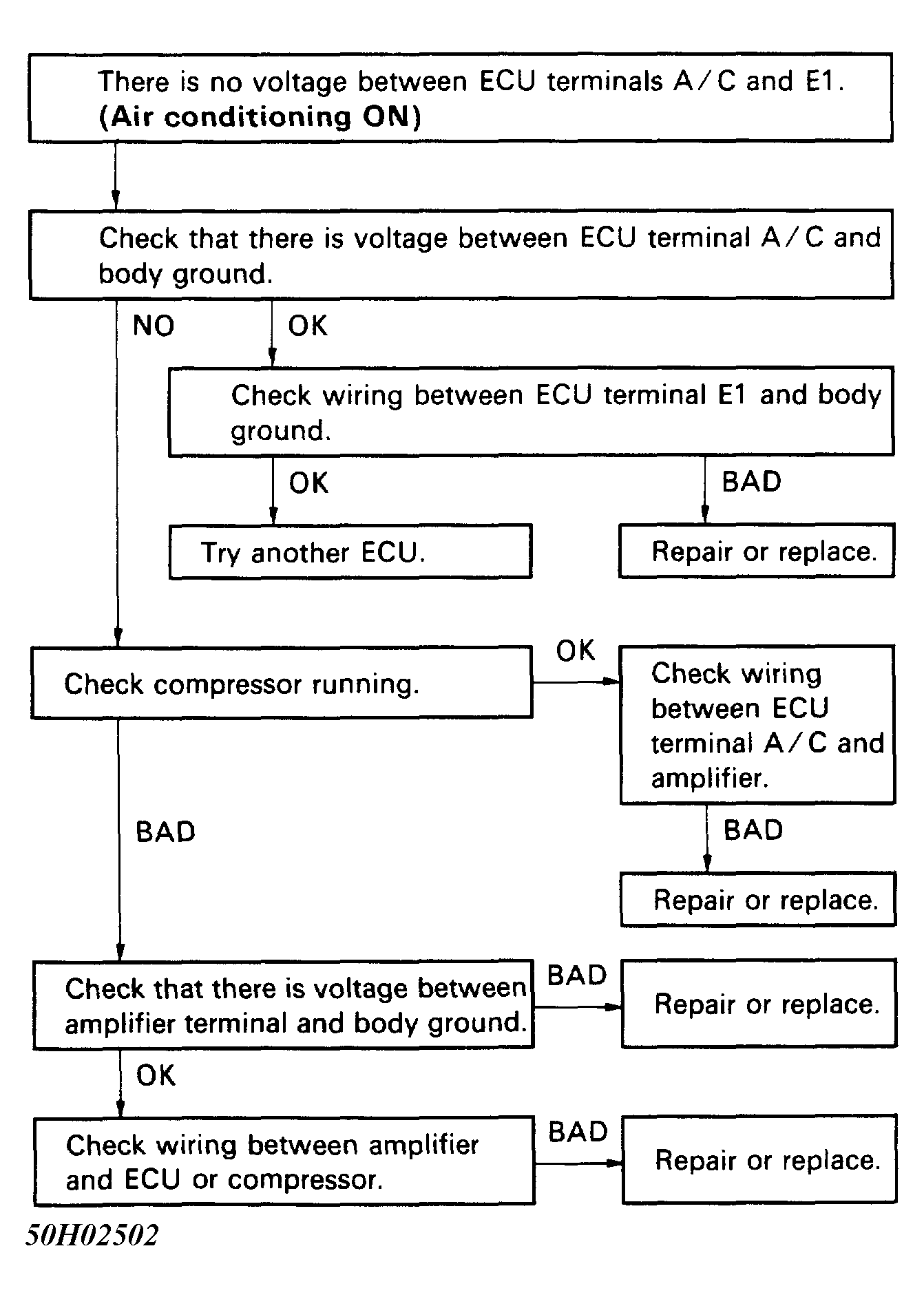

Fig 2: No. 17 Test A/C System Circuit Test, Flow Chart
G50H02502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
