Code 22 - Water Temperature Switch Signal DIANOSIS

There is an open or short circuit in the water temperature switch signal (TWS1, TWS2).

Trouble Area:

• No. 1 or No. 2 water temperature switch circuit
• No. 1 or No. 2 water temperature switches
• ECU

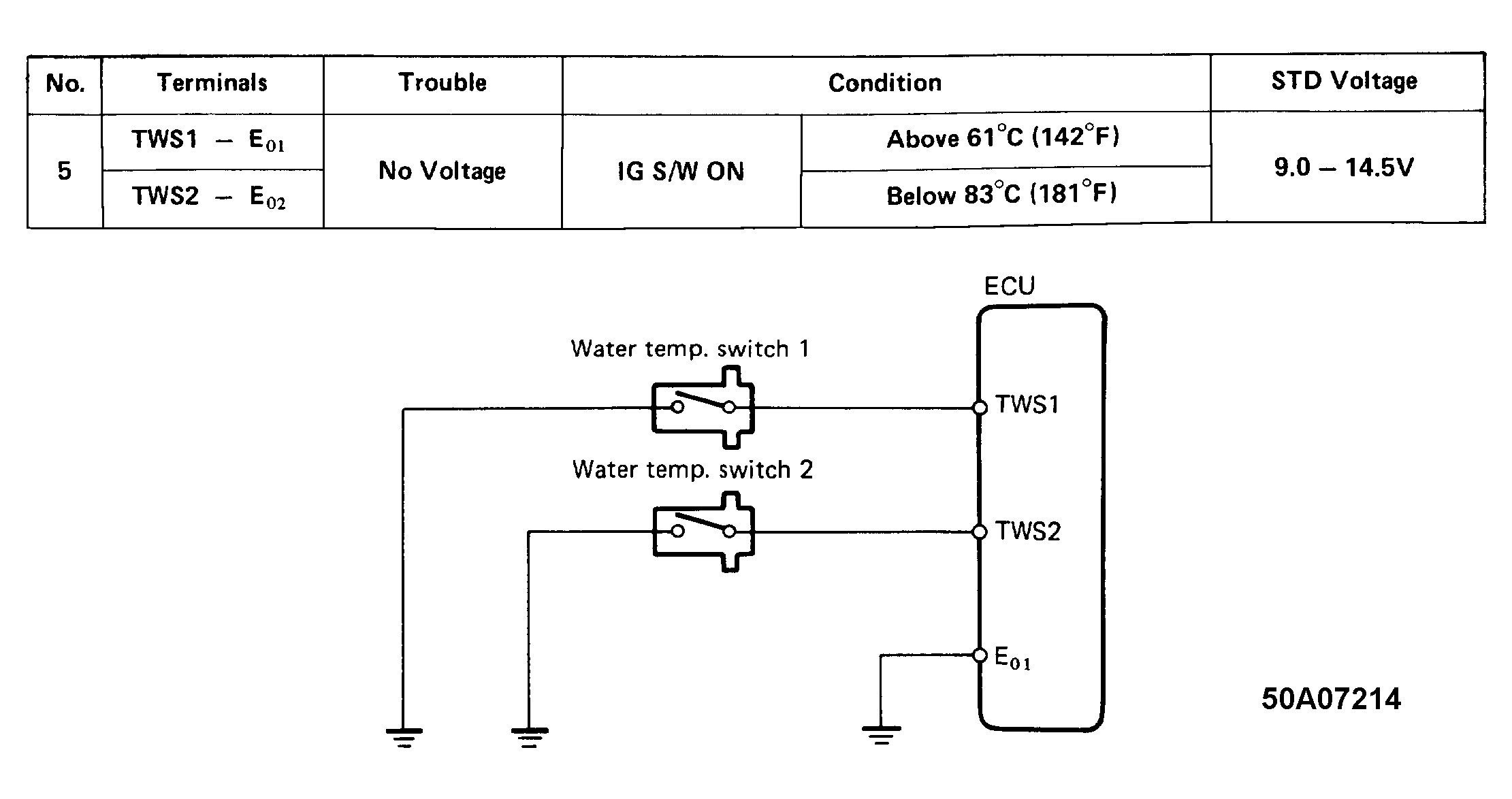

Fig 1: Code 22 - Water Temperature Switch Signal Dianosis Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

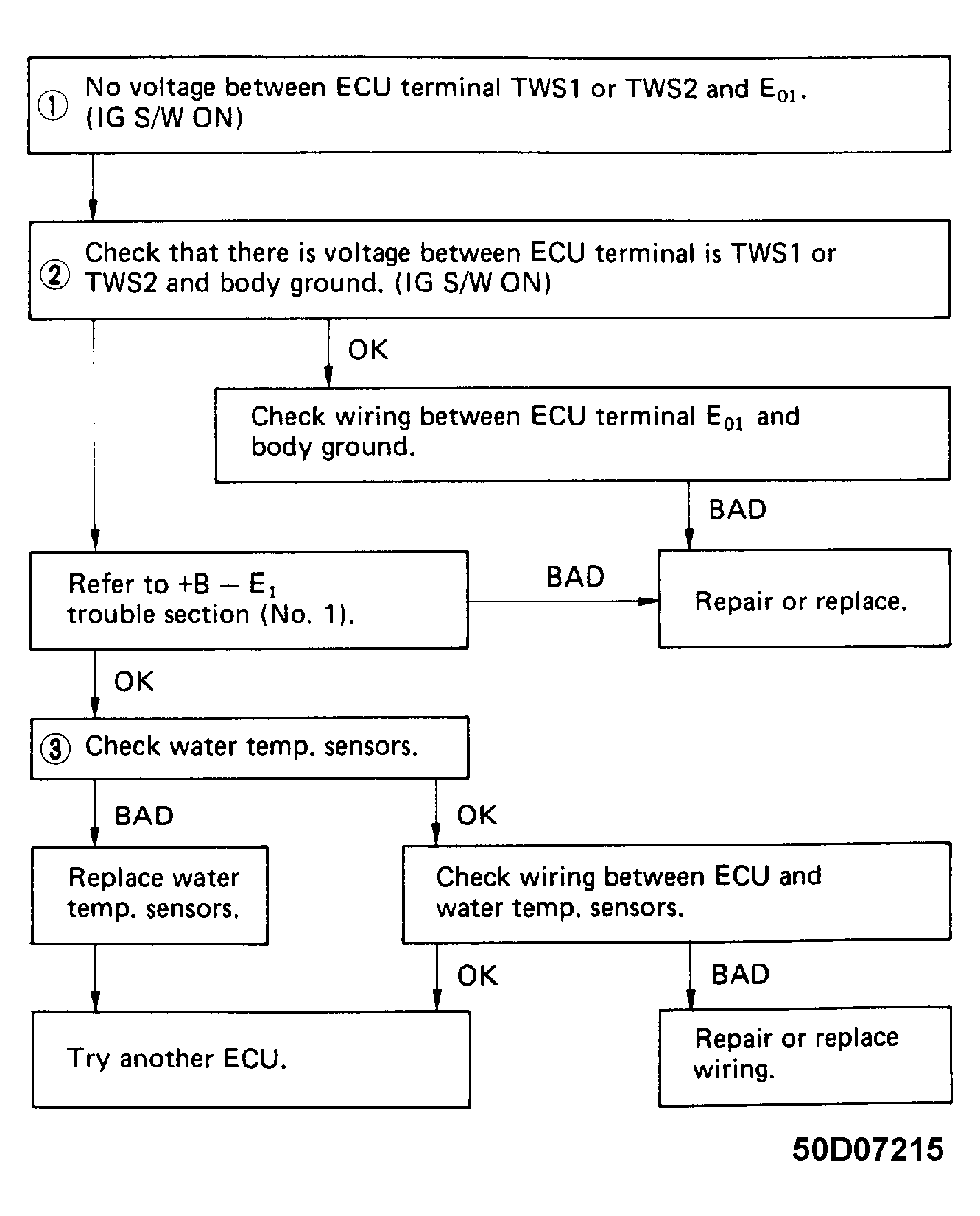

Fig 2: Code 22 - Water Temperature Sw. Signal Dianosis Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
