Wiring Diagrams

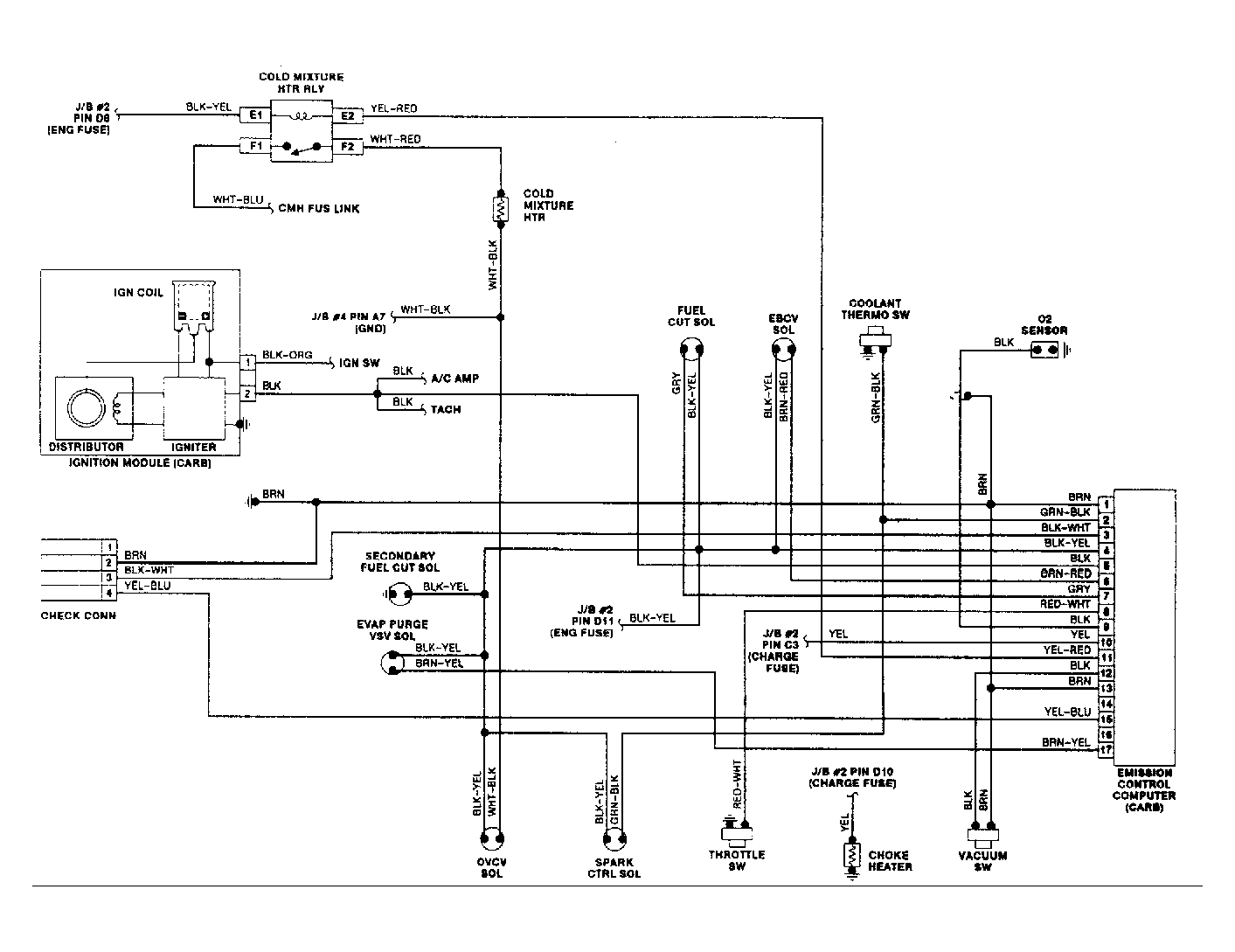

Fig 1: Corolla FX Wiring Diagram
G95474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

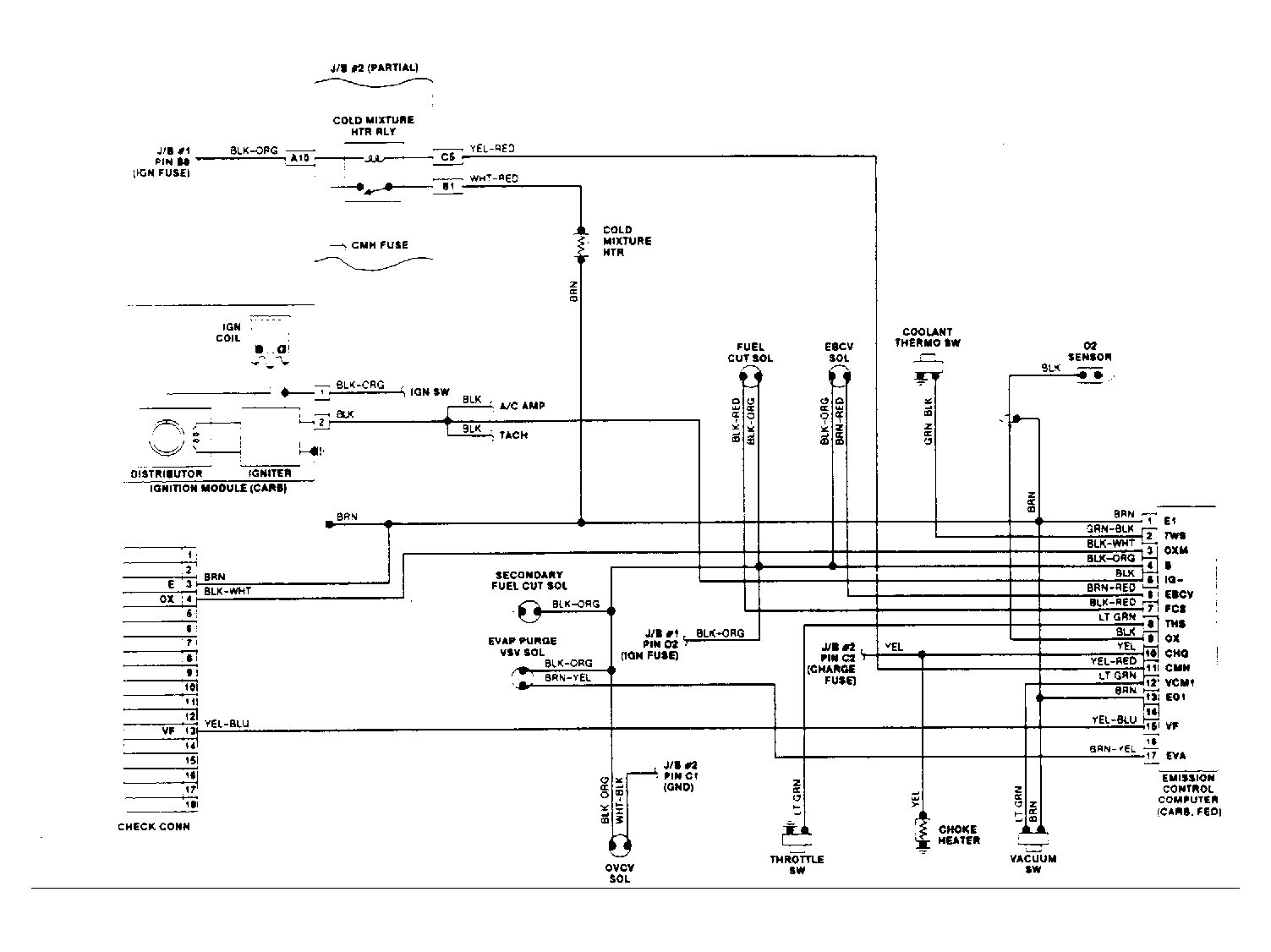

Fig 2: Corolla (Federal) Wiring Diagram
G95475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

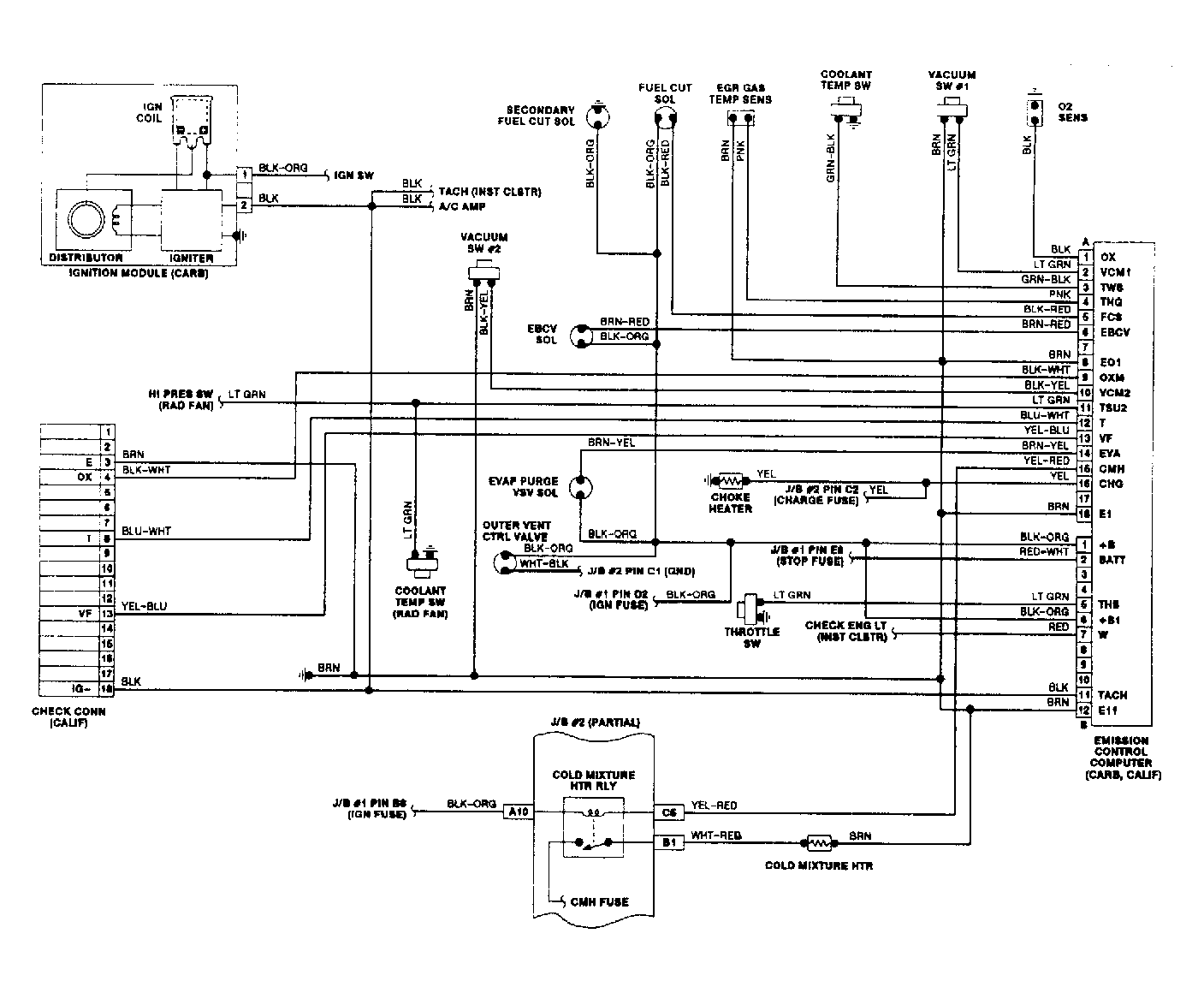

Fig 3: Corolla (California) Wiring Diagram
G95476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
