Code 12 - Rpm Signal DIANOSIS

No signal to ECU within serveral seconds after engine is cranked (TAC).

Trouble Area:

• Ignition coil circuit
• Ignition coil
• Ignition circuit
• Igniter
• ECU

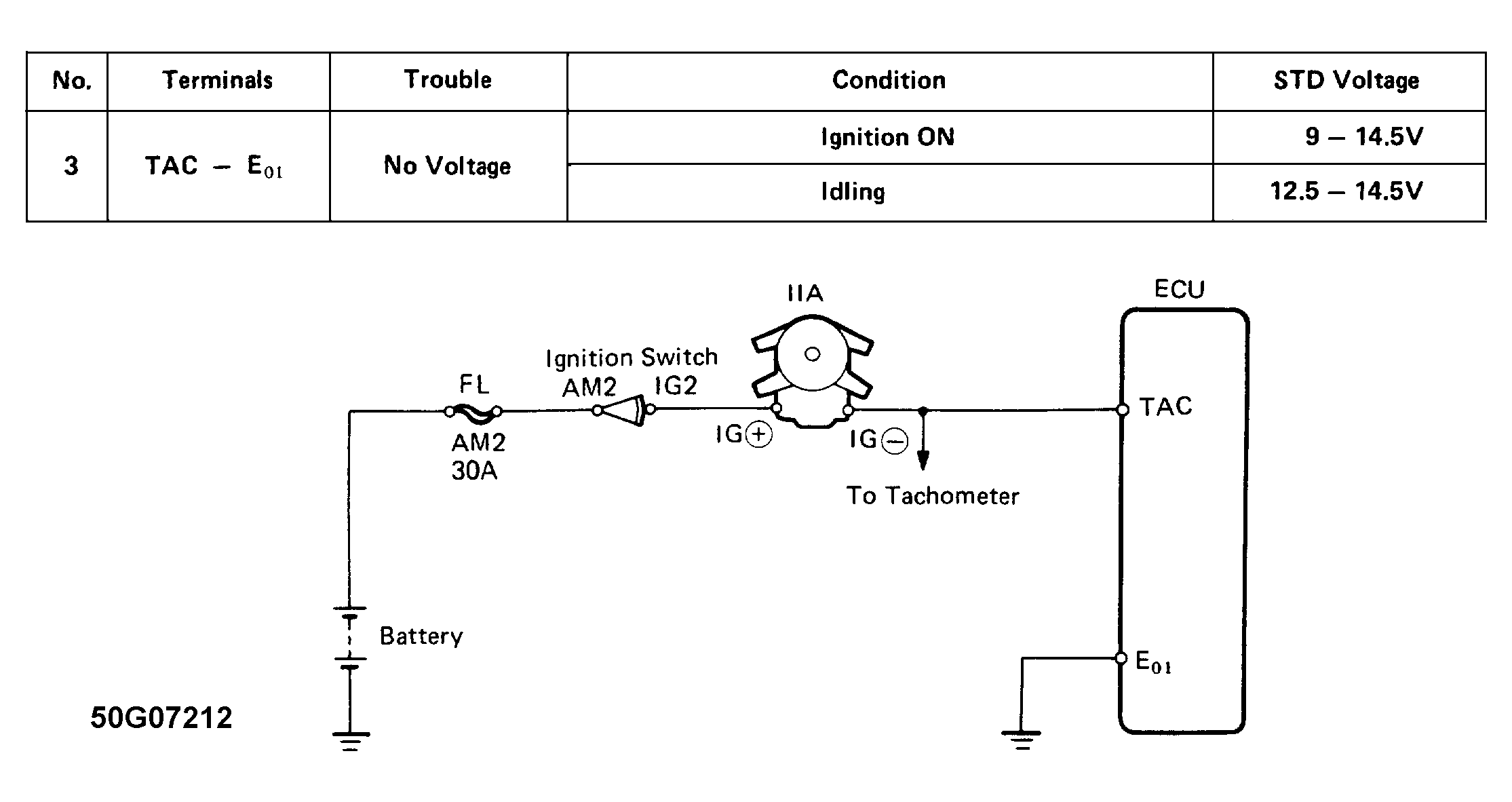

Fig 1: Code 12 - RPM Signal Dianosis Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

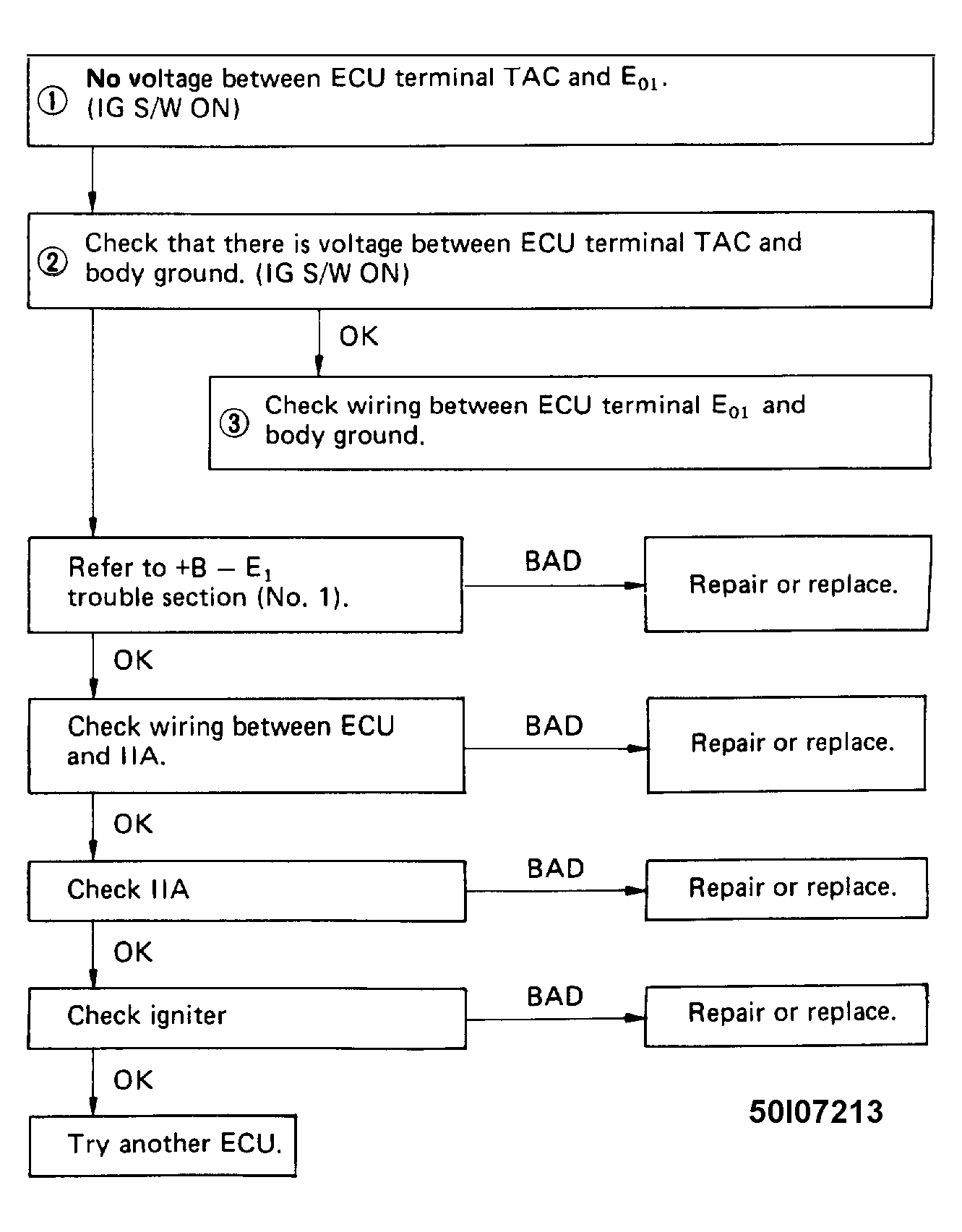

Fig 2: Code 12 - RPM Signal Dianosis Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
