Wiring Diagrams

Fig 1: Wiring Diagram (Camry 4-Cylinder)

G95443

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Wiring Diagram (Camry V6)

G95444

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Wiring Diagram (Celica 3S-FE Engine)

G95445

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Wiring Diagram (Celica 3S-GE Engine)

G95446

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Wiring Diagram (Celica 3S-GTE Engine)

G95447

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Wiring Diagram (Corolla - Except FX-16)

G95448

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Wiring Diagram (Corolla FX-16)

G95449

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Wiring Diagram (Cressida)

G95450

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Wiring Diagram (Land Cruiser)

G95451

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

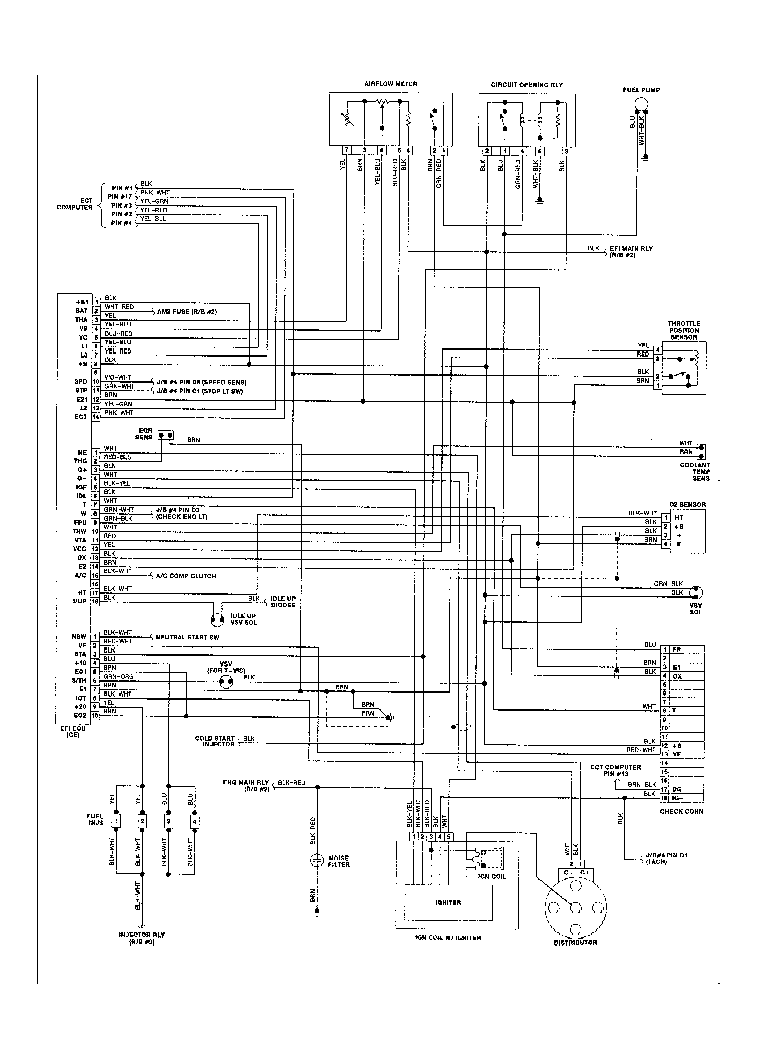

Fig 10: Wiring Diagram (MR2 4A-GE Engine)

G95452

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Wiring Diagram (Pickup & 4Runner 4-Cylinder)

G95453

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Wiring Diagram (Pickup & 4Runner V6)

G95454

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

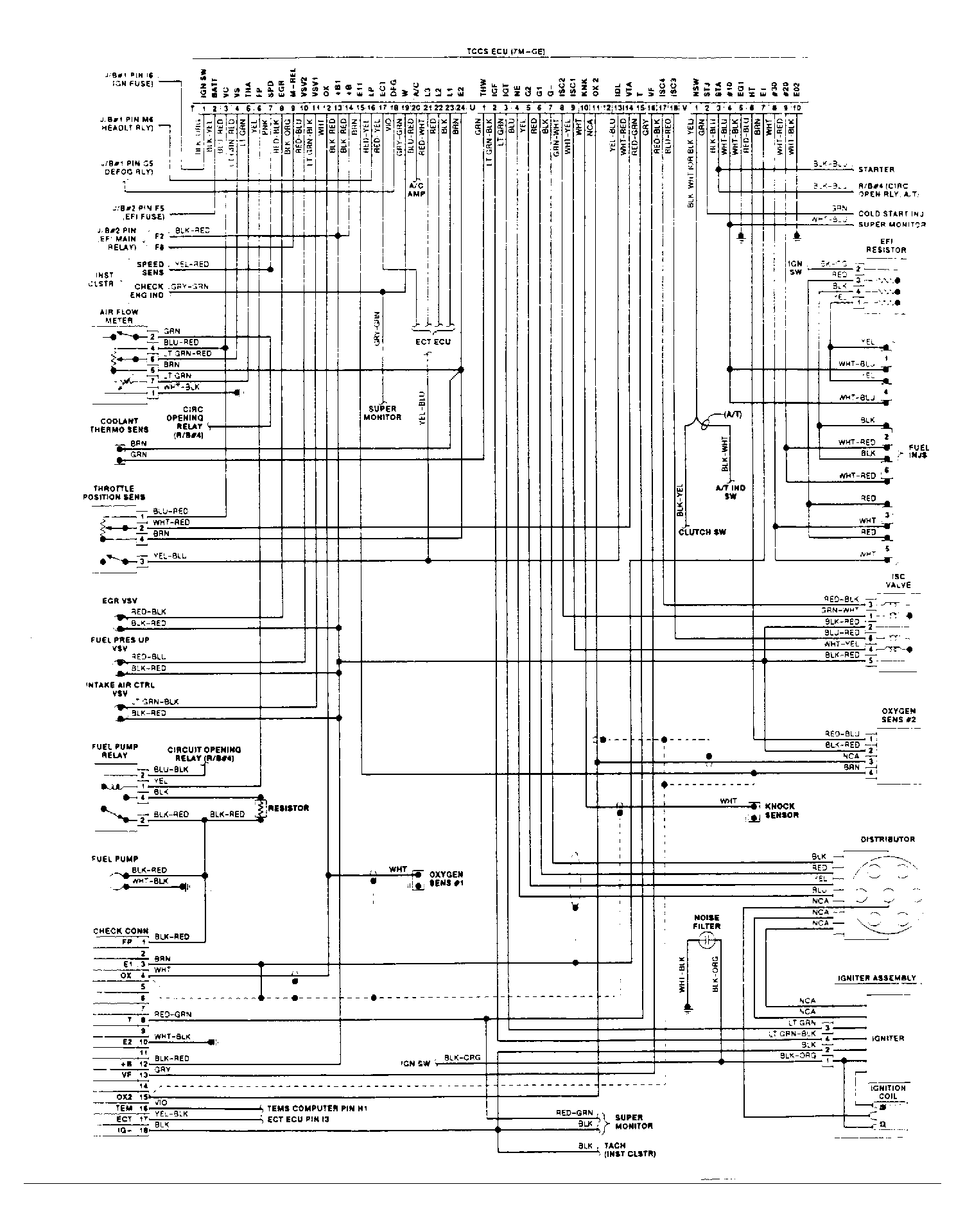

Fig 13: Wiring Diagram (Supra 7M-GE Engine)

G95455

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

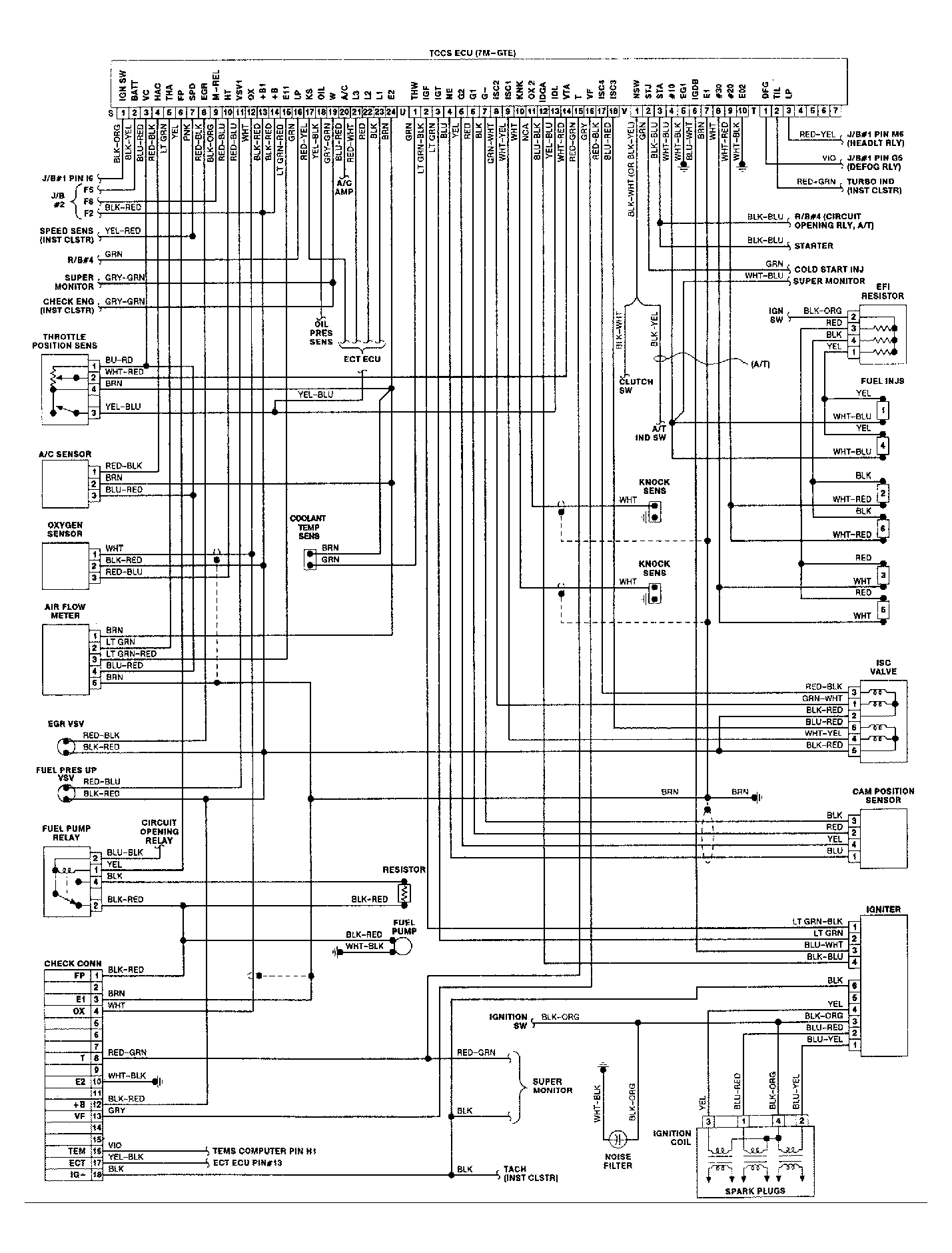

Fig 14: Wiring Diagram (Supra 7M-GTE Engine)

G95456

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

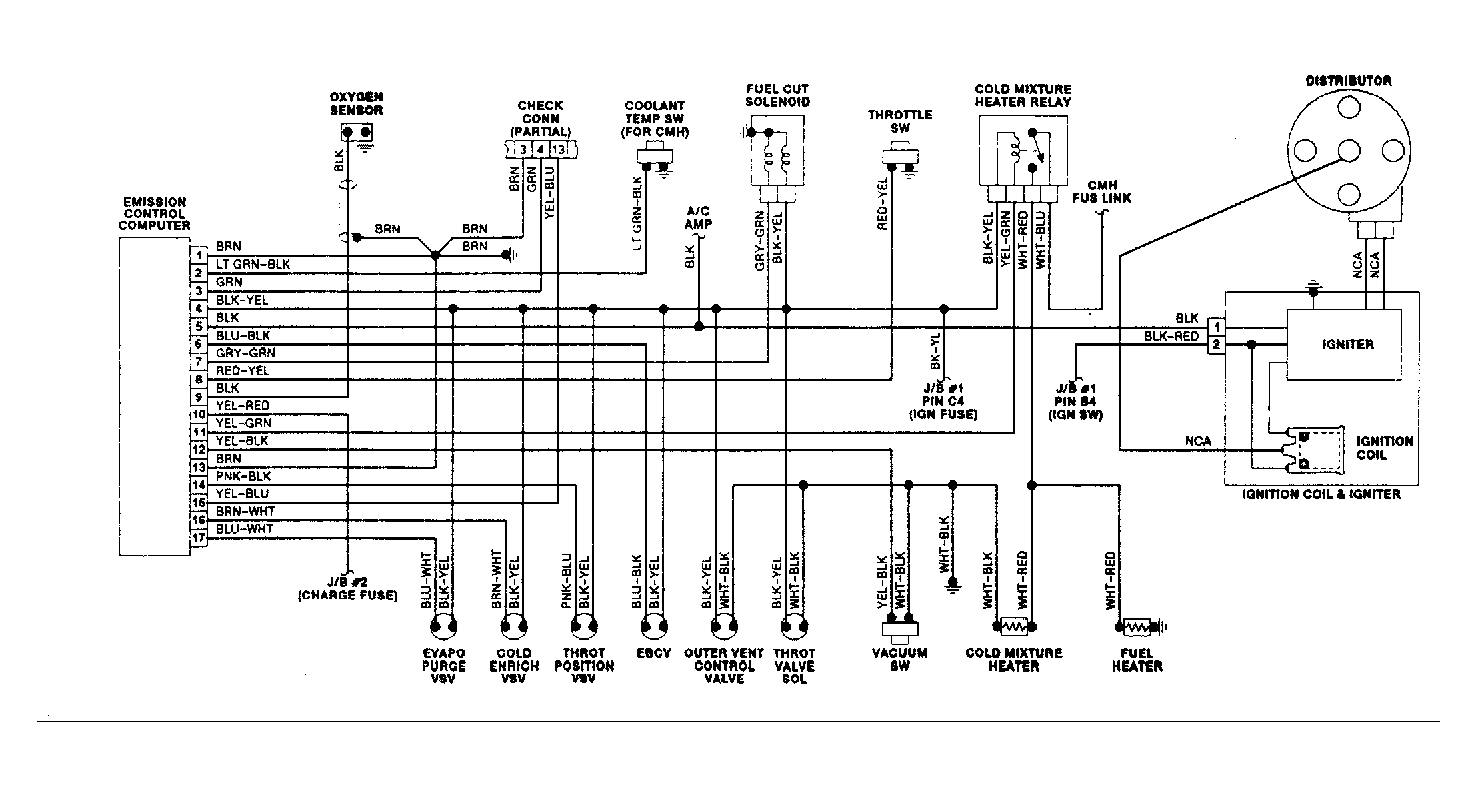

Fig 15: Wiring Diagram (Tercel Sedan)

G95479

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

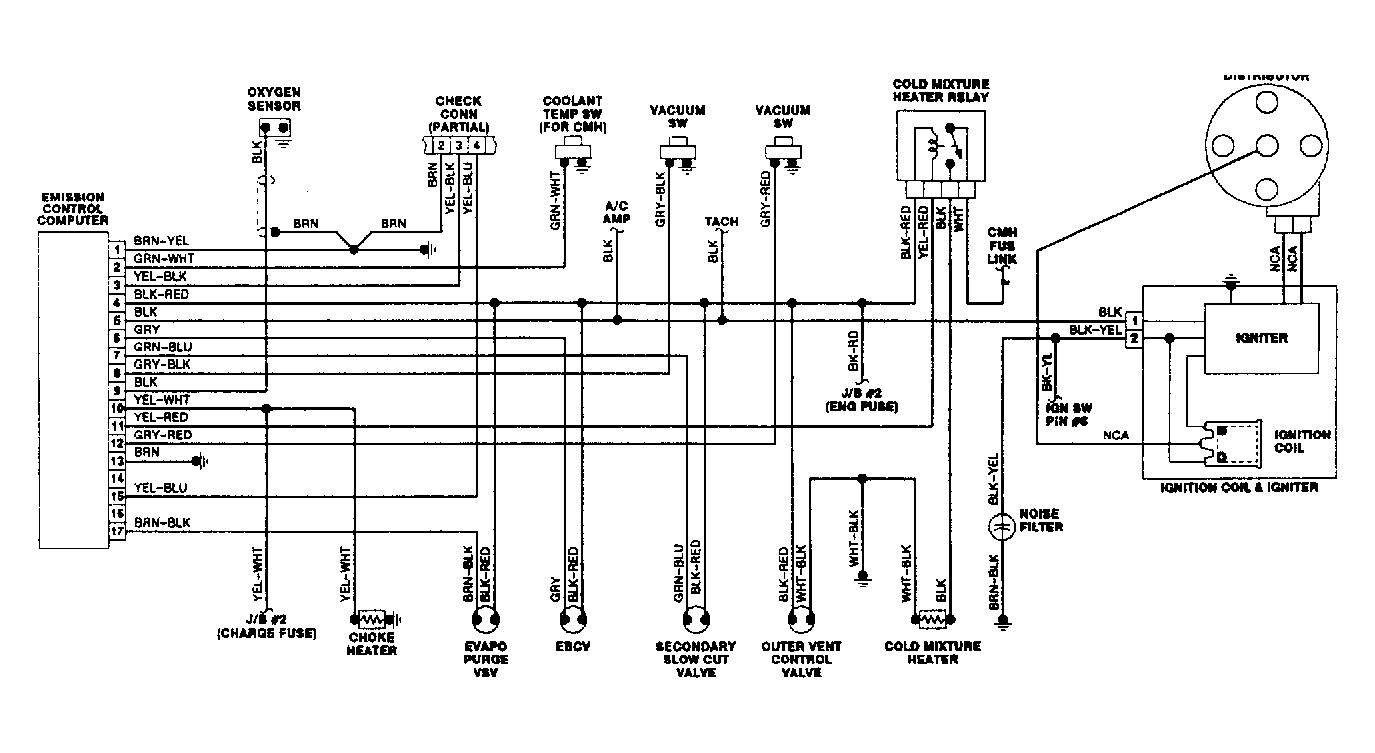

Fig 16: Wiring Diagram (Tercel Wagon)

G95480

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Wiring Diagram (Van)

G95457

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
