4Runner Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Computer Control System
>>
Diagnostic Charts
>>
No. 4 Test, Code 22 (Code 4 On Turbo), Coolant Temperature Sensor Signal
No. 4 Test, Code 22 (Code 4 On Turbo), Coolant Temperature Sensor Signal

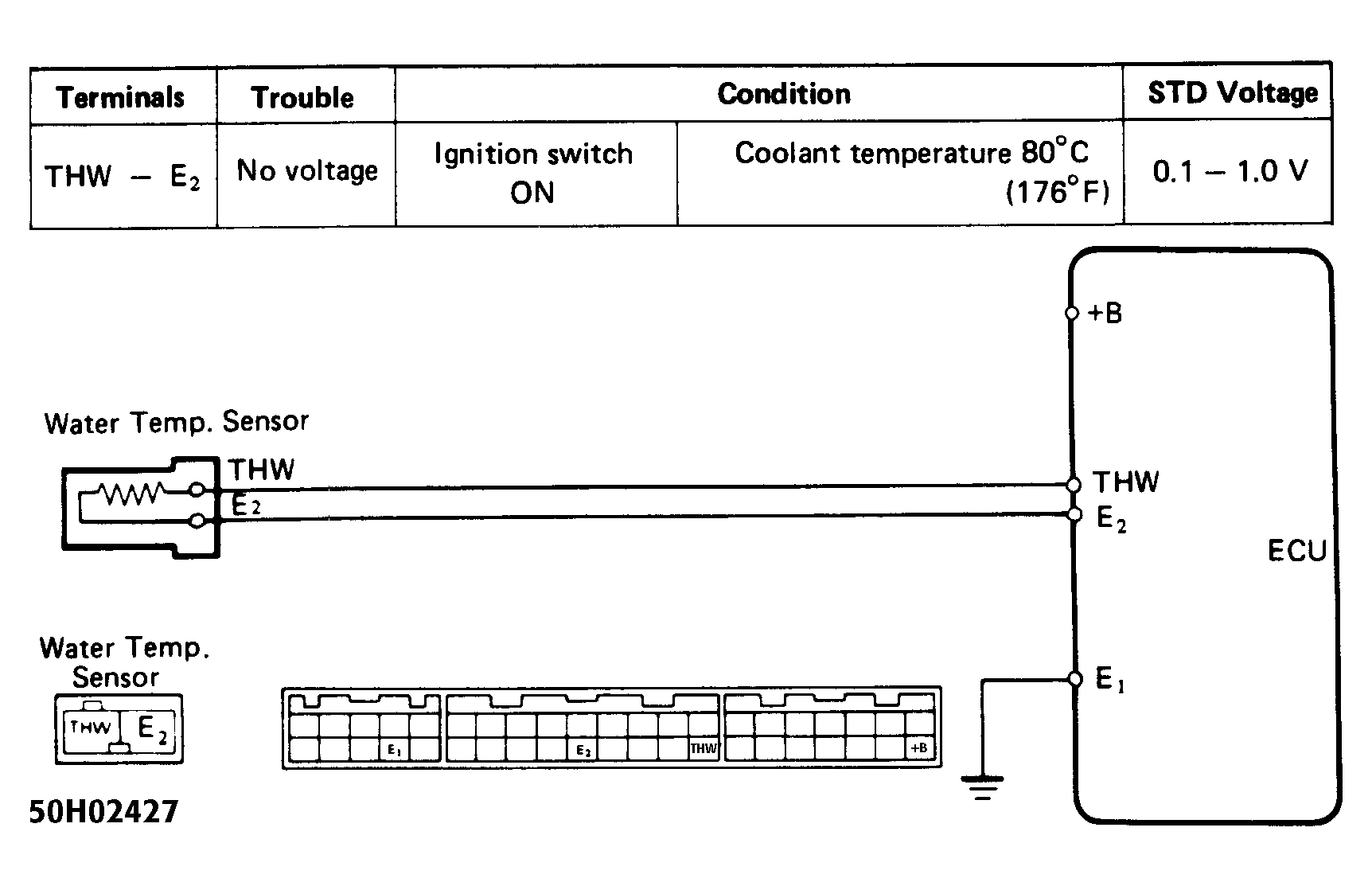

Fig 1: No. 4 Test Schematic, Code 22 (Code 4 on Turbo), Coolant Temp. Sensor Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

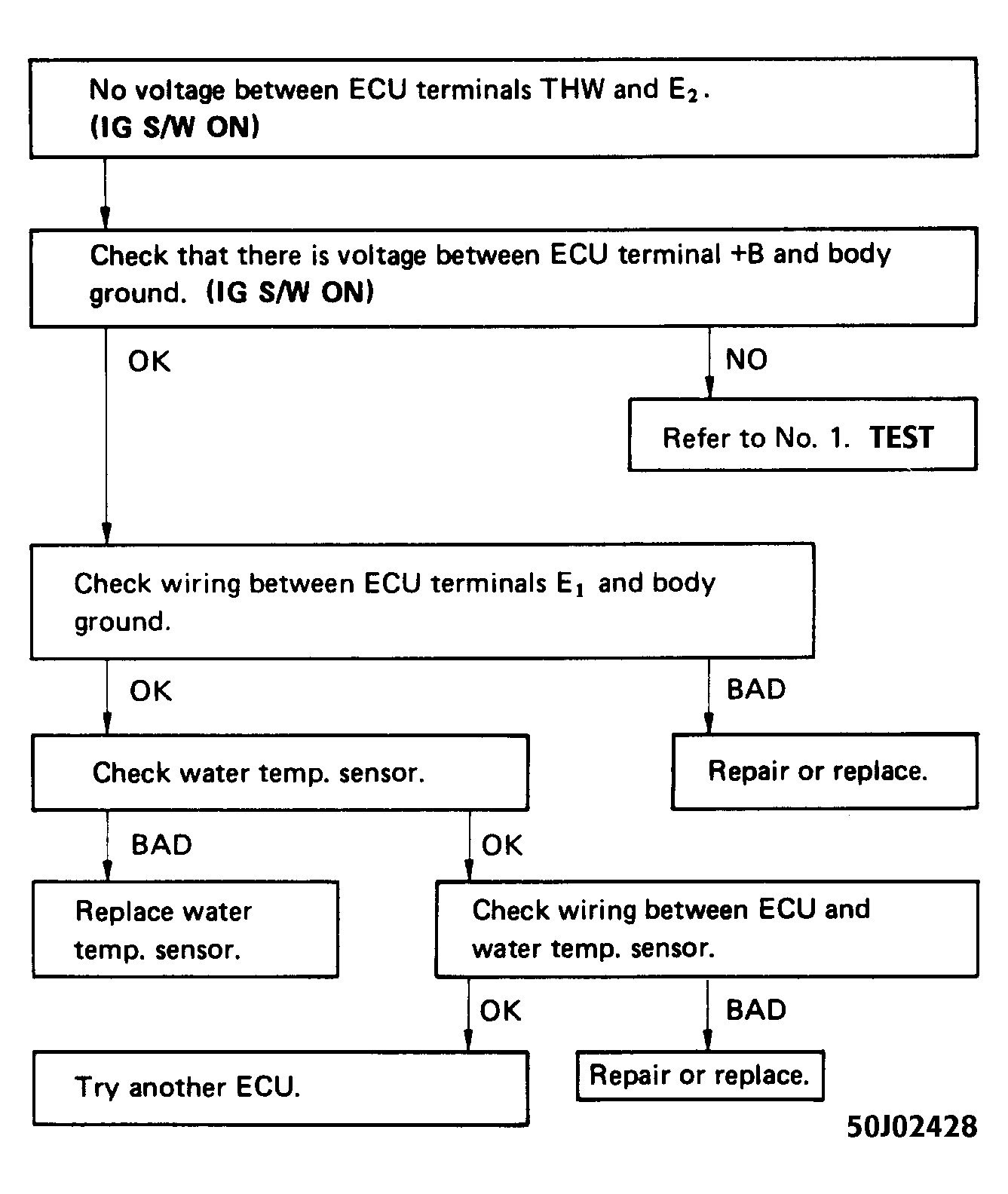

Fig 2: No. 4 Test Flow Chart, Code 22 (Code 4 on Turbo), Coolant Temp. Sensor Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
