No. 2 Test, Code 12, 13, 14 (Code 3, 6 On Turbo), Rpm & Ignition Signal

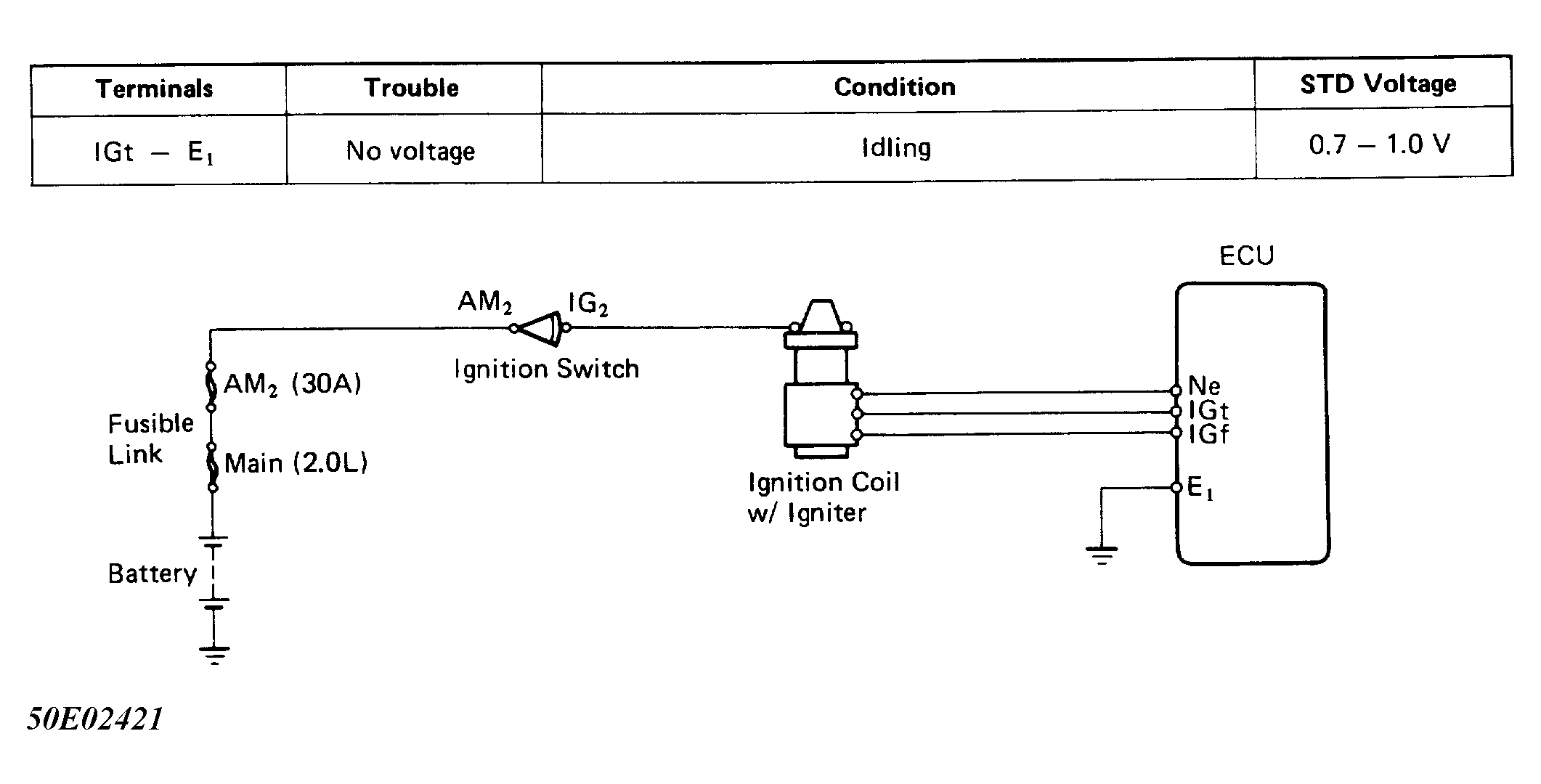

Fig 1: No. 2 Test Schematic, Code 12, 13, 14 (Code 3, 6 on Turbo), RPM & Ignition Signal
G50E02421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

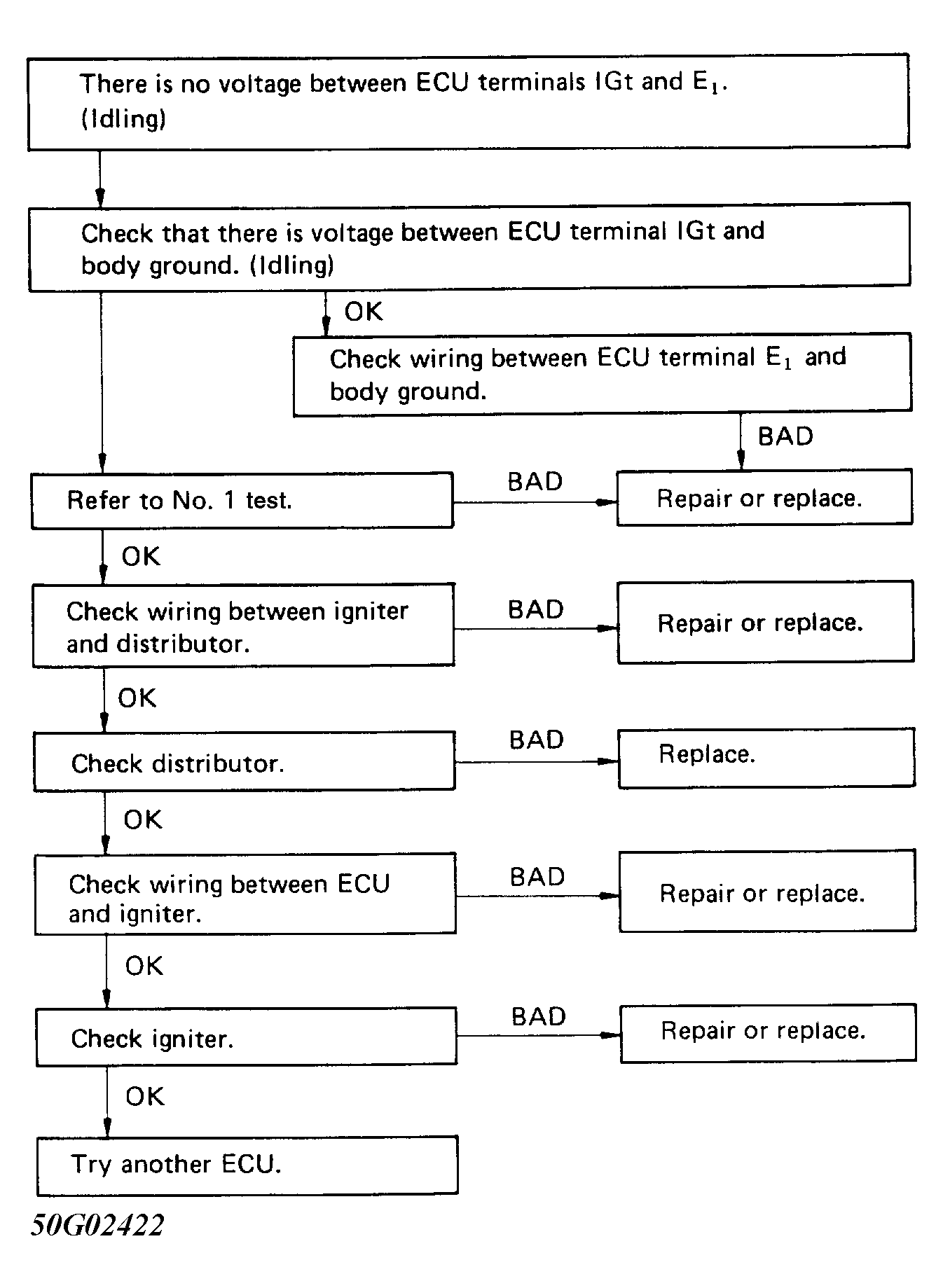

Fig 2: No. 2 Test Flow Chart, Code 12, 13, 14 (Code 3, 6 on Turbo), RPM & Ignition Signal
G50G02422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
