Trouble Code 5 Oxygen Sensor

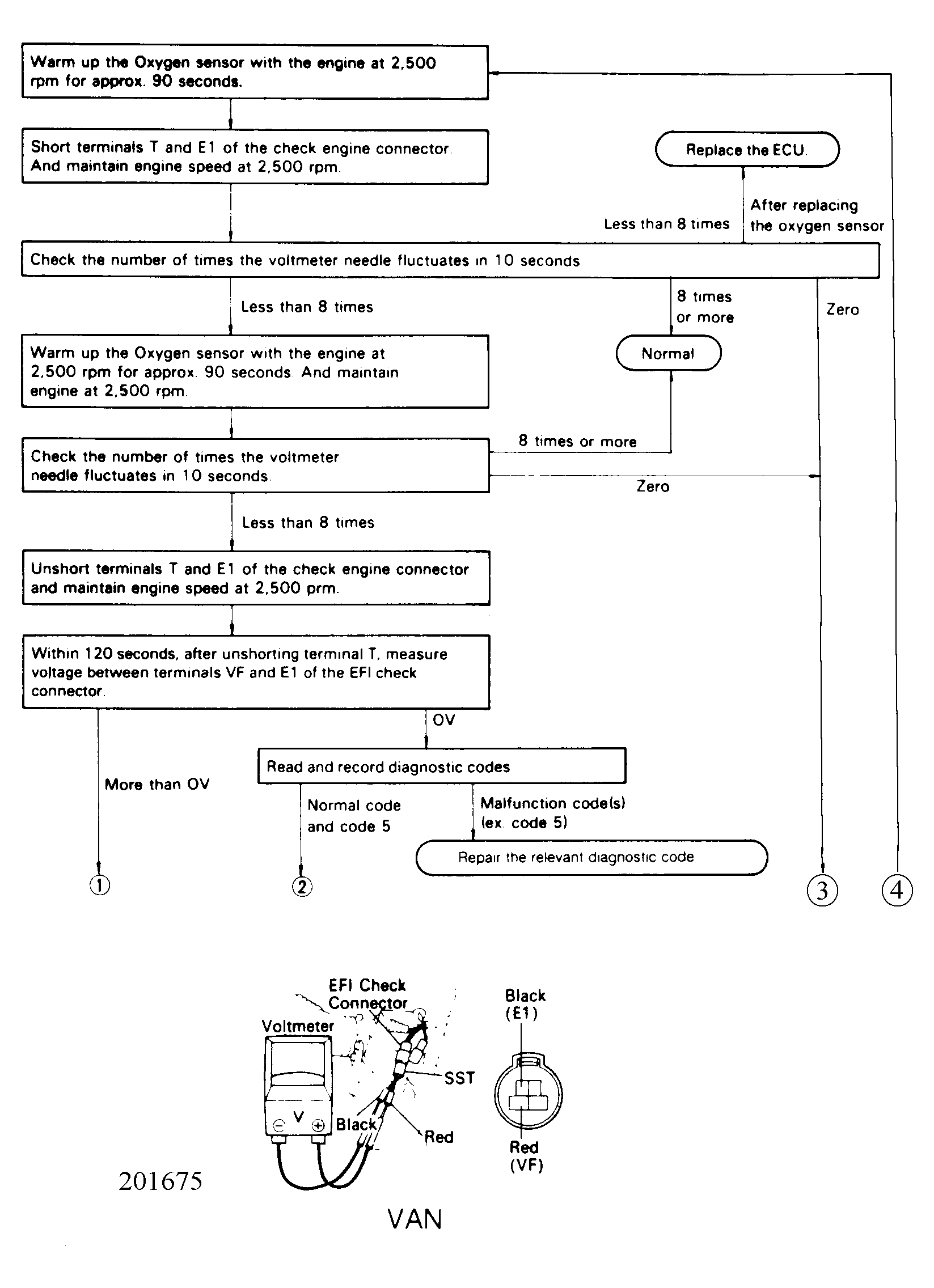

Fig 1: Trouble Code 5 Oxygen Sensor Part 1 of 3
G201675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

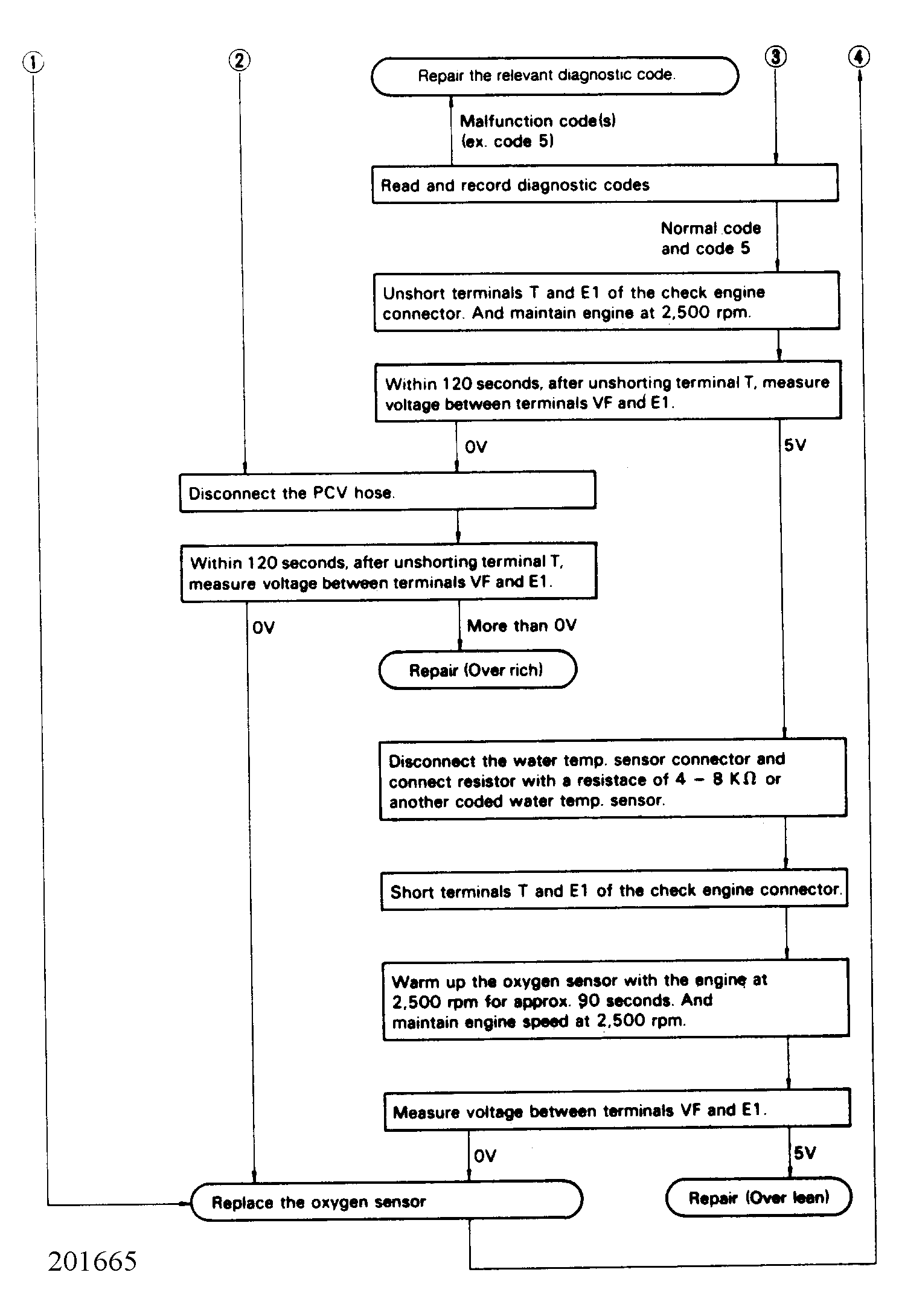

Fig 2: Trouble Code 5 Oxygen Sensor Part 2 of 3
G201665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Trouble Code 5 Oxygen Sensor Part 3 of 3
G62055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
