Fuel-Cut Rpm

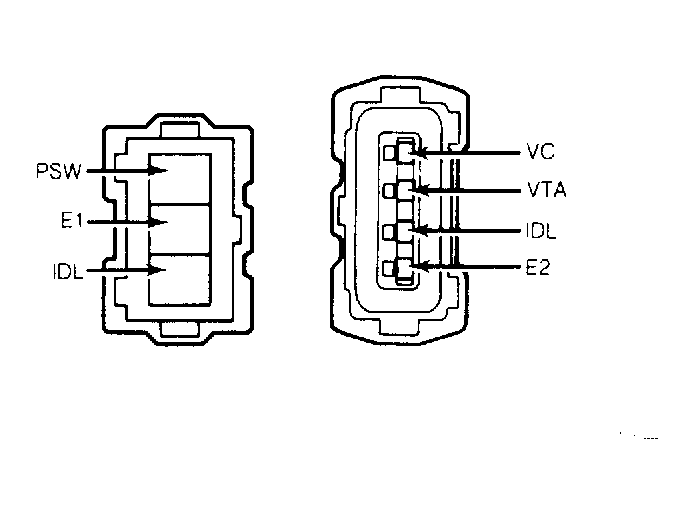

Connect tachometer to engine. Allow engine to reach normal operating temperature. Disconnect throttle position sensor. Using a jumper wire, short-circuit terminals IDL with terminal E1 or E2 of the connector. See Fig 1. Gradually raise engine speed and check that there is fluctuation between fuel-cut and fuel return points. See FUEL-CUT RPM SPECIFICATIONS chart.
