Carburetor - 1-Bbl (Sedan): Adjustments: Unloader

Apply vacuum to throttle positioner diaphragms. With throttle valve fully opened, measure piston lift stroke. Standard stroke is at least .31" (8 mm). See Fig 1.

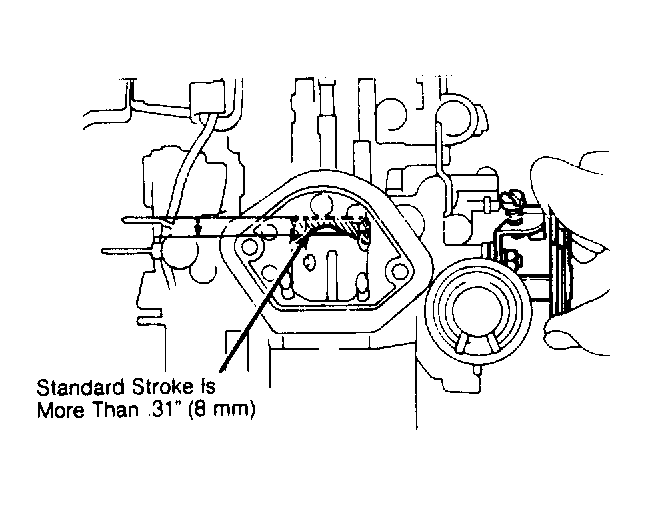

Fig 1: Checking Unloader

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
