Float Drop

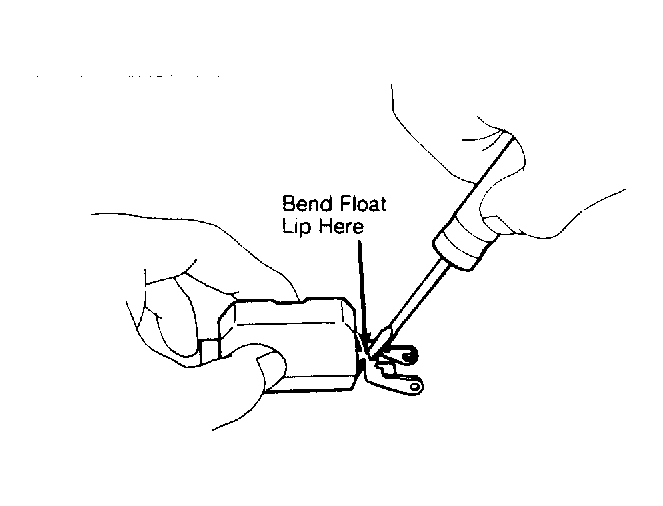

Lift up float. Using Wire Gauge Set (09240-00020), check clearance between needle valve plunger and float lip. Proper lower position float level is .035-.043" (.9-1.1 mm). To adjust, bend portion of float tip. See Fig 1.
