Service Point Locations
Service Point Locations

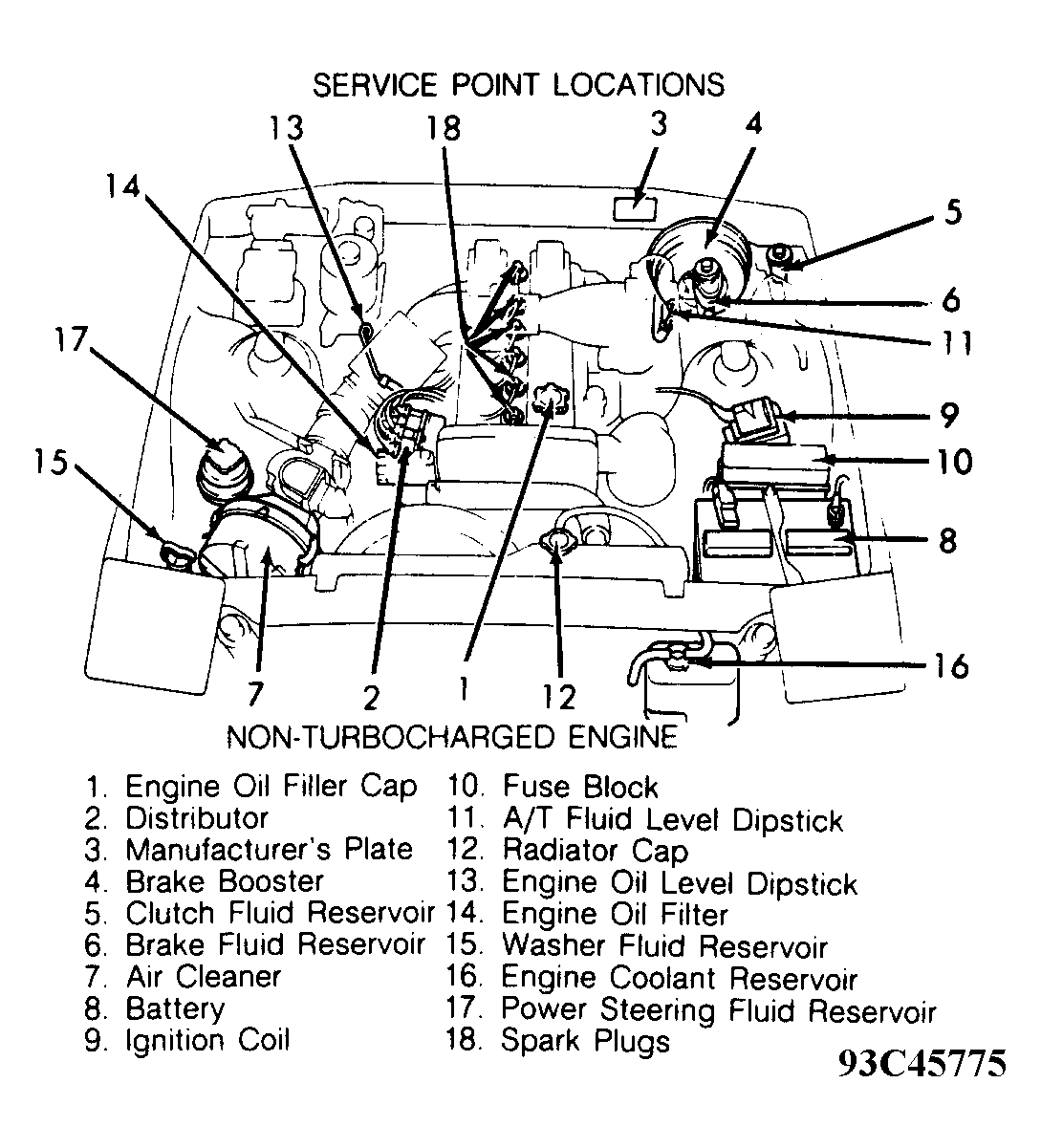

Fig 1: Service Point Locations (Non-Turbocharged Engine)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

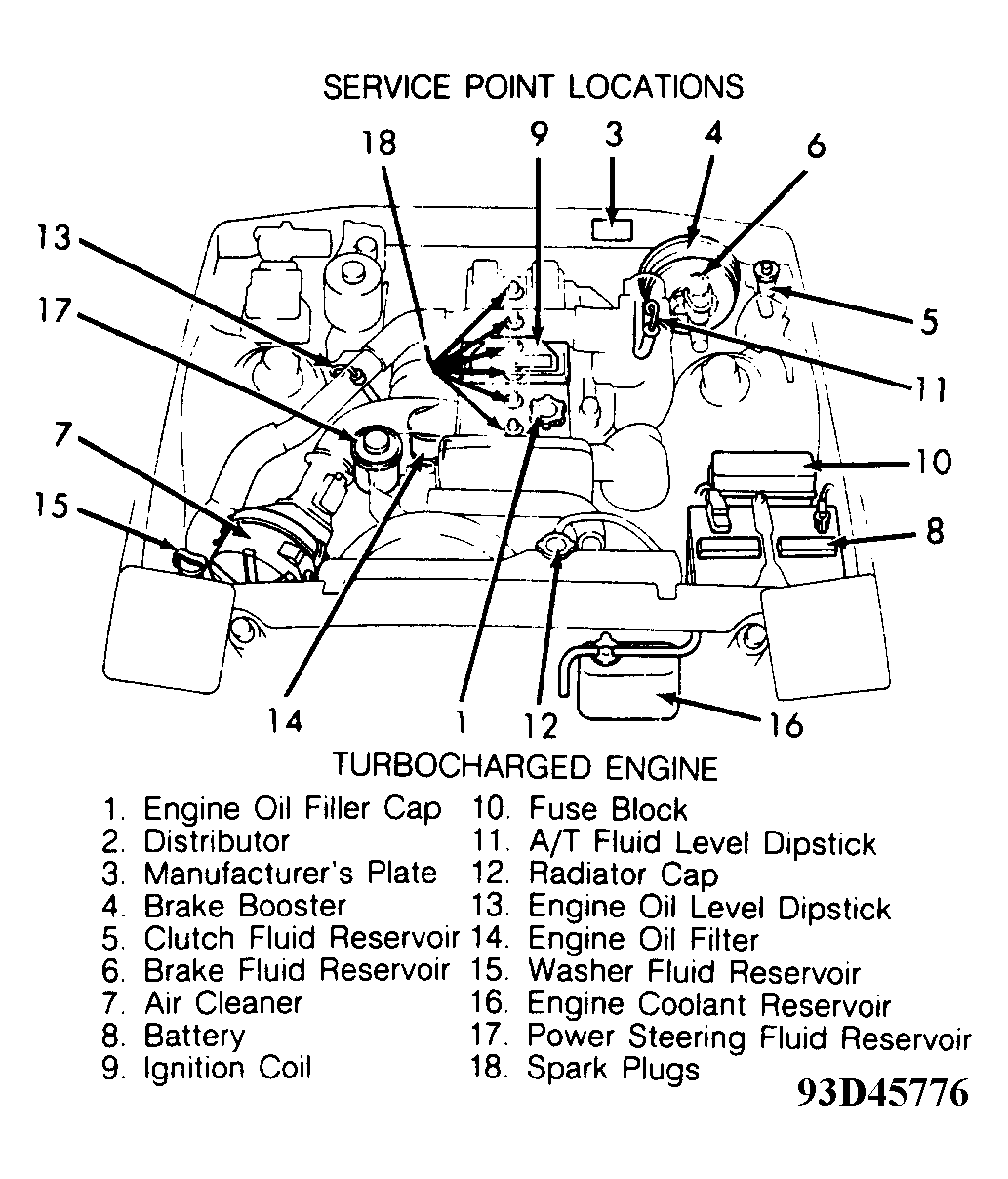

Fig 2: Service Point Locations (Turbocharged Engine)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
